CARBURETOR
LS650P SAVAGE 2002 (L2) USA (E03)

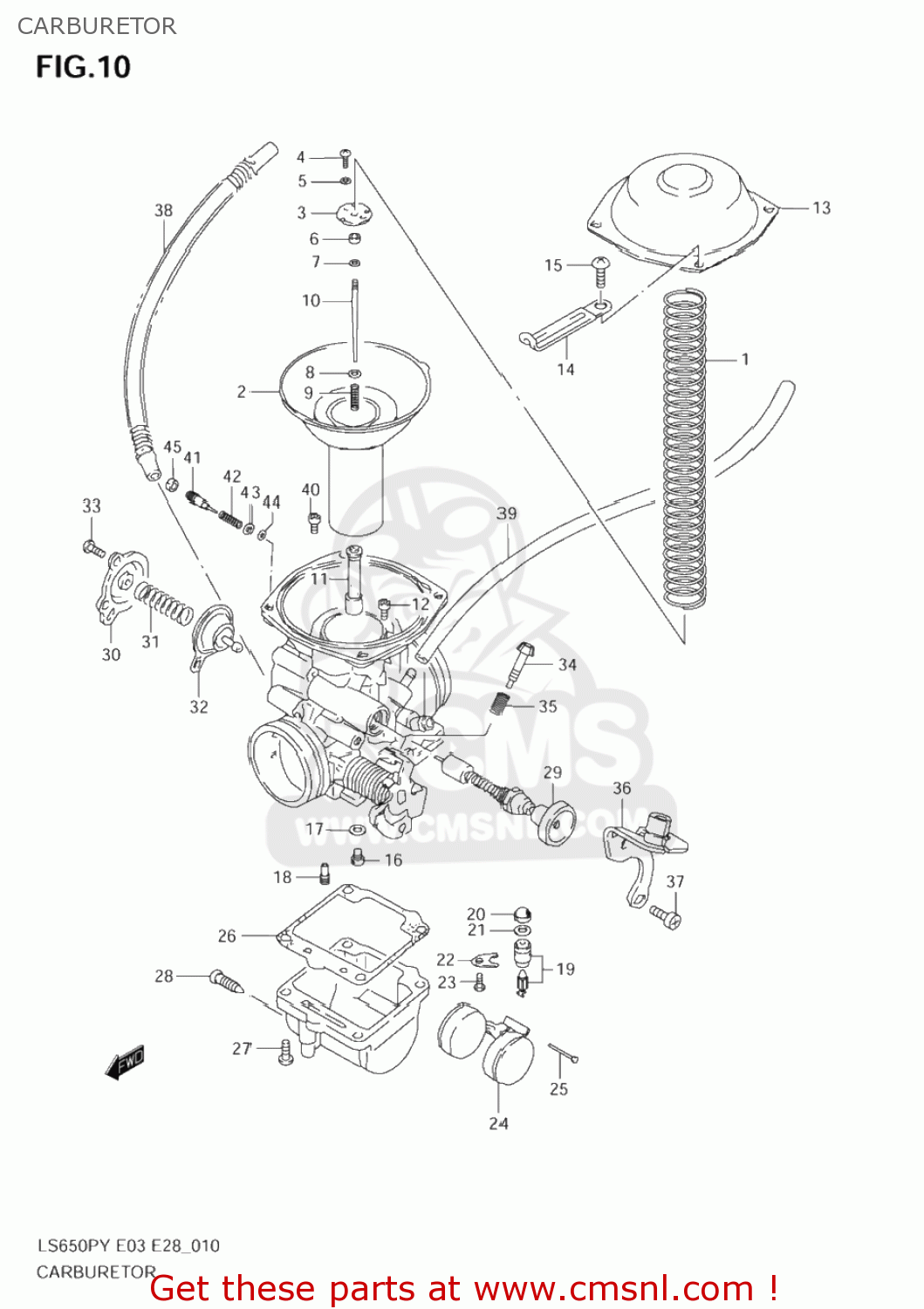

Carburetor diagram LS650P SAVAGE 2002 (L2) USA (E03)
CARBURETOR LS650P SAVAGE 2002 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320024C40
ref:
13200-24C41
CARBURETOR ASSEMBLY
€ 650.00
1320024C41
ref:
CARBURETOR ASSY
€ 650.00
1320024C90
ref:
CARBURETOR ASSY
€ 0.00
1320024C50
ref:
13200-24C51
CARBURETOR ASSEMBLY
€ 276.00
1320024C51
ref:
CARBURETOR ASSY
€ 276.00
1320024CA0
ref:
CARBURETOR ASSY
€ 0.00
1
1350324B00
ref: 1
SPRING
€ 11.00
2
1350024B40
ref: 2
DIAPHRAGM ASSY
€ 136.00
3
1338937400
ref: 3
PLATE
€ 5.50
4
0211203063
ref: 4
02112-0306B
SCREW
€ 2.00
5
0832121033
ref: 5
08321-2103B
WASHER,LOCK
€ 1.50
6
1338744030
ref: 6
RING
€ 5.00
7
1339431210
ref: 7
CLIP,NEEDLE
€ 3.50
8
1338244030
ref: 8
WASHER
€ 3.50
9
1338844030
ref: 9
SPRING
€ 6.00
10
1338324C40
ref: 10
NEEDLE,JET(5C17)
€ 11.50
11
0949400861
ref: 11
JET,NEEDLE(X-7M)
€ 0.00
12
0949145002
ref: 12
JET(45)
€ 9.50
13
1350237400
ref: 13
COVER
€ 18.00
14
0940406434
ref: 14
CLAMP(L:80 T:1.0)
€ 3.00
15
0211205103
ref: 15
02112-0510A
SCREW
€ 2.00
16
0949129013
ref: 16
JET,MAIN(145)
€ 10.50
17-1
1333244080
ref: 17-1
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
17-2
1338203110
ref: 17-2
WASHER
€ 2.50
18
0949252010
ref: 18
JET,PILOT(52.5)
€ 12.50
19
1337037400
ref: 19
13370-24C80
VALVE ASSEMBLY,NEEDLE
€ 66.50
20
1337684110
ref: 20
13376-19F00
FILTER
€ 6.50
21
1337444080
ref: 21
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204063
ref: 23
02112-0406B
SCREW 4X6
€ 2.00
24
1325037400
ref: 24
FLOAT
€ 26.00
25
1325492311
ref: 25
PIN,FLOAT
€ 2.00
26
1325138300
ref: 26
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
27
0211235116
ref: 27
SCREW
€ 0.00
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
€ 5.50
29
1341124B00
ref: 29
13411-24C00
PLUNGER ASSEMBLY
€ 42.00
30
1348438A10
ref: 30
COVER
€ 16.00
31-1
1348124B00
ref: 31-1
SPRING
€ 3.00
31-2
1348138B40
ref: 31-2
SPRING
€ 5.50
32
1348005A10
ref: 32
DIAPHRAGM ASSY
€ 54.50
33
0211204103
ref: 33
02112-0410A
SCREW
€ 1.00
34-1
1326737100
ref: 34-1
13267-25D00
SCREW,THROTTLE STOP
€ 9.00
34-2
1326725D00
ref: 34-2
ADJUSTER
€ 9.00
35
1327193011
ref: 35
SPRING
€ 4.50
36
1362124B01
ref: 36
BRACKET ASSY
€ 32.50
37
0211205103
ref: 37
02112-0510A
SCREW
€ 2.00
38
1331824B00
ref: 38
13318-24C00
HOSE ASSEMBLY
€ 18.50
39
0935250823600
ref: 39
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
40
0949146005
ref: 40
JET,PILOT(230)
€ 12.00
41
1326937400
ref: 41
SCREW,AIR
€ 9.50
42
1326847070
ref: 42
SPRING
€ 5.00
43
1329129900
ref: 43
WASHER
€ 2.00
44
1329529900
ref: 44
O RING,PILOT AIR SCREW
€ 4.00
45
1328105A00
ref: 45
PLUG
€ 3.50
