FOOTREST
LS650P SAVAGE 2002 (L2) USA (E03)

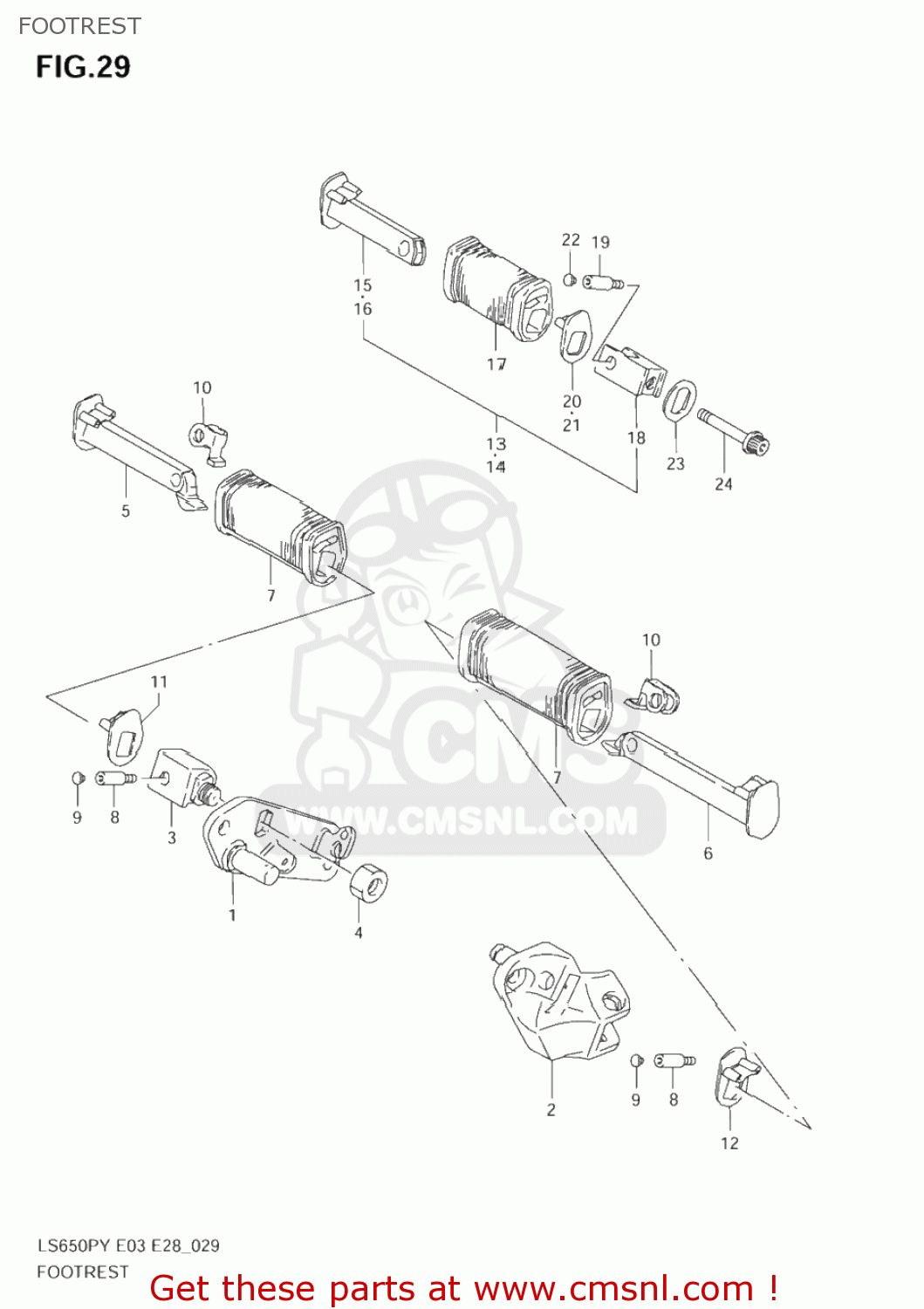

Footrest diagram LS650P SAVAGE 2002 (L2) USA (E03)
FOOTREST LS650P SAVAGE 2002 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351024B00
ref: 1
BRACKET,FR FOOTREST,R
€ 144.00
2-1
4352024B21
ref: 2-1
43520-24B22
BRACKET,FRONT FOOTREST
€ 166.00
2-2
4352024B22
ref: 2-2
BRACKET,FR FOOTREST,L
€ 166.00
3
4351724B01
ref: 3
HOLDER,FR FOOTREST,R
€ 59.00
4
0914016029
ref: 4
NUT
€ 3.50
5
4353024B02
ref: 5
BAR,FR FOOTREST,R
€ 39.00
6
4354024B02
ref: 6
BAR,FR FOOTREST,L
€ 39.00
7
4355138A00
ref: 7
RUBBER,FR FOOTREST
€ 9.00
8
0910606100
ref: 8
BOLT(6X8)
€ 5.00
9
4357624B00
ref: 9
CAP,PILLION FOOTREST BOLT
€ 3.00
10
4357024B01
ref: 10
CUSHION,FR FOOTREST
€ 5.50
11
4347024B00
ref: 11
WASHER,FR FOOTREST,R
€ 4.50
12
4348024B00
ref: 12
WASHER,FR FOOTREST,L
€ 4.50
13
4360024B00
ref: 13
FOOTREST ASSY,PILLION,R
€ 81.00
14
4370024B00
ref: 14
FOOTREST ASSY,PILLION,L
€ 81.00
15
4361024B01
ref: 15
BAR,PILLION FOOTREST,R
€ 20.50
16
4371024B01
ref: 16
BAR,PILLION FOOTREST,L
€ 24.00
17
4365124B00
ref: 17
RUBBER,PILLION FOOTREST
€ 9.50
18
4362124B10
ref: 18
HOLDER,PILLION FOOTREST
€ 38.50
19
0910606100
ref: 19
BOLT(6X8)
€ 5.00
20
4357038A00
ref: 20
WASHER,FR FOOTREST,R
€ 5.00
21
4358038A00
ref: 21
WASHER,FR FOOTREST,L
€ 8.50
22
4357624B00
ref: 22
CAP,PILLION FOOTREST BOLT
€ 3.00
23
4362224B00
ref: 23
WASHER,PILLION FOOTREST HOLDER
€ 2.00
24
0713010453
ref: 24
07130-1045B
BOLT
€ 4.00
