FRAME COVER
PE250 1977 (B) USA (E03)

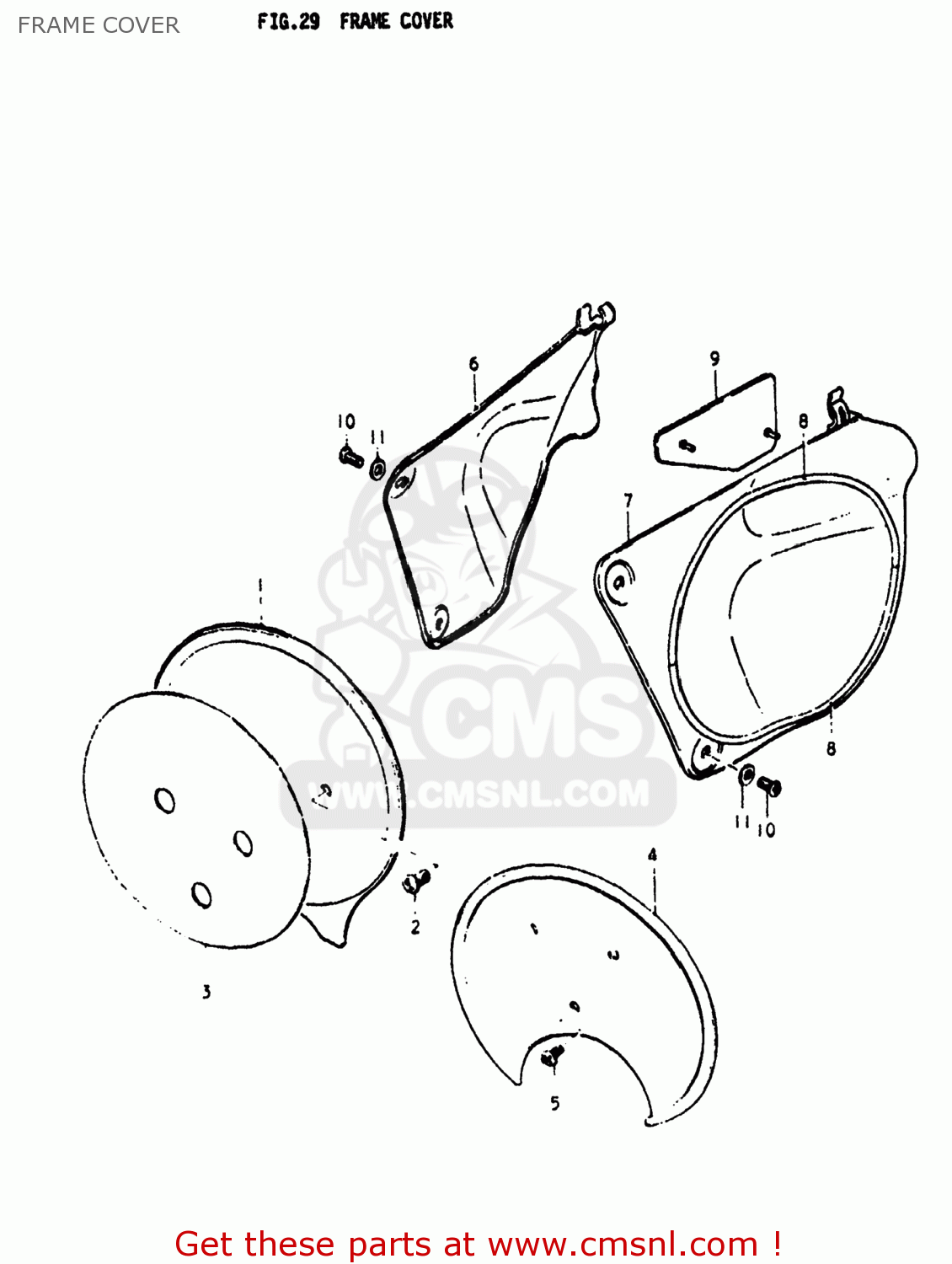

Frame cover diagram PE250 1977 (B) USA (E03)
FRAME COVER PE250 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9491141400
ref: 1
PLATE,NUMBER,FRONT
€ 11.50
2
0214206107
ref: 2
SCREW
€ 2.00
3
6816941400
ref: 3
EMBLEM,FRONT NUMBER PLATE
€ 3.50
4
9491141500
ref: 4
PLATE,FRONT NUMBER
€ 17.50
5
0214206108
ref: 5
02142-06107
SCREW
€ 2.00
6-1
4711041400064
ref: 6-1
47111-41100-13L
COVER,FRAME,RIGHT
€ 60.50
6-2
4711141100163
ref: 6-2
47111-41100-13L
COVER,FRAME,RIGHT
€ 60.50
7-1
4721041400064
ref: 7-1
47211-41100-13L
COVER,FRAME,LEFT
€ 60.50
7-2
4721141100163
ref: 7-2
47211-41100-13L
COVER,FRAME,LEFT
€ 60.50
8
6814641200
ref: 8
TAPE,FRAME COVER
€ 4.50
9
4721841100
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.50
10
0214206127
ref: 10
SCREW 6X12
€ 1.50
11
0918006048
ref: 11
09169-06053
SPACER
€ 2.00
