HANDLEBAR (PE250C .PE250N)
PE250 1977 (B) USA (E03)

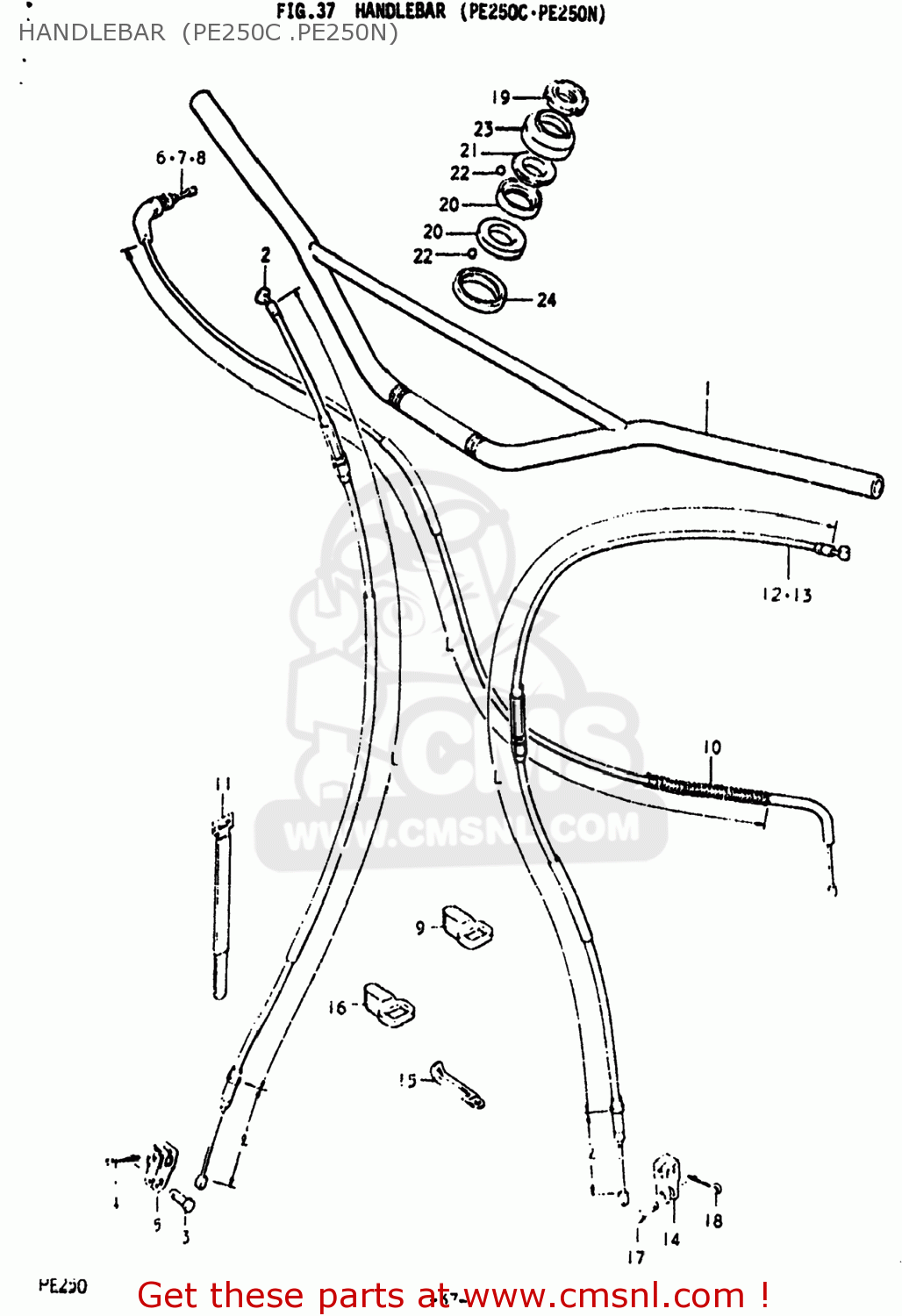

Handlebar (pe250c .pe250n) diagram PE250 1977 (B) USA (E03)
HANDLEBAR (PE250C .PE250N) PE250 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611041400
ref: 1-1
56110-41510
HANDLEBAR
€ 48.00
1-2
5611041500
ref: 1-2
56110-41510
HANDLEBAR
€ 48.00
2
5811041410
ref: 2
CABLE,FR BRAKE
€ 35.50
3
0920006013
ref: 3
PIN(L:13.5)
€ 2.00
4
0411120158
ref: 4
04111-2015A
PIN
€ 1.50
5
5866141400
ref: 5
BRAKE CABLE HOOK
€ 0.00
6
5830041400
ref: 6
58300-41402
CABLE ASSEMBLY,THROTTLE
€ 0.00
7
5830041402
ref: 7
CABLE ASSY,THROTTLE
€ 0.00
8
5830041410
ref: 8
CABLE ASSEMBLY,THROTTLE
€ 26.00
9
5862141110
ref: 9
GUIDE,CABLE
€ 5.50
10
5839927100
ref: 10
PROTECTOR,CABLE
€ 10.50
11
0940718301
ref: 11
CLAMP
€ 6.00
12
5821041400
ref: 12
58210-41410
CABLE ASSEMBLY,CLUTCH
€ 34.50
13
5821041401
ref: 13
58210-41410
CABLE ASSEMBLY,CLUTCH
€ 34.50
14
5863541400
ref: 14
HOOK,CLUTCH CABLE
€ 10.50
15
0940406412
ref: 15
09404-06432
CLAMP
€ 2.50
16-1
5862129300
ref: 16-1
58621-29301
GUIDE,CABLE
€ 5.00
16-2
5862129301
ref: 16-2
GUIDE,CLUTCH CABLE
€ 5.00
17
0920006004
ref: 17
PIN(L:13)
€ 1.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
19
5163128000
ref: 19
NUT,STEERING STEM(25X44X10)
€ 12.50
20
5161133002
ref: 20
LACE,STEERING INNER LWR
€ 7.00
21
5162130001
ref: 21
LACE,STEERING OUTER UPR
€ 14.00
22
0611108003
ref: 22
BALL
€ 1.50
23
5164341500
ref: 23
DUST SEAL,STEERING,UPPER
€ 7.50
24
5164441500
ref: 24
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.00
