CRANKSHAFT
RB50 1987 (H) USA (E03)

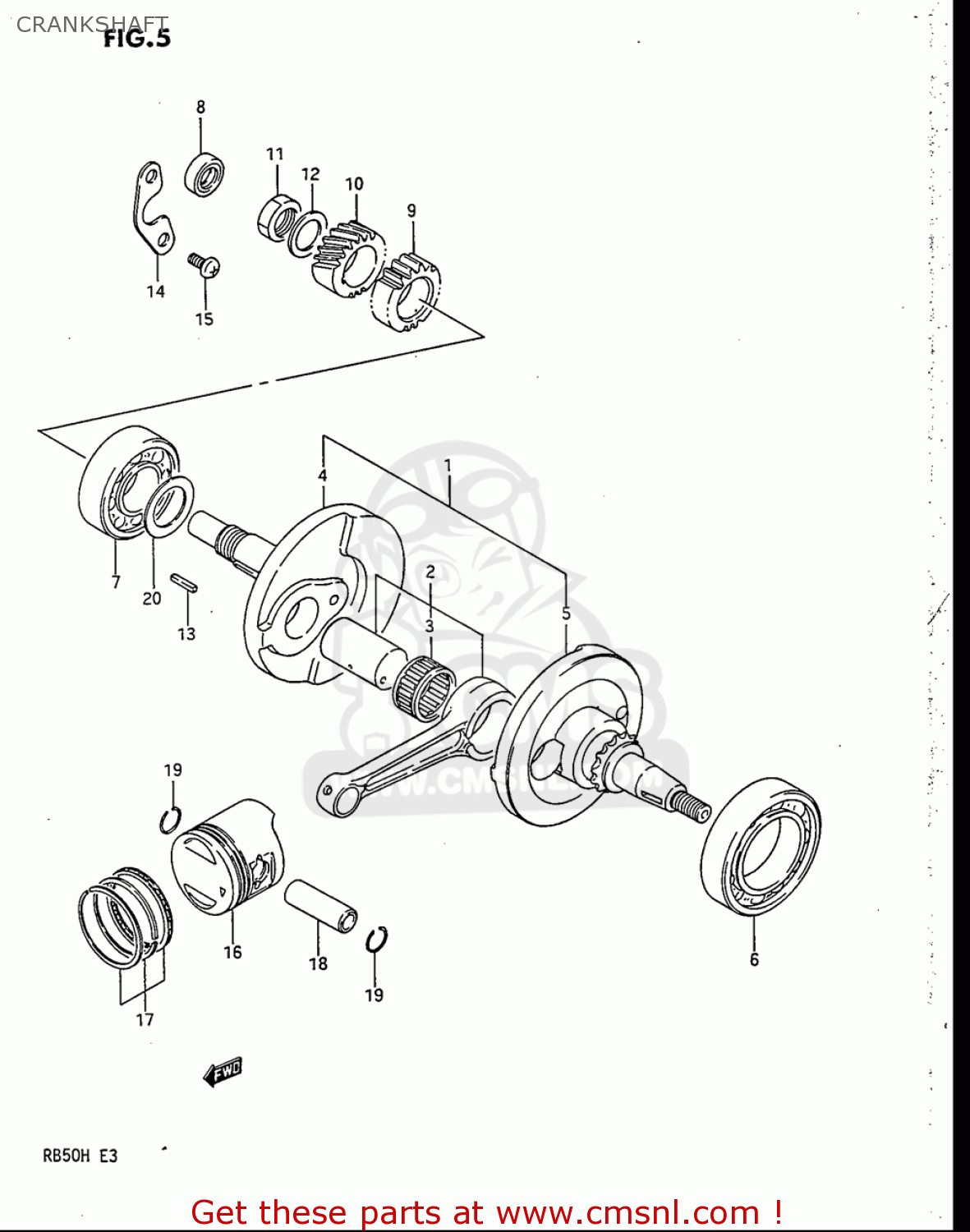

Crankshaft diagram RB50 1987 (H) USA (E03)
CRANKSHAFT RB50 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
1220009840
ref: 2
CRANKSHAFT ASSEMBLY
€ 70.00
3
09263220090B0
ref: 3
BEARING 22.7X27.8X14
€ 12.50
6
09262350210A0
ref: 6
BEARING(35X62X14)
€ 28.00
7
0926220073
ref: 7
BEARING(20X52X15)
€ 19.00
8
0928212009
ref: 8
SEAL,OIL(12X21X7)
€ 9.00
11
0914016005
ref: 11
NUT
€ 4.50
12
0916416005
ref: 12
WASHER
€ 3.00
15
0211206087
ref: 15
SCREW
€ 2.00
16-1
12111094500F0
ref: 16-1
PISTON
€ 69.50
16-2
1210009450050
ref: 16-2
PISTON SET(OS:0.5)
€ 83.00
16-3
1210009450100
ref: 16-3
PISTON SET (OS:1.0)
€ 74.50
17-1
1214009410
ref: 17-1
RING SET,PISTON
€ 50.50
18
1215109400
ref: 18
PIN,PISTON
€ 6.00
19
0938112001
ref: 19
RING,SNAP
€ 1.50
20-1
0918120187
ref: 20-1
SHIM(20X30X0.6)
€ 2.00
20-1
0918120187
ref: 20-1
SHIM(20X30X0.6)
€ 2.00
20-3
0918120188
ref: 20-3
SHIM(20X30X0.7)
€ 2.50
20-3
0918120188
ref: 20-3
SHIM(20X30X0.7)
€ 2.50
20-4
0918120189
ref: 20-4
SHIM(20X30X0.75)
€ 1.50
20-5
0918120190
ref: 20-5
SHIM(20X30X0.8)
€ 2.00
20-5
0918120190
ref: 20-5
SHIM(20X30X0.8)
€ 2.00
20-6
0918120191
ref: 20-6
SHIM(20X30X0.85)
€ 1.50
20-7
0918120192
ref: 20-7
SHIM(20X30X0.9)
€ 1.50
20-8
0918120193
ref: 20-8
SHIM(20X30X1.95)
€ 1.50
20-9
0918120195
ref: 20-9
SHIM(20X30X1)
€ 3.00
20-10
0918120197
ref: 20-10
SHIM(20X30X1.05)
€ 2.00
20-11
0918120200
ref: 20-11
SHIM(20X30X1.1)
€ 2.00
20-12
0918120202
ref: 20-12
SHIM(20X30X1.15)
€ 2.00
20-13
0918120204
ref: 20-13
SHIM(20X30X1.2)
€ 2.00
20-14
0918120207
ref: 20-14
SHIM(20X30X1.25)
€ 2.00
20-15
0918120209
ref: 20-15
SHIM(20X30X1.3)
€ 2.00
