ELECTRICAL

RB50 1987 (H) USA (E03)

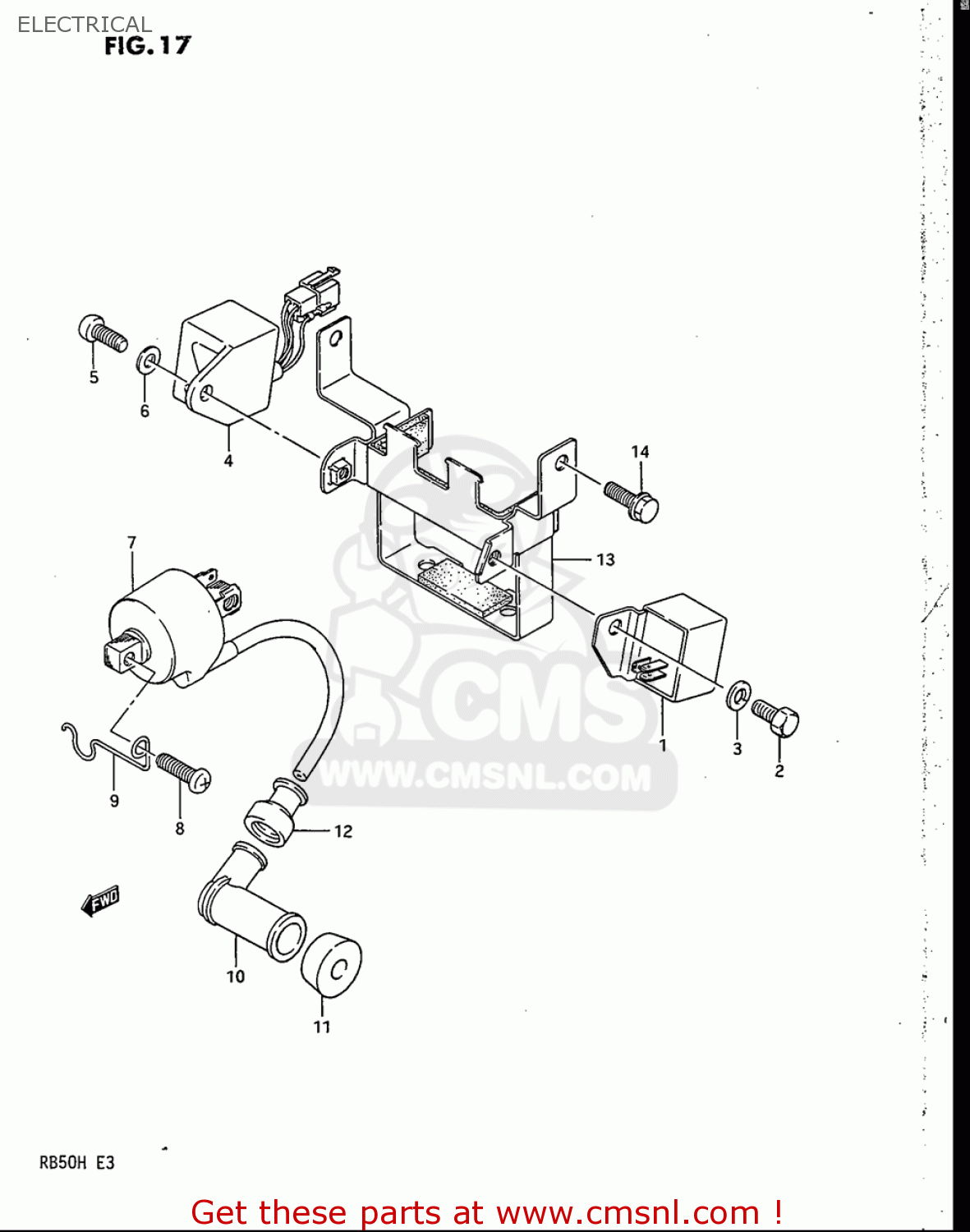

Electrical diagram RB50 1987 (H) USA (E03)

ELECTRICAL RB50 1987 (H) USA (E03)

ELECTRICAL RB50 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3280009401
ref: 1

RECTIFIER ASSY

€ 54.00

2

0150006103
ref: 2

BOLT

€ 2.00

3

083210106A
ref: 3

WASHER,LOCK

€ 2.00

4

3290028B01
ref: 4

CDI UNIT

€ 0.00

5

021120612A
ref: 5

SCREW

€ 1.50

6

083220106A
ref: 6

WASHER

€ 2.00

7

3341012C00
ref: 7

COIL ASSY,IGNITION NO.1

€ 123.00

8

0211206207
ref: 8

SCREW

€ 2.00

9

5862128B00
ref: 9

GUIDE,CLUTCH CABLE

€ 0.00

10

3351097313
ref: 10

CAP,SPARK PLUG

€ 16.50

11

3354147D00
ref: 11

SEAL,SPARK PLUG

€ 7.00

12

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

14

0155006127
ref: 14

BOLT

€ 2.50
