FUEL TANK (RG125AJ/BJ/UAJ/BUJ)
RG125B 1988 (J)

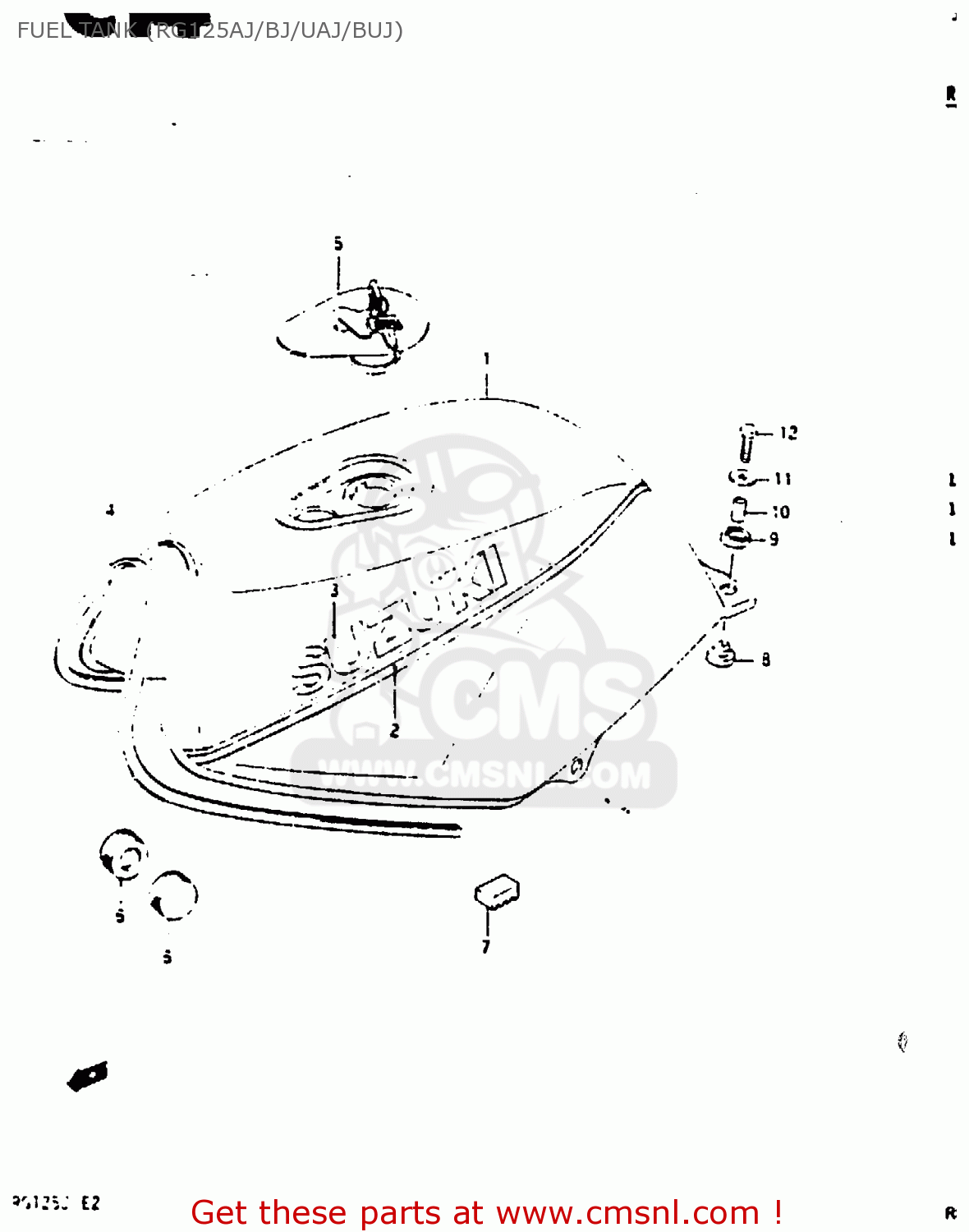

Fuel tank (rg125aj/bj/uaj/buj) diagram RG125B 1988 (J)
FUEL TANK (RG125AJ/BJ/UAJ/BUJ) RG125B 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410046A002WB
ref: 1-1
RG125AJ/AUJ
TANK ASSY, FUEL
€ 0.00
1-2
4410046A003HZ
ref: 1-2
RG125AUJ/BUJ
TANK ASSY, FUEL
€ 316.50
2-1
6811537A0030H
ref: 2-1
FOR 2WB
TAPE, FUEL TANK (WHITE)
€ 0.00
2-2
6811537A000CY
ref: 2-2
FOR 3HZ
TAPE, FUEL TANK (BLACK)
€ 0.00
3-1
6811143400019
ref: 3-1
FOR 2WB
EMBLEM
€ 9.50
3-2
6811143400742
ref: 3-2
FOR 3HZ
EMBLEM
€ 11.50
4
6824127A00
ref: 4
MOLDING,FUEL TANK
€ 23.00
5
4420016840
ref: 5
CAP SET,FUEL TANK
€ 103.00
6
0932910020
ref: 6
CUSHION, FRONT
€ 2.50
7
4454504710
ref: 7
CUSHION, SIDE
€ 30.50
8
0932010038
ref: 8
CUSHION
€ 4.00
9
0932014017
ref: 9
CUSHION
€ 3.00
10
0918006107
ref: 10
SPACER (6.4X9X20)
€ 3.00
11
0916006072
ref: 11
WASHER (6.5X24X1.6)
€ 2.00
12
0110706306
ref: 12
BOLT
€ 2.50
