OIL PUMP
RG125B 1988 (J)

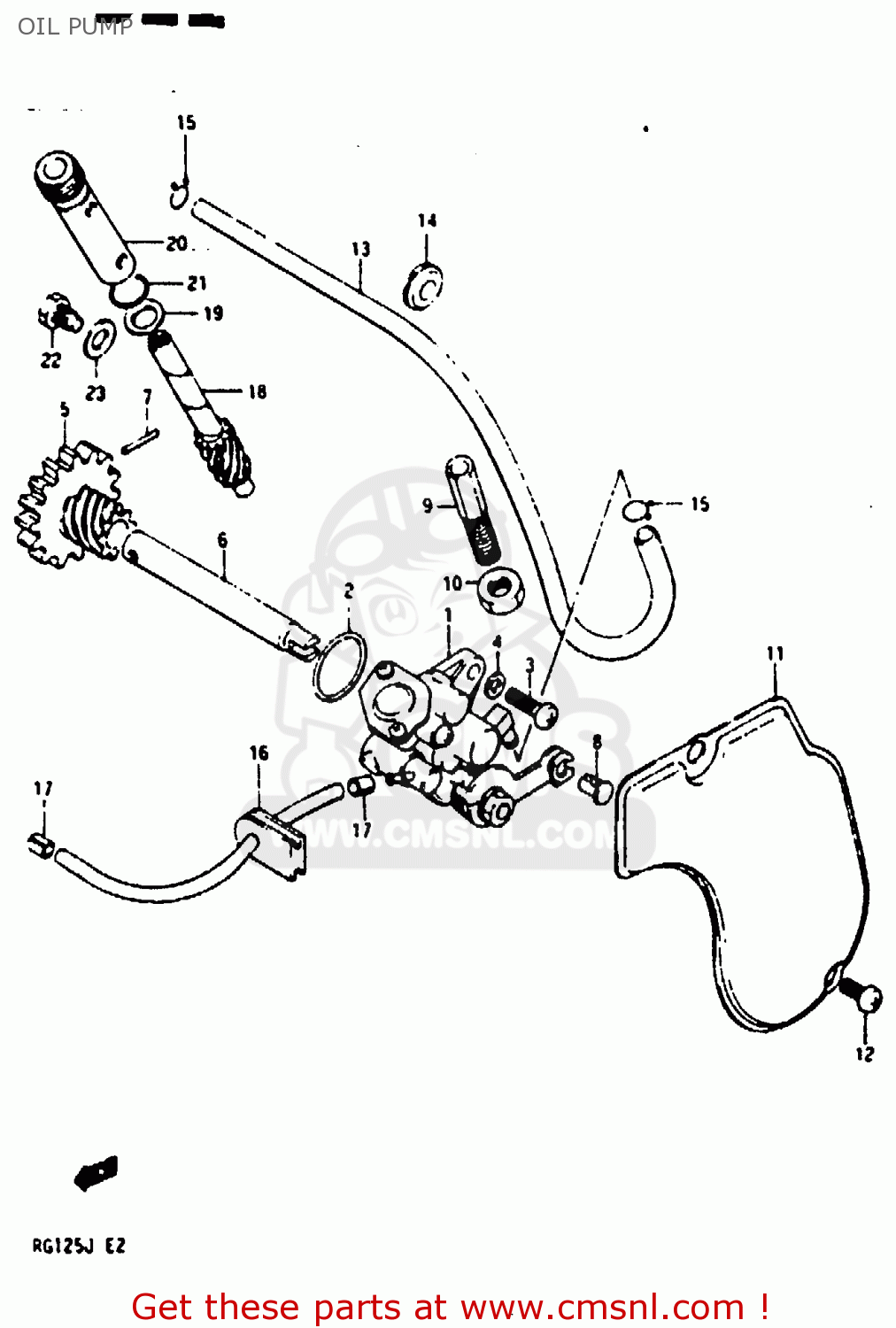

Oil pump diagram RG125B 1988 (J)
OIL PUMP RG125B 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
1610036A01
ref: 1
PUMP, OIL
€ 173.00
2
0928020003
ref: 2
O RING(D:1.5,ID:19.5)
€ 2.50
3
0211205168
ref: 3
SCREW
€ 2.50
4
0832121057
ref: 4
LOCK WASHER
€ 2.00
5
1632136A00
ref: 5
GEAR,OIL PUMP DRIVE
€ 14.50
6
1632239100
ref: 6
SHAFT,OIL PUMP DRIVE GEAR
€ 13.50
7
0926102001
ref: 7
PIN(2.5X19.8)
€ 1.50
8
1629203112
ref: 8
TERMINAL,CABLE
€ 3.50
9
0911908014
ref: 9
BOLT
€ 3.50
10
0831012088
ref: 10
NUT
€ 2.00
11
1138536A00
ref: 11
CAP, INSPECTION
€ 5.50
12
0211205107
ref: 12
SCREW
€ 2.00
13
1681136A01
ref: 13
HOSE, OIL INLET
€ 3.50
14
0930808001
ref: 14
GROMMET
€ 2.00
15
0940108401
ref: 15
CLIP
€ 1.50
16
1682036A01
ref: 16
HOSE, OIL OUTLET
€ 6.00
17
0940104401
ref: 17
CLIP
€ 2.50
18
2643148000
ref: 18
GEAR,TACHOMETER DRIVEN(NT:10)
€ 19.50
19
0916008003
ref: 19
WASHER(8X13.7X1)
€ 2.00
20
2644148000
ref: 20
SLEEVE,TACHOMETER DRIVE GEAR
€ 15.00
21
0928010001
ref: 21
O RING(D:1.3,ID:9.6)
€ 2.00
22
0913506002
ref: 22
BOLT
€ 2.50
23
0832221067
ref: 23
WASHER
€ 2.00
