CARBURETOR

RG125F 1992 (N) (E01 E02 E04 E15 E17 E18 E34)

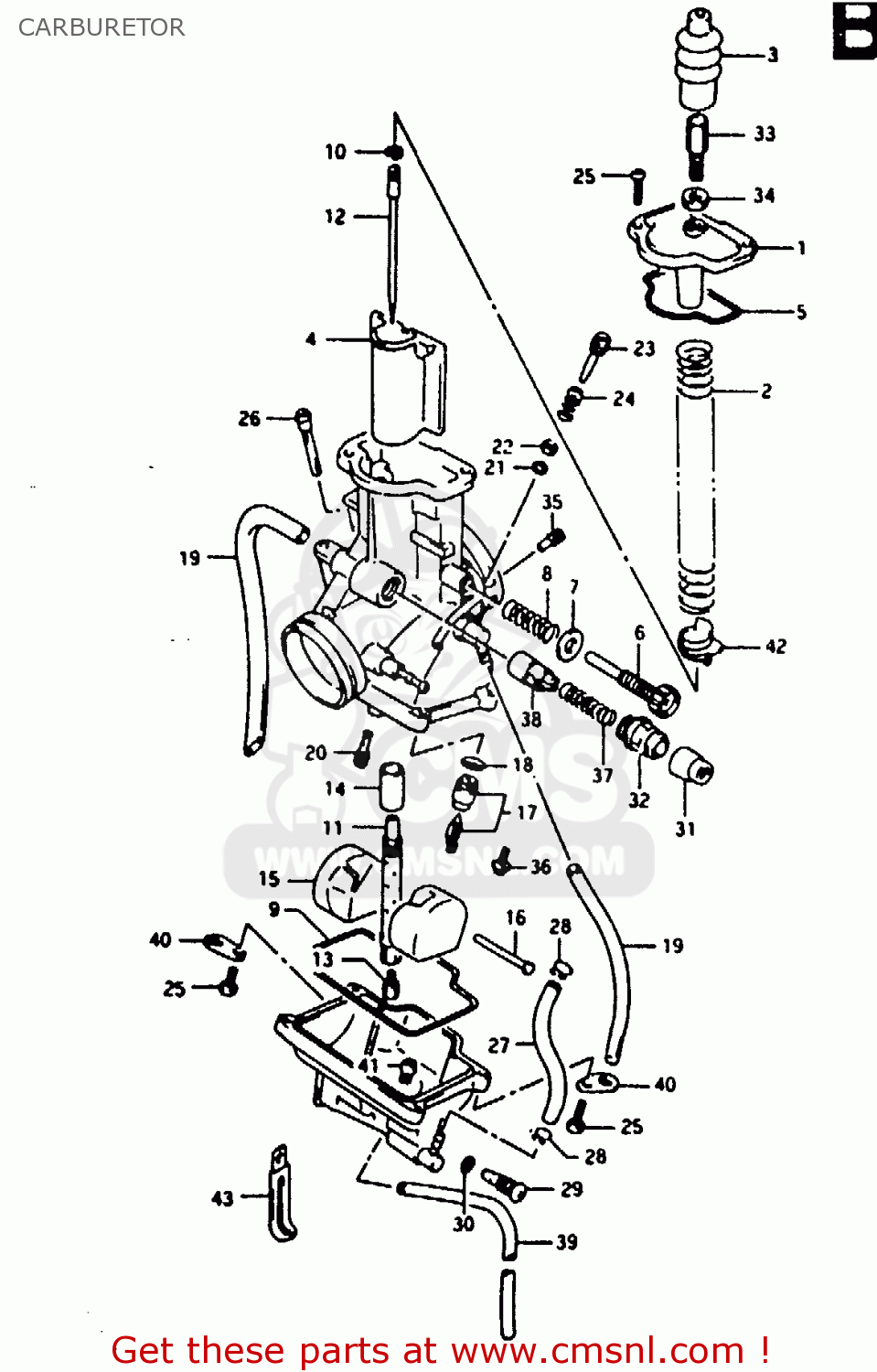

Carburetor diagram RG125F 1992 (N) (E01 E02 E04 E15 E17 E18 E34)

CARBURETOR RG125F 1992 (N) (E01 E02 E04 E15 E17 E18 E34)
CARBURETOR RG125F 1992 (N) (E01 E02 E04 E15 E17 E18 E34)
CARBURETOR RG125F 1992 (N) (E01 E02 E04 E15 E17 E18 E34)
prices are in EUR
ref
part #
description
quantity
0
1320019D10
ref: 0
CARBURETOR ASSY
€ 0.00
0
1320019D20
ref: 0
E17 RG125FUN E2, E4
CARBURETOR ASSY
€ 522.00
0
1320019D80
ref: 0
MODEL P/R:E34
CARBURETOR ASSY
€ 0.00
1
1326112C00
ref: 1
CAP, TOP
€ 20.50
2
1357312C00
ref: 2
@l13573-19D00
SPRING
€ 10.50
3
1368141510
ref: 3
CAP,CABLE ADJUSTER
1368141510
€ 11.00
4
1355112C00
ref: 4
VALVE,PISTON(CA:1.5)
1355112C00
€ 167.50
5
1325126C00
ref: 5
O RING,TOP CAP
1325126C00
€ 9.50
6
1327913A60
ref: 6
ADJUSTER
1327913A60
€ 5.00
7
1338609410
ref: 7
WASHER
1338609410
€ 2.50
8
1329719D00
ref: 8
SPRING
€ 4.50
9
1367212C00
ref: 9
GASKET,FLOAT CAHMBER (NAS)
1367212C00
€ 13.00
10
1339431210
ref: 10
CLIP,NEEDLE
1339431210
€ 3.50
11-1
0949400780
ref: 11-1
JET,NEEDLE(P-3)
0949400780
€ 29.50
11-2
0949400785
ref: 11-2
MODEL P/R E34
JET, NEEDLE (P-5)
€ 32.50
12
1338319D00
ref: 12
NEEDLE,JET
1338319D00
€ 11.50
13-1
0949138006
ref: 13-1
JET,MAIN(195)
0949138006
€ 7.00
13-2
0949140006
ref: 13-2
MODEL P/R E34
JET,MAIN(200)
0949140006
€ 11.50
14
1345212C00
ref: 14
RING
1345212C00
€ 5.50
15
1325012C00
ref: 15
FLOAT
1325012C00
€ 41.50
16
1325492311
ref: 16
PIN,FLOAT
1325492311
€ 2.00
17
1337022D00
ref: 17
VALVE ASSY,NEEDLE
1337022D00
€ 68.50
18
1337444080
ref: 18
O-RING,NEEDLE VALVE
1337444080
€ 6.00
19
1368322D10
ref: 19
HOSE
€ 3.00
20-1
0949227003
ref: 20-1
JET,PILOT(27.5)
0949227003
€ 12.00
20-2
0949225005
ref: 20-2
MODEL P/R E34
JET,PILOT(25)
0949225005
€ 6.50
21
1329529900
ref: 21
O RING,PILOT AIR SCREW
1329529900
€ 4.00
22
1329129900
ref: 22
WASHER
1329129900
€ 2.00
23
1326948030
ref: 23
SCREW,PILOT AIR
1326948030
€ 10.00
24
1326848700
ref: 24
SPRING,THROTTLE SCREW
1326848700
€ 3.50
25
0211204123
ref: 25
@l13602-05A40
SCREW
0211204123
€ 1.50
26
1323612C00
ref: 26
FILTER
1323612C00
€ 5.00
27
1321812C20
ref: 27
HOSE SET
1321812C20
€ 19.00
28
1367112C00
ref: 28
CLIP
€ 2.50
29
1324702340
ref: 29
PLUG,DRAIN
1324702340
€ 5.50
30
1327802340
ref: 30
O RING
1327802340
€ 1.50
31
1368104010
ref: 31
CAP
1368104010
€ 3.00
32
1341843410
ref: 32
HOLDER,GUIDE
1341843410
€ 6.50
33
1357741612
ref: 33
ADJUSTER,CABLE
1357741612
€ 8.00
34
1366116600
ref: 34
NUT
1366116600
€ 5.00
35
0949360004
ref: 35
JET,AIR(0.6)
0949360004
€ 11.00
36
1360243410
ref: 36
SCREW
1360243410
€ 2.50
37
1341737200
ref: 37
SPRING
1341737200
€ 3.00
38
1341101010
ref: 38
PLUNGER,STARTER
1341101010
€ 14.00
39
0935230503300
ref: 39
L:300@r270
HOSE
0935230503300
€ 8.00
40
1369336500
ref: 40
PLATE,CARBURETOR
1369336500
€ 3.50
41-1
0949160005
ref: 41-1
JET, MAIN
€ 16.00
41-2
0949162006
ref: 41-2
MODEL P/R E34
JET,MAIN(62.5)
0949162006
€ 6.00
42
1342426C00
ref: 42
RING
1342426C00
€ 7.50
43
0940406402
ref: 43
CLAMP
€ 2.50
