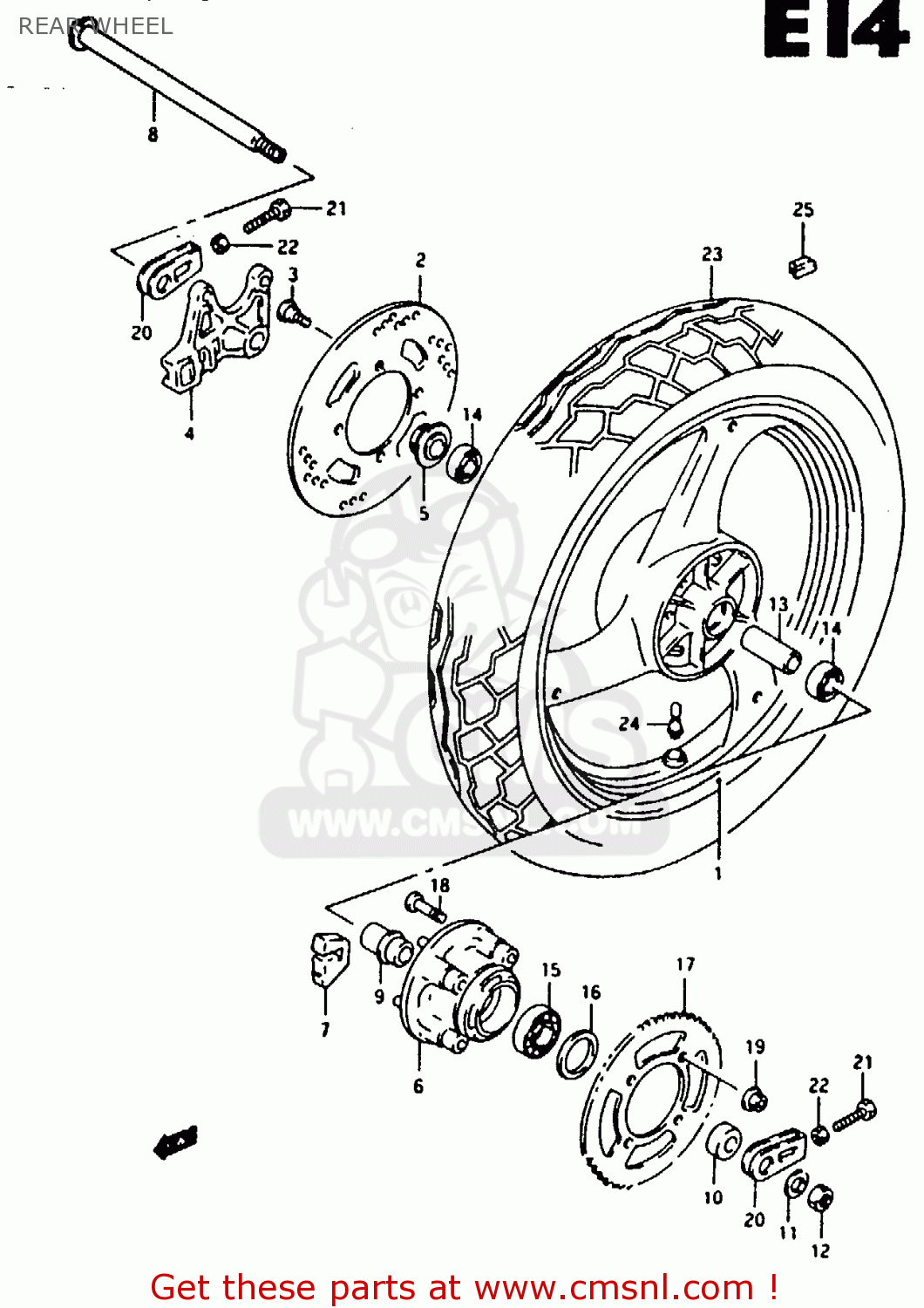

REAR WHEEL

ref

part #

description

quantity

1-1

6411119D0028W
ref: 1-1
MODEL N, FOR A0Y

WHEEL, REAR (17*MT2.75) WHITE

€ 0.00

1-2

6411119D001DR
ref: 1-2
MODEL N, FOR 019

WHEEL, REAR (17*MT2.75) PURPLE

€ 381.50

1-3

6411119D0028W
ref: 1-3
MODEL P/R E4, FOR 1L

WHEEL, REAR (17*MT2.75) WHITE

€ 0.00

1-4

6411119D0035W
ref: 1-4
MODEL P E4, FOR 019

WHEEL, REAR (17*MT2.75) GRAY

€ 0.00

1-5

6411119D001TU
ref: 1-5
MODEL R E4 FOR 1ZX

WHEEL, REAR (17*MT2.75) GRAY

€ 0.00

1-6

6411119D1028W
ref: 1-6
MODEL P/R E1, E2, E1

WHEEL, REAR (17*MT3.50) WHITE

€ 479.00

1-7

6411119D1035W
ref: 1-7
MODEL P E1, E2, E15,

WHEEL, REAR (17*MT3.50) GRAY

€ 353.00

1-8

6411119D101TU
ref: 1-8
MODEL R E2, E15, E18

WHEEL, REAR (17*MT3.50) GRAY)

€ 703.50

2

6921119D00
ref: 2

DISC,RR BRAKE

€ 208.00

3

5942103A10
ref: 3

BOLT,BRAKE DISC

€ 4.00

4

6972119D01
ref: 4

BRACKET,RR CALIPER

€ 106.50

5

6475038211
ref: 5

SPACER,RR AXLE,L

€ 12.00

6

6461104A01
ref: 6

DRUM,RR SPROCKET MOUNTING

€ 114.00

7

6465104A00
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8-1

6471119D10
ref: 8-1
MODEL N

AXLE, REAR

€ 42.50

8-2

6471119D12
ref: 8-2
MODEL P/R

AXLE, REAR

€ 42.50

9

6473304A00
ref: 9

RETAINER,RR SPROCKET DRUM

€ 14.00

10

0918017087
ref: 10

SPACER(17X34X16.5)

€ 11.50

11

0916017047
ref: 11

WASHER(17X30X3)

€ 5.00

12

0831921168
ref: 12

NUT 16MM

€ 5.00

13

0918017072
ref: 13

SPACER(17.5X25X81)

€ 13.50

14

0813362037
ref: 14

BEARING

€ 24.50

15

0926225061
ref: 15

BEARING(25X52X15)

€ 27.50

16

0928334003
ref: 16

SEAL,OIL(34X52X6)

€ 9.00

17-1

6451119D00
ref: 17-1
MODEL N

SPROCKET, REAR (NT:47)

€ 75.50

17-2

6451119D01
ref: 17-2
MODEL P/R E1, E2, E4

SPROCKET, REAR (NT:47)

€ 75.50

17-3

6451119D10
ref: 17-3
MODEL P E34

SPROCKET, REAR (NT:46)

€ 27.00

17-4

6451119D11
ref: 17-4
MODEL P/R E18

SPROCKET, REAR (NT:46)

€ 27.00

18

0911910043
ref: 18

BOLT(10X47)

€ 4.50

19

0831931107
ref: 19

NUT

€ 3.00

20-1

6141019D00
ref: 20-1
MODEL N MODEL P/R E4

ADJUSTER,CHAIN

€ 23.00

20-2

6141019D70
ref: 20-2
MODEL P/R E1, E2, E1

ADJUSTER, CHAIN

€ 14.50

21

0910408031
ref: 21

BOLT(8X49)

€ 3.50

22-1

0831012088
ref: 22-1
MODEL N/P

NUT

€ 2.00

22-2

0831000083
ref: 22-2
MODEL R

NUT

€ 1.50

23-1

6511019D00
ref: 23-1
MODEL N MODEL P/R E4

TIRE, REAR (120/80-17 615) (CUNLOP)

€ 0.00

23-2

6511019D20
ref: 23-2
MODEL P/R E1, E2, E1

TIRE, REAR (130/70R17 62H) (DUNLOP)

€ 321.00

24-1

4313024A00
ref: 24-1
@r43130-24A11

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

24-2

4313024A11
ref: 24-2

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

25-1

5541100A00
ref: 25-1

BALANCER,WHEEL (10G)

€ 6.50

25-2

5541200A00
ref: 25-2

BALANCER,WHEEL

€ 7.00

25-3

5541300A00
ref: 25-3

BALANCER,WHEEL

€ 4.00

all assemblies
