CARBURETOR
RGV250L 1991 (M) (E02 E21 E22 E24)

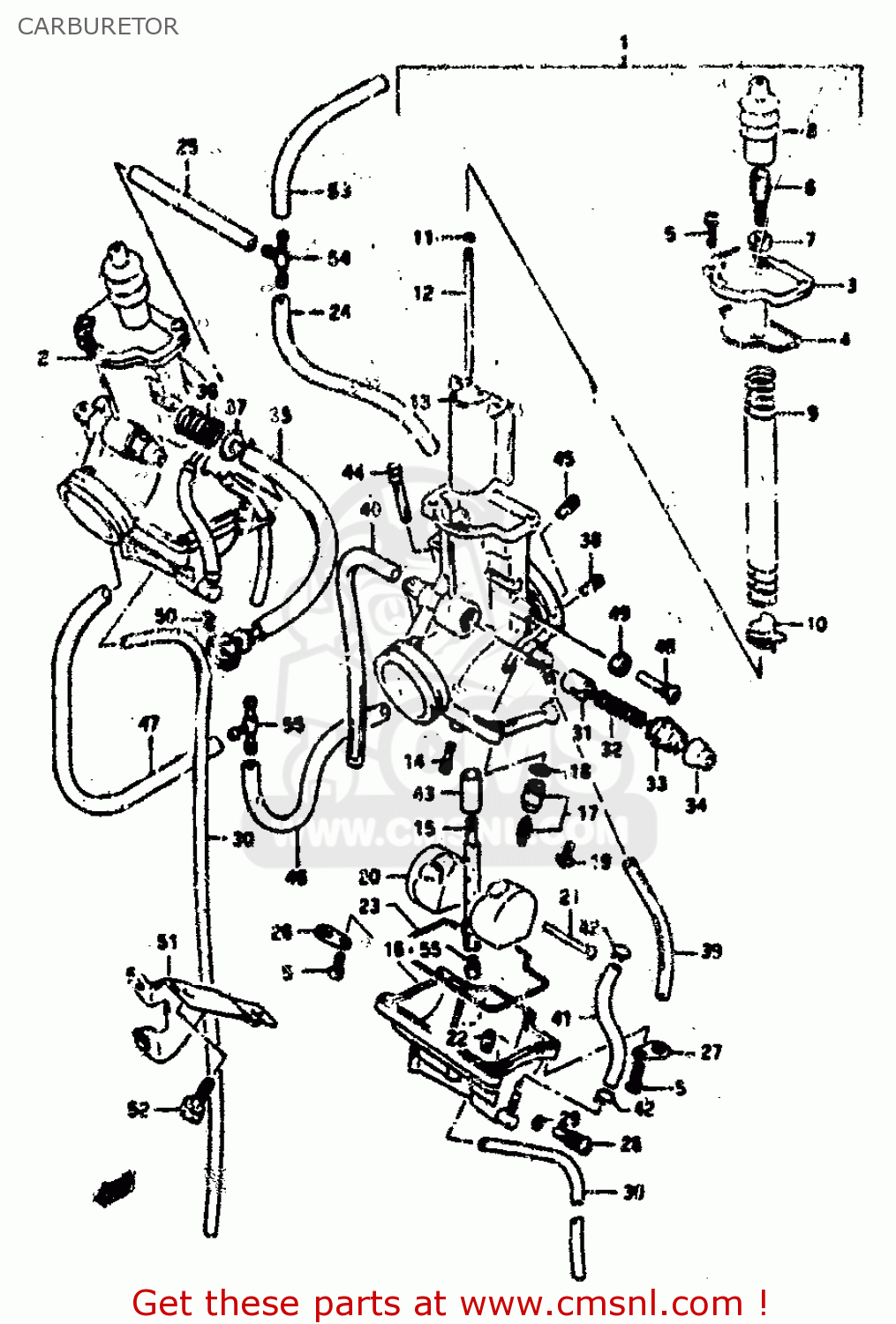

Carburetor diagram RGV250L 1991 (M) (E02 E21 E22 E24)
CARBURETOR RGV250L 1991 (M) (E02 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320122D20
ref: 1-1
E2,E21,E24
CARBURETOR ASSY, LH
€ 415.50
1-2
1320122D30
ref: 1-2
E22
CARBURETOR ASSY, LH
€ 0.00
2-1
1320222D20
ref: 2-1
E2,E21,E24
CARBURETOR ASSY, RH
€ 415.50
2-2
1320222D30
ref: 2-2
E22
CARBURETOR ASSY, RH
€ 0.00
3
1326112C60
ref: 3
CAP, TOP
€ 18.50
4
1325126C00
ref: 4
O RING,TOP CAP
€ 9.50
5
1360205A40
ref: 5
SCREW
€ 1.50
6
1357741612
ref: 6
ADJUSTER,CABLE
€ 8.00
7
1366116600
ref: 7
NUT
€ 5.00
8
1368141510
ref: 8
CAP,CABLE ADJUSTER
€ 11.00
9
1357322D00
ref: 9
SPRING
€ 10.50
10
1342426C00
ref: 10
RING
€ 7.50
11
1339431210
ref: 11
CLIP,NEEDLE
€ 3.50
12
1338322D20
ref: 12
NEEDLE,JET
€ 15.00
13
1355112C00
ref: 13
VALVE,PISTON(CA:1.5)
€ 167.50
14-1
0949227003
ref: 14-1
JET,PILOT(27.5)
€ 12.00
14-2
0949220008
ref: 14-2
E22
JET,PILOT 20
€ 10.00
15-1
0949400614
ref: 15-1
JET,NEEDLE(O-8)
€ 26.00
15-2
0949400615
ref: 15-2
E22
JET,NEEDLE(O-9)
€ 26.00
15-3
0949400668
ref: 15-3
E22
JET,NEEDLE(P-0)
€ 31.00
16-1
0949154002
ref: 16-1
JET,MAIN(270)
€ 11.50
16-2
0949156003
ref: 16-2
JET,MAIN(280)
€ 14.50
17
1337012C10
ref: 17
VALVE ASSY,NEE
€ 68.50
18
1337444080
ref: 18
O-RING,NEEDLE VALVE
€ 6.00
19
1360243410
ref: 19
SCREW
€ 2.50
20
1325012C00
ref: 20
FLOAT
€ 41.50
21
1325492311
ref: 21
PIN,FLOAT
€ 2.00
22-1
0949155004
ref: 22-1
JET,MAIN(55)
€ 11.50
22-2
0949135012
ref: 22-2
JET,POWER(35)
€ 11.50
23
1367212C00
ref: 23
GASKET,FLOAT CAHMBER (NAS)
€ 13.00
24
1368313A00
ref: 24
LH L:250 175
HOSE
€ 12.50
25
1368313A00
ref: 25
RH L:250 100
HOSE
€ 12.50
26
1369336500
ref: 26
PLATE,CARBURETOR
€ 3.50
27
1369330D10
ref: 27
PLATE
€ 0.00
28
1324702340
ref: 28
PLUG,DRAIN
€ 5.50
29
1327802340
ref: 29
O RING
€ 1.50
30
1368440A00
ref: 30
L:650 475
HOSE(3X5X650)
€ 7.50
31
1341101010
ref: 31
PLUNGER,STARTER
€ 14.00
32
1341737200
ref: 32
SPRING
€ 3.00
33
1341843410
ref: 33
HOLDER,GUIDE
€ 6.50
34
1368104010
ref: 34
CAP
€ 3.00
35
1326712C10
ref: 35
ADJUSTER,THROTTLE STOP
€ 43.00
36
1326812C00
ref: 36
SPRING
€ 6.00
37
1354712C00
ref: 37
WASHER
€ 7.00
38-1
0949326004
ref: 38-1
E22
JET,AIR(1.3)
€ 14.50
38-2
0949322005
ref: 38-2
E2,E21,E24
JET,AIR(1.1)
€ 12.00
39
1368440A00
ref: 39
L:650 100
HOSE(3X5X650)
€ 7.50
40
1368322D10
ref: 40
HOSE
€ 3.00
41
1321812C20
ref: 41
HOSE SET
€ 19.00
42
1367112C00
ref: 42
CLIP
€ 2.50
43
1345212C00
ref: 43
RING
€ 5.50
44
1323612C00
ref: 44
FILTER
€ 5.00
45
0949360004
ref: 45
JET,AIR(0.6)
€ 11.00
46
1368313A00
ref: 46
LH L:250 125
HOSE
€ 12.50
47
1368313A00
ref: 47
RH L:250 100
HOSE
€ 12.50
48
1324722D00
ref: 48
SCREW,ADJUSTER
€ 6.00
49
1360747070
ref: 49
NUT
€ 4.00
50
1361712C00
ref: 50
E RING
€ 2.50
51
1362112C00
ref: 51
BRACKET,ADJUSTER
€ 19.00
52
0113706168
ref: 52
BOLT
€ 2.00
53
1368313A00
ref: 53
L:250 80
HOSE
€ 12.50
54
1368316720
ref: 54
NIPPLE
€ 12.50
55-1
0949146001
ref: 55-1
OPT
JET,MAIN(230)
€ 6.50
55-2
0949148003
ref: 55-2
OPT
JET,MAIN(240)
€ 13.00
55-3
0949152D01
ref: 55-3
OPT
JET, MAIN (260)
€ 0.00
55-4
0949156003
ref: 55-4
OPT
JET,MAIN(280)
€ 14.50
55-5
0949158002
ref: 55-5
OPT
JET,MAIN(290)
€ 7.50
55-6
0949160007
ref: 55-6
OPT
JET,MAIN(300)
€ 9.50
55-7
0949162005
ref: 55-7
OPT
JET,MAIN(310)
€ 10.50
55-8
0949164002
ref: 55-8
OPT
JET,MAIN(320)
€ 8.50
55-9
0949166002
ref: 55-9
OPT
JET,MAIN(330)
€ 10.50
