COWLING FITTING SET
RGV250L 1991 (M) (E02 E21 E22 E24)

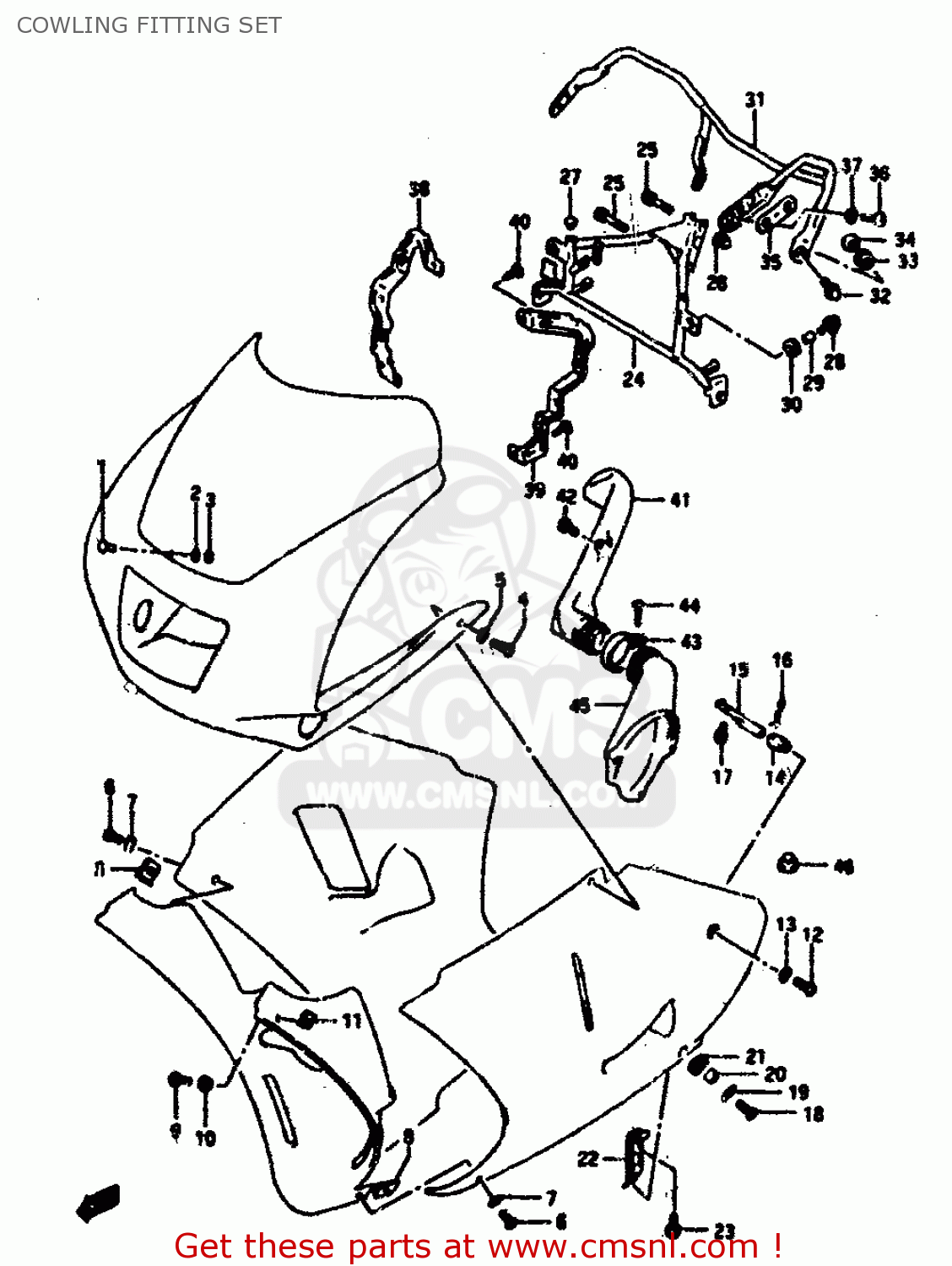

Cowling fitting set diagram RGV250L 1991 (M) (E02 E21 E22 E24)
COWLING FITTING SET RGV250L 1991 (M) (E02 E21 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
€ 2.50
2
0932004007
ref: 2
CUSHION
€ 3.00
3
0914804D32
ref: 3
NUT
€ 0.00
4
0913905044
ref: 4
SCREW(5X16)
€ 5.00
5
0916107009
ref: 5
WASHER(7X13X0.6)
€ 3.00
6
0913905043
ref: 6
SCREW(5X16)
€ 5.00
7
0916107009
ref: 7
WASHER(7X13X0.6)
€ 3.00
8
9448412C11
ref: 8
NUT,RH & CTR UNDER COWLING
€ 6.50
9
0324205165
ref: 9
SCREW
€ 1.50
10
0916105017
ref: 10
WASHER(5.2X14X1.5)
€ 3.00
11
0914805004
ref: 11
NUT
€ 1.50
12
0913906053
ref: 12
SCREW(6X18)
€ 4.50
13
0916006053
ref: 13
WASHER
€ 2.00
14
9452012C00
ref: 14
PLUG,UNDER COWL FTG,CTR
€ 9.00
15
9452212C00
ref: 15
PIPE,UNDER COWL FTG CTR
€ 8.00
16
9452312C00
ref: 16
PIN,UNDER COWLING FITTING PIPE
€ 2.50
17
0113706205
ref: 17
BOLT
€ 2.50
18
0913906053
ref: 18
SCREW(6X18)
€ 4.50
19
0916006056
ref: 19
WASHER(6.5X18X1)
€ 2.00
20
0918006114
ref: 20
SPACER (6.1X9X10)
€ 3.00
21
0932009016
ref: 21
CUSHION
€ 2.50
22-1
9474022D01
ref: 22-1
E1,E2,E21,E24
BRACKET, UNDER LH
€ 20.00
22-2
9474022D01
ref: 22-2
E22
BRACKET, UNDER LH
€ 20.00
22-3
9474022D10
ref: 22-3
E22
BRACKET,UNDER COWLING,R
€ 20.00
23
0911606027
ref: 23
BOLT
€ 2.00
24
9451022D00
ref: 24
BRACE,COWL
€ 117.50
25
0113708355
ref: 25
BOLT
€ 2.00
26
0831321085
ref: 26
NUT ,8MM
€ 2.50
27
0925008013
ref: 27
CAP(OD:12)
€ 2.00
28
0911606143
ref: 28
BOLT 6X20
€ 2.00
29
0918006114
ref: 29
SPACER (6.1X9X10)
€ 3.00
30
0932008047
ref: 30
CUSHION
€ 4.00
31
9452022D00
ref: 31
BRACE, REAR VIEW MIRROR
€ 102.00
32
0911606143
ref: 32
BOLT 6X20
€ 2.00
33
0932009009
ref: 33
CUSHION
€ 5.00
34
0916906062
ref: 34
WASHER
€ 3.00
35
9457622D00
ref: 35
CUSHION,RR VIEW MIRRORR
€ 6.00
36
0913606004
ref: 36
SCREW(6X12)
€ 2.00
37
0916106023
ref: 37
WASHER(6.2X19X1.5)
€ 3.50
38
9441822D00
ref: 38
BRACKET,HEADLAMP FIT,R
€ 26.00
39
9441922D00
ref: 39
BRACKET,HEADLAMP FIT,L
€ 22.50
40
0354105165
ref: 40
SCREW
€ 1.50
41
9445412C01
ref: 41
BODY,AIR DUCT COWL NO.1
€ 29.50
42
0214205124
ref: 42
SCREW, FRONT & REAR
€ 1.50
43
0940236403
ref: 43
CLAMP
€ 4.50
44
0321104255
ref: 44
SCREW 4X25
€ 2.00
45
9445522D00
ref: 45
BODY,AIR DUCT COWL NO.2
€ 31.00
46
0932110018
ref: 46
CUSHION
€ 5.00
