CRANKCASE (RM125A
RM125 1975 (M) USA (E03)

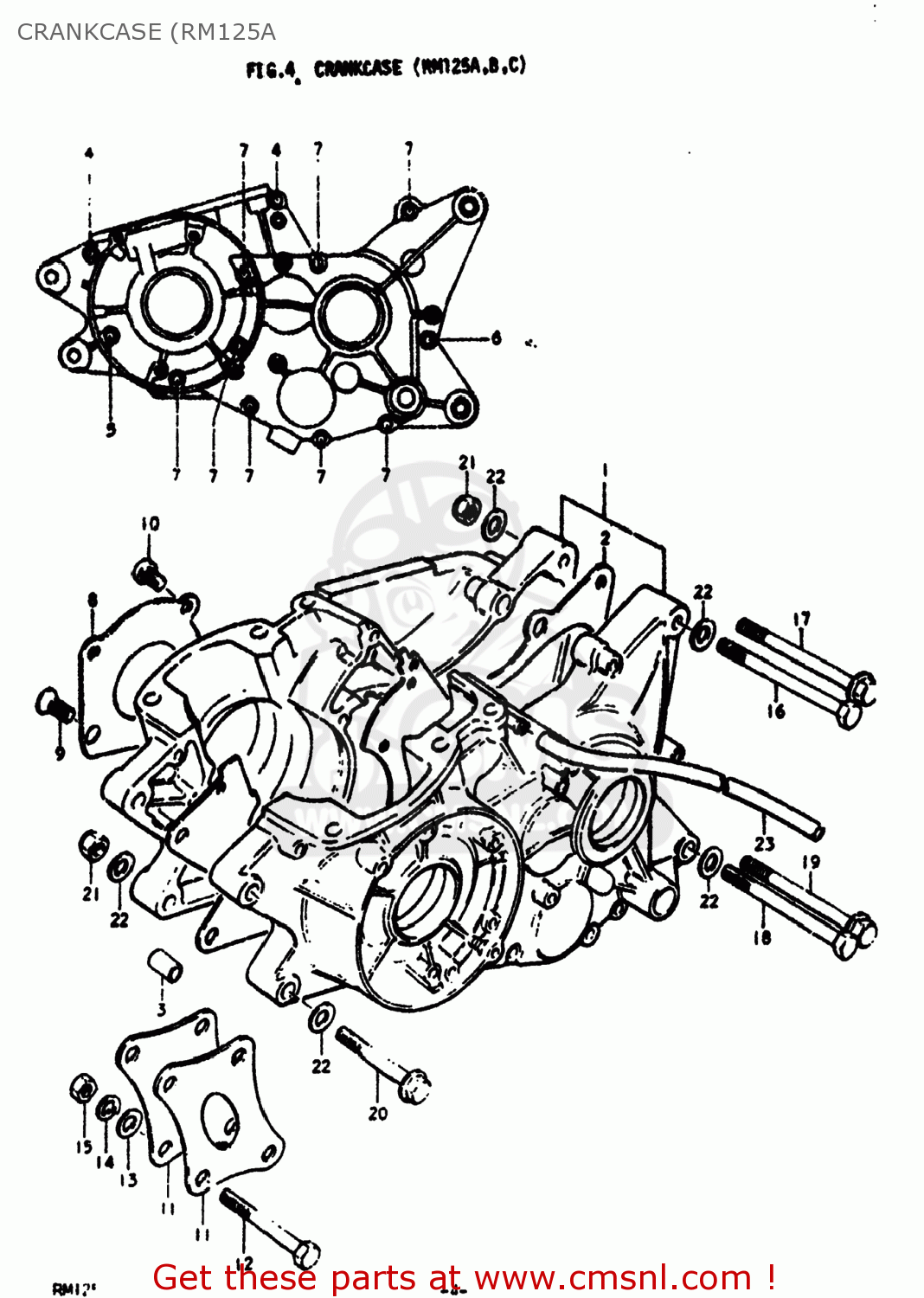

Crankcase (rm125a diagram RM125 1975 (M) USA (E03)
CRANKCASE (RM125A RM125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130041830
ref: 1-1
11300-41831
CRANKCASE SET
€ 237.50
1-2
1130041840
ref: 1-2
CRANKCASE SET
€ 144.50
2
1148141300
ref: 2
11481-41301
GASKET,CRANKCASE (MCA)
€ 13.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206358
ref: 4
02112-06357
SCREW (6X35)
€ 2.50
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0211206508
ref: 6
02112-06507
SCREW
€ 2.50
7
0211206608
ref: 7
02112-06607
SCREW 6X60
€ 2.50
8
1252129102
ref: 8
PLATE,OIL RESERVOIR
€ 5.00
9
0212206128
ref: 9
02122-06127
SCREW
€ 3.00
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
4199141300
ref: 11
PLATE,ENGINE MOUNTING
€ 5.50
12
0110708708
ref: 12
01500-0870B
BOLT
€ 2.50
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0831012108
ref: 15
08310-00107
NUT
€ 2.50
16
0910008024
ref: 16
09100-08228
BOLT 8X105
€ 4.00
17
0910308023
ref: 17
09103-08097
BOLT
€ 3.00
18
0910008023
ref: 18
BOLT 8X100
€ 2.00
19
0910308009
ref: 19
09103-08070
BOLT
€ 5.00
20
0151708708
ref: 20
01550-08707
BOLT (8X70)
€ 2.00
21
0915908020
ref: 21
NUT
€ 2.50
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
23
0934305021
ref: 23
09352-50823-00B
HOSE
€ 13.00
