FRONT WHEEL (RM125M
RM125 1975 (M) USA (E03)

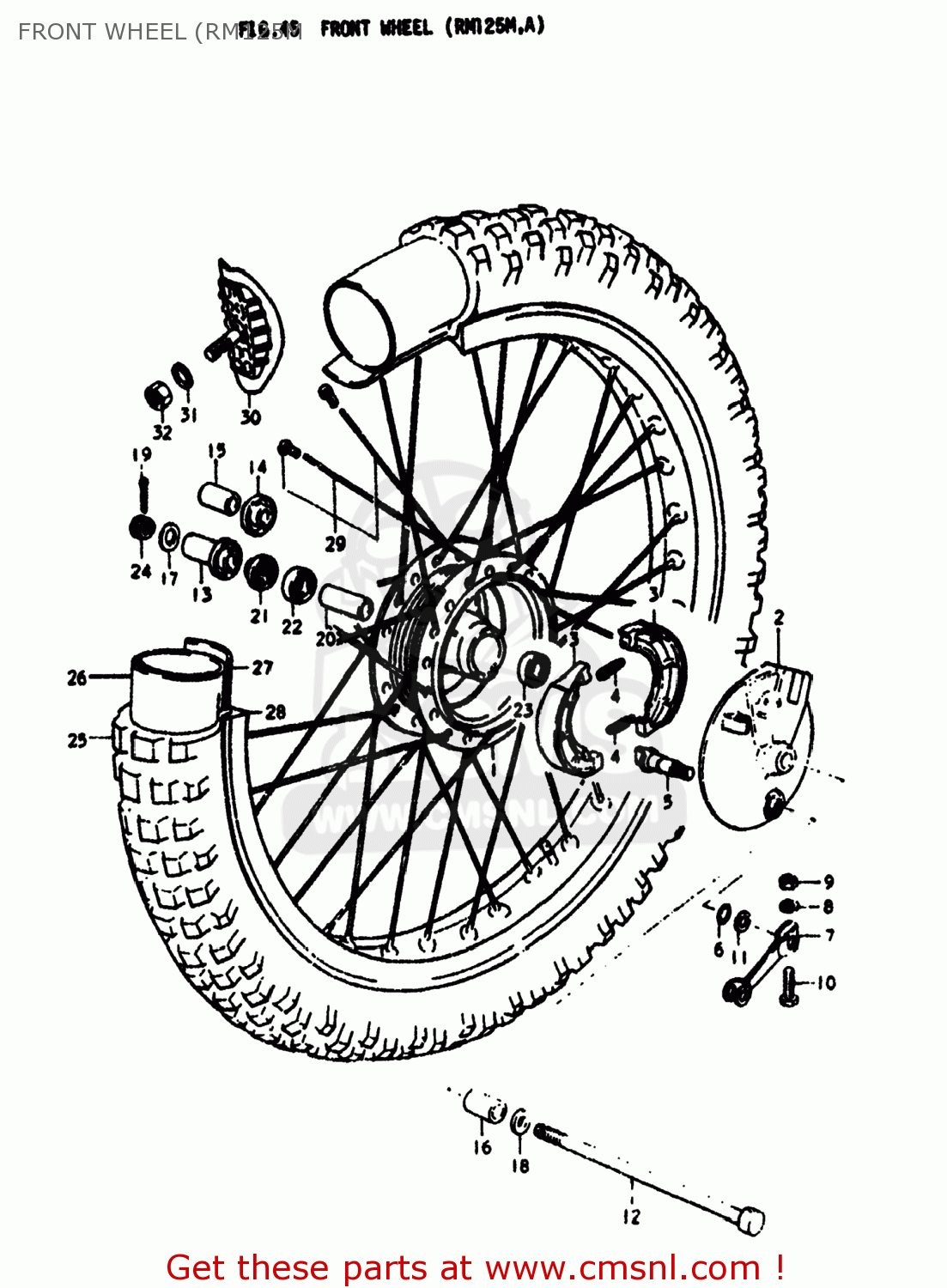

Front wheel (rm125m diagram RM125 1975 (M) USA (E03)
FRONT WHEEL (RM125M RM125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411016501
ref: 1
54110-16502
HUB,FRONT
€ 93.50
2
5421032101
ref: 2
PANEL,FRONT HUB
€ 54.50
3
5441007002
ref: 3
54401-07810
SHOE,BRAKE
€ 35.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444101002
ref: 5
CAM,FR BRAKE
€ 19.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
5445116500
ref: 7
LEVER,FRONT BRAKE CAM
€ 13.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0831111068
ref: 9
08310-00067
NUT
€ 2.50
10
0910006050
ref: 10
09100-06150
BOLT
€ 1.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
€ 1.50
12
5471116502
ref: 12
54711-16504
AXLE,FRONT
€ 29.50
13
5474016502
ref: 13
SPACER,FRONT AXLE,RIGHT
€ 9.00
13
5474016502
ref: 13
SPACER,FRONT AXLE,RIGHT
€ 9.00
14
5474041300
ref: 14
SPACER,FRONT AXLE,RIGHT
€ 4.50
14
5474041300
ref: 14
SPACER,FRONT AXLE,RIGHT
€ 4.50
15
0918012072
ref: 15
SPACER
€ 3.50
15
0918012072
ref: 15
SPACER
€ 3.50
16
0918012063
ref: 16
SPACER(12X20X34.5)
€ 4.50
16
0918012063
ref: 16
SPACER(12X20X34.5)
€ 4.50
17
0832221128
ref: 17
08322-01127
WASHER
€ 2.00
18
0918012058
ref: 18
SPACER
€ 2.00
19
0411130308
ref: 19
04111-3030A
COTTER PIN
€ 1.50
20
5473007000
ref: 20
SPACER,FRONT HUB BEARING
€ 9.00
21
0928418001
ref: 21
OIL SEAL(17X38X5)
€ 12.50
22
0811363010
ref: 22
BEARING
€ 9.50
23
0814363010
ref: 23
08143-63017
BEARING, RH
€ 14.50
24
0831431128
ref: 24
08314-3112A
NUT 12MM
€ 2.00
25-1
5510016511
ref: 25-1
55100-14230
TIRE,FRONT
€ 0.00
25-2
5510041310
ref: 25-2
TIRE,FRONT
€ 36.00
26
5520016510
ref: 26
TUBE
€ 32.50
27
5526116510
ref: 27
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
28
5531128322
ref: 28
RIM,FRONT WHEEL
€ 83.00
29-1
5530116823
ref: 29-1
55300-41811
SPOKE SET
€ 52.00
29-2
5530041810
ref: 29-2
55300-41811
SPOKE SET,FRONT
€ 52.00
30
6527030001
ref: 30
65270-43D00
STOPPER,BEAD
€ 30.50
31
0832211088
ref: 31
08322-01087
WASHER
€ 2.00
32
0831211088
ref: 32
08310-00087
NUT
€ 2.00
