CRANKCASE (RM125M)
RM125 1976 (A) USA (E03)

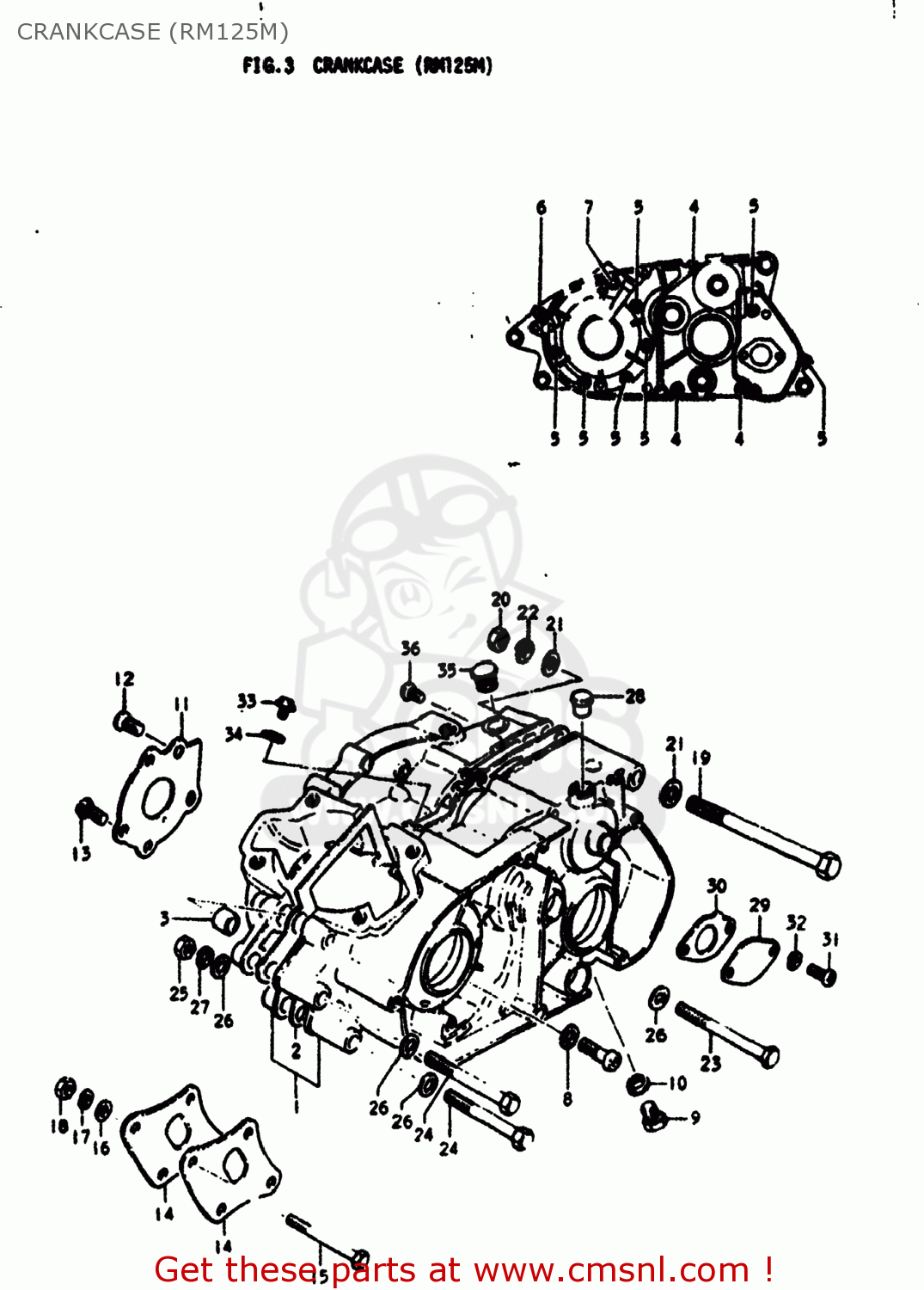

Crankcase (rm125m) diagram RM125 1976 (A) USA (E03)
CRANKCASE (RM125M) RM125 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130028872
ref: 1
CRANKCASE SET
€ 0.00
1
1130028872
ref: 1
CRANKCASE SET
€ 0.00
2
1148128000
ref: 2
11481-28001
GASKET,CRANKCASE (MCA)
€ 16.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206657
ref: 4
SCREW
€ 2.00
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0211206808
ref: 6
02112-06807
SCREW 6X80
€ 3.00
7
0211206608
ref: 7
02112-06607
SCREW 6X60
€ 2.50
8
0832211068
ref: 8
08322-0106B
WASHER 6MM
€ 2.00
9
0924710001
ref: 9
PLUG
€ 3.00
10
0916810002
ref: 10
GASKET(10X14X3.6) (NAS)
€ 2.00
11
1252128002
ref: 11
PLATE,OIL RESERVOIR
€ 4.00
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
0211206168
ref: 13
02112-06167
SCREW
€ 2.50
14
4159128000
ref: 14
PLATE,ENGINE MOUNTING
€ 7.50
15
0111208708
ref: 15
01500-0870B
BOLT
€ 2.50
16
0832211088
ref: 16
08322-01087
WASHER
€ 2.00
17
0832121088
ref: 17
08321-01087
LOCK WASHER
€ 2.00
18
0831211088
ref: 18
08310-00087
NUT
€ 2.00
19
0910010051
ref: 19
09100-10274
BOLT
€ 6.50
20
0831212108
ref: 20
08310-00107
NUT
€ 2.50
21
0832211108
ref: 21
08322-01107
WASHER
€ 2.50
22
0832121108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0112208808
ref: 23
01500-0880B
HEXAGON BOLT 8X80
€ 3.50
24
0112208708
ref: 24
01500-0870B
BOLT
€ 2.50
25
0831211088
ref: 25
08310-00087
NUT
€ 2.00
26
0832211088
ref: 26
08322-01087
WASHER
€ 2.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0925010001
ref: 28
CAP(OD:14)
€ 1.50
28
0925010001
ref: 28
CAP(OD:14)
€ 1.50
29
1674516701
ref: 29
CAP,OIL PUMP DRIVE SHAFT
€ 10.00
30
1673103100
ref: 30
16731-03101
GASKET,OIL PUMP (MCA)
€ 2.50
31
0211105127
ref: 31
02112-05127
Screw
€ 2.50
32
0832121058
ref: 32
08321-0105A
LOCK WASHER
€ 2.00
33
0151106108
ref: 33
01550-06107
BOLT
€ 2.50
34
0916806004
ref: 34
GASKET(6.2X11X1).2 (NAS)
€ 1.50
35
0925014002
ref: 35
Plug
€ 4.50
36
0211206068
ref: 36
02112-06067
SCREW,6X6
€ 2.00
