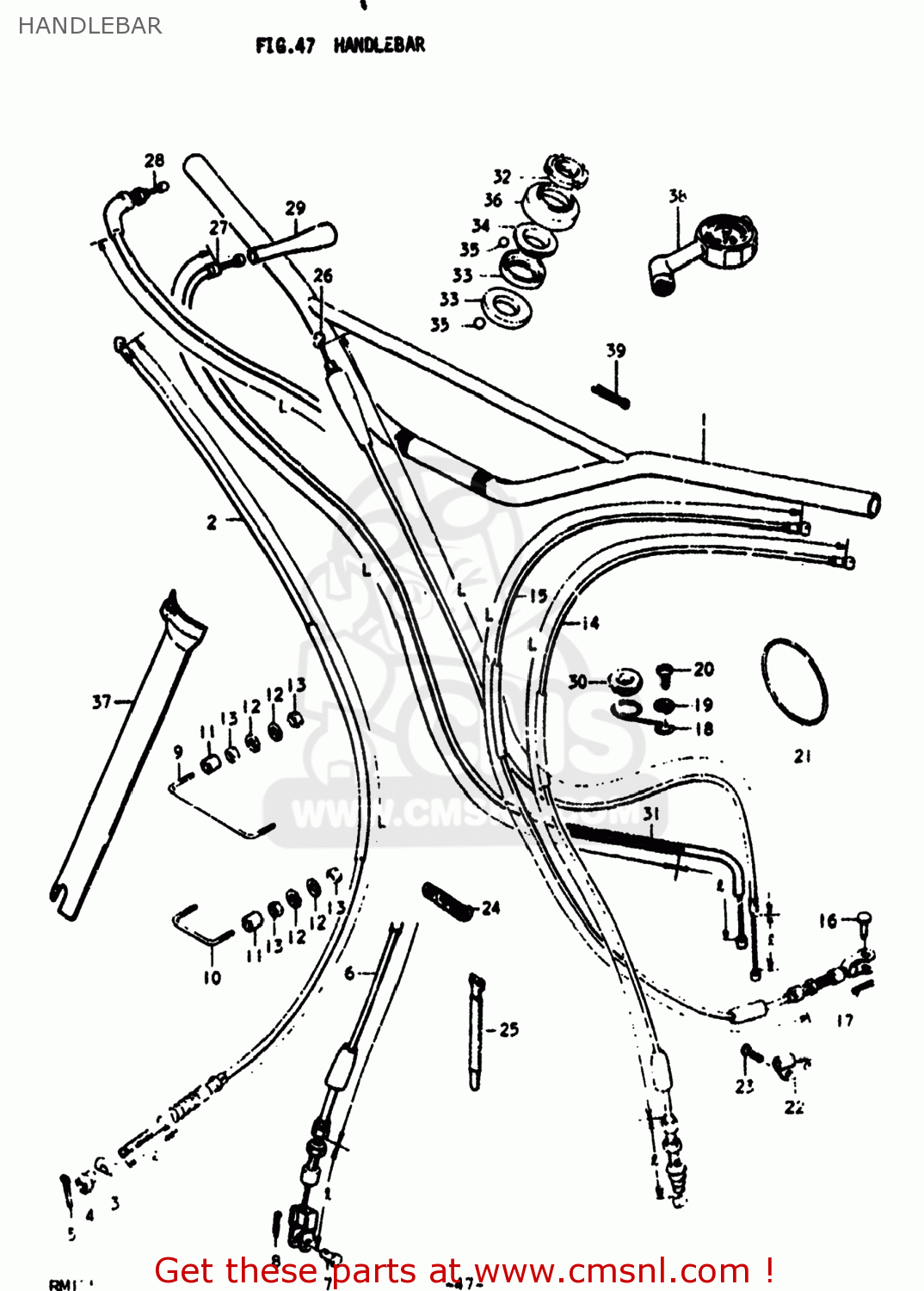

HANDLEBAR

ref

part #

description

quantity

1-1

5611041000
ref: 1-1

HANDLEBAR

€ 30.50

1-2

5611041301
ref: 1-2
56110-41311

HANDLEBAR

€ 0.00

1-3

5611041110
ref: 1-3
56110-41111

HANDLEBAR

€ 34.50

2-1

5810041000
ref: 2-1

CABLE ASSEMBLY,FRONT BRAKE

€ 26.00

2-2

5810041002
ref: 2-2

CABLE ASSEMBLY,FRONT BRAKE

€ 26.00

3

0920913003
ref: 3
09209-13018

PIN

€ 3.50

4

0915006001
ref: 4
09150-06010

NUT

€ 3.50

5

0411120158
ref: 5
04111-2015A

PIN

€ 1.50

6

5810041300
ref: 6
58100-37200

CABLE ASSEMBLY,FRONT BRAKE

€ 33.50

7

0920005001
ref: 7

PIN(L:17.5)

€ 1.50

8

0411120158
ref: 8
04111-2015A

PIN

€ 1.50

9

5862541000
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.50

10

5862641000
ref: 10

CLAMP,CABLE

€ 5.50

10

5862641000
ref: 10

CLAMP,CABLE

€ 5.50

11

0930604002
ref: 11

BUSHING

€ 1.00

11

0930604002
ref: 11

BUSHING

€ 1.00

12

0832221038
ref: 12
08322-01037

WASHER

€ 2.00

12

0832221038
ref: 12
08322-01037

WASHER

€ 2.00

13

0831111038
ref: 13
08310-0003B

NUT

€ 2.00

13

0831111038
ref: 13
08310-0003B

NUT

€ 2.00

14

5820028301
ref: 14

CABLE ASSY,CLUTCH

€ 26.50

15

5820041301
ref: 15

CABLE ASSY,CLUTCH

€ 28.50

16

0920006004
ref: 16

PIN(L:13)

€ 1.50

17

0411120158
ref: 17
04111-2015A

PIN

€ 1.50

18

0940313401
ref: 18

CLIP

€ 3.50

19

0832121068
ref: 19
08321-01067

LOCK WASHER

€ 2.50

20

0211206128
ref: 20
02112-06127

SCREW 6X12

€ 2.00

21

0928076001
ref: 21

O RING(D:2.5,ID:68.5)

€ 2.50

22

5863441300
ref: 22

STOPPER,CLUTCH CABLE

€ 9.00

23

0211206108
ref: 23
02112-06107

SCREW

€ 1.50

24

0940406401
ref: 24
09404-06432

CLAMP L:35

€ 2.50

25-1

0940711302
ref: 25-1
09407-18301

CLAMP

€ 6.00

25-2

0940718301
ref: 25-2

CLAMP

€ 6.00

26

5831041000
ref: 26

CABLE ASSEMBLY,THROTTLE

€ 10.00

27

5831041300
ref: 27
58300-41X02

CABLE ASSEMBLY,THROTTLE

€ 23.50

28

5830041612
ref: 28
58300-41X02

CABLE ASSEMBLY,THROTTLE

€ 23.50

29

5833340000
ref: 29

SEAL

€ 1.50

30

0930812002
ref: 30

GROMMET

€ 2.00

31

5839927100
ref: 31

PROTECTOR,CABLE

€ 10.50

32

5163128000
ref: 32

NUT,STEERING STEM(25X44X10)

€ 12.50

33

5161133002
ref: 33

LACE,STEERING INNER LWR

€ 7.00

34

5162130001
ref: 34

LACE,STEERING OUTER UPR

€ 14.00

35

0611108003
ref: 35

BALL

€ 1.50

36

5164330000
ref: 36

DUST SEAL,STEERING UPR

€ 15.50

37

5120140001
ref: 37

PROTECTOR

€ 3.50

38

9620041310
ref: 38
96200-41330

GAUGE ASSEMBLY,AIR PRESSURE

€ 77.50

39

0411125258
ref: 39
04111-2530A

COTTER PIN

€ 1.50

all assemblies
