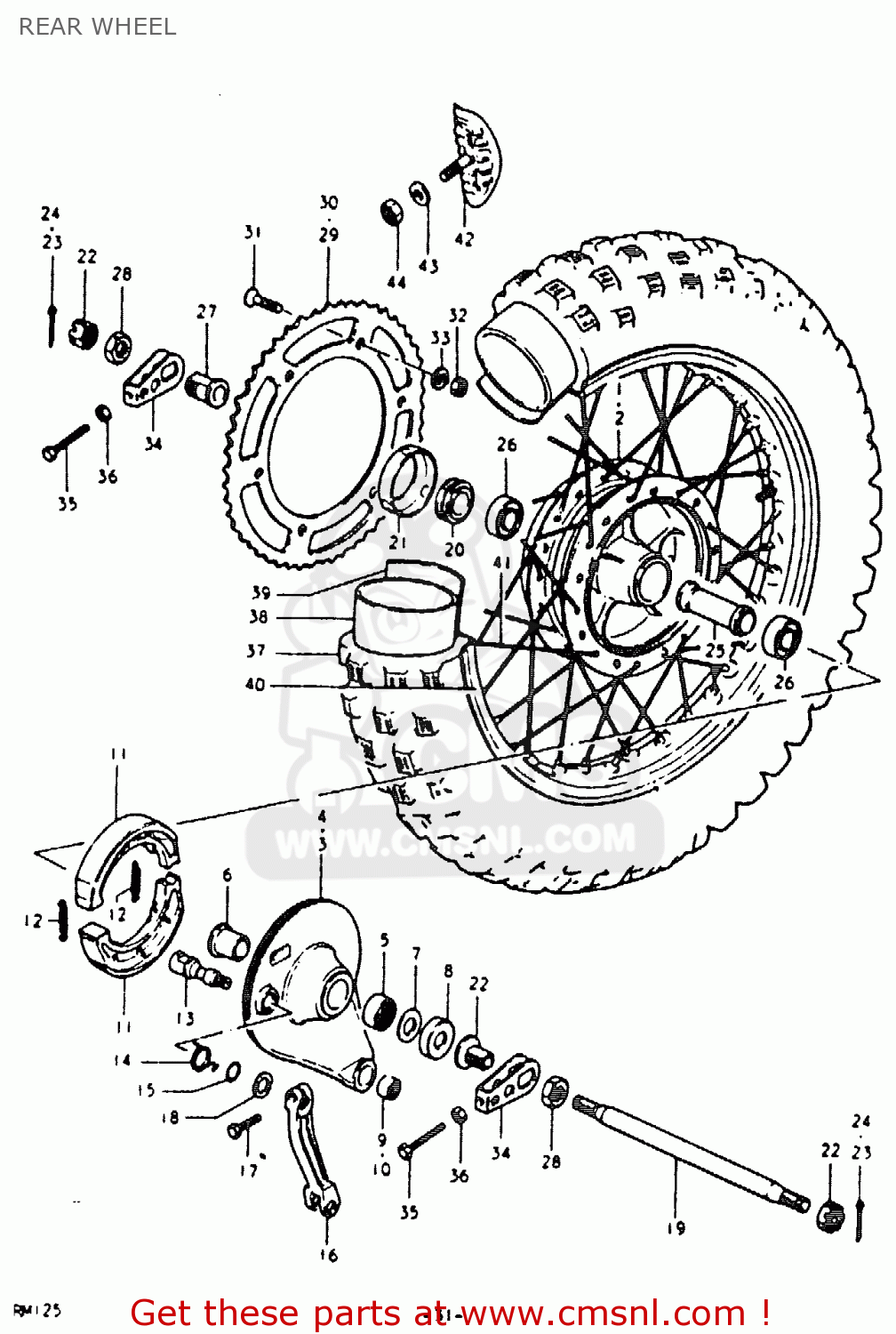

REAR WHEEL

ref

part #

description

quantity

2

6411040201
ref: 2

HUB,REAR

€ 50.50

4

6420041840
ref: 4

PANEL SET,REAR HUB

€ 80.50

5

0926322025
ref: 5

BEARING(22X29X25)

€ 44.00

6

6421340300
ref: 6

SPACER,REAR HUB PANEL

€ 28.00

7

0916015028
ref: 7

WASHER

€ 2.00

8

6484540300
ref: 8

COVER, PANEL DUST SEAL

€ 7.50

10

6435240400
ref: 10

SPHERICAL BEARING,TORQUE

€ 69.50

11

6441040200
ref: 11

SHOE,BRAKE

€ 32.00

12

0944307001
ref: 12

SPRING(L:34)

€ 2.50

13

5444101002
ref: 13

CAM,FR BRAKE

€ 20.50

14

0944830005
ref: 14

SPRING

€ 26.50

15

0928012001
ref: 15

O RING(D:2.5,ID:11.4)

€ 2.50

16

6445140200
ref: 16

LEVER,RR BRAKE CAM

€ 601.00

17

0110706258
ref: 17

BOLT

€ 2.00

18

0916012011
ref: 18
12.5*20*1

WASHER(12.5X20X1)

€ 1.50

19

6471140200
ref: 19

AXLE,REAR

€ 44.50

20

6475040200
ref: 20

SPACER,REAR AXLE,RIGHT

€ 9.00

21

6475240200
ref: 21

HOLDER,REAR AXLE SPACER

€ 5.00

22

0914114004
ref: 22

NUT

€ 5.00

24

0411130308
ref: 24

COTTER PIN

€ 1.50

25

6473040300
ref: 25

SPACER,REAR HUB BEARING

€ 23.50

26

0812362027
ref: 26

BEARING

€ 14.50

27

6479140200
ref: 27

SPACER,CHAIN ADJUSTER

€ 13.50

28

0914022006
ref: 28

NUT

€ 6.00

30-1

6451140260
ref: 30-1
NT:59

SPROCKET,REAR

€ 87.50

30-2

6451140270
ref: 30-2
NT:50 OPT

SPROCKET,REAR

€ 99.00

30-3

6451140265
ref: 30-3
NT:52 OPT

SPROCKET,REAR

€ 118.50

31

0912008004
ref: 31

SCREW(8X33.5)

€ 3.00

32

0831931088
ref: 32

NUT

€ 2.50

33

0832211088
ref: 33

WASHER

€ 2.00

34

6141040200
ref: 34

ADJUSTER,CHAIN

€ 19.00

35

0910408006
ref: 35

BOLT

€ 3.00

36

0831012088
ref: 36

NUT

€ 2.00

37

6510040230
ref: 37

TIRE

€ 0.00

38

6520041330
ref: 38

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

39

6526133030
ref: 39

PROTECTOR,INNER TUBE

€ 5.50

40

6531140200
ref: 40

RIM,REAR WHEEL

€ 119.00

41-2

6532040201
ref: 41-2
F.NO.102503~

SPOKE SET,REAR

€ 54.50

42

6527030001
ref: 42

STOPPER,BEAD

€ 30.50

43

0832211088
ref: 43

WASHER

€ 2.00

44

0831012088
ref: 44

NUT

€ 2.00

all assemblies
