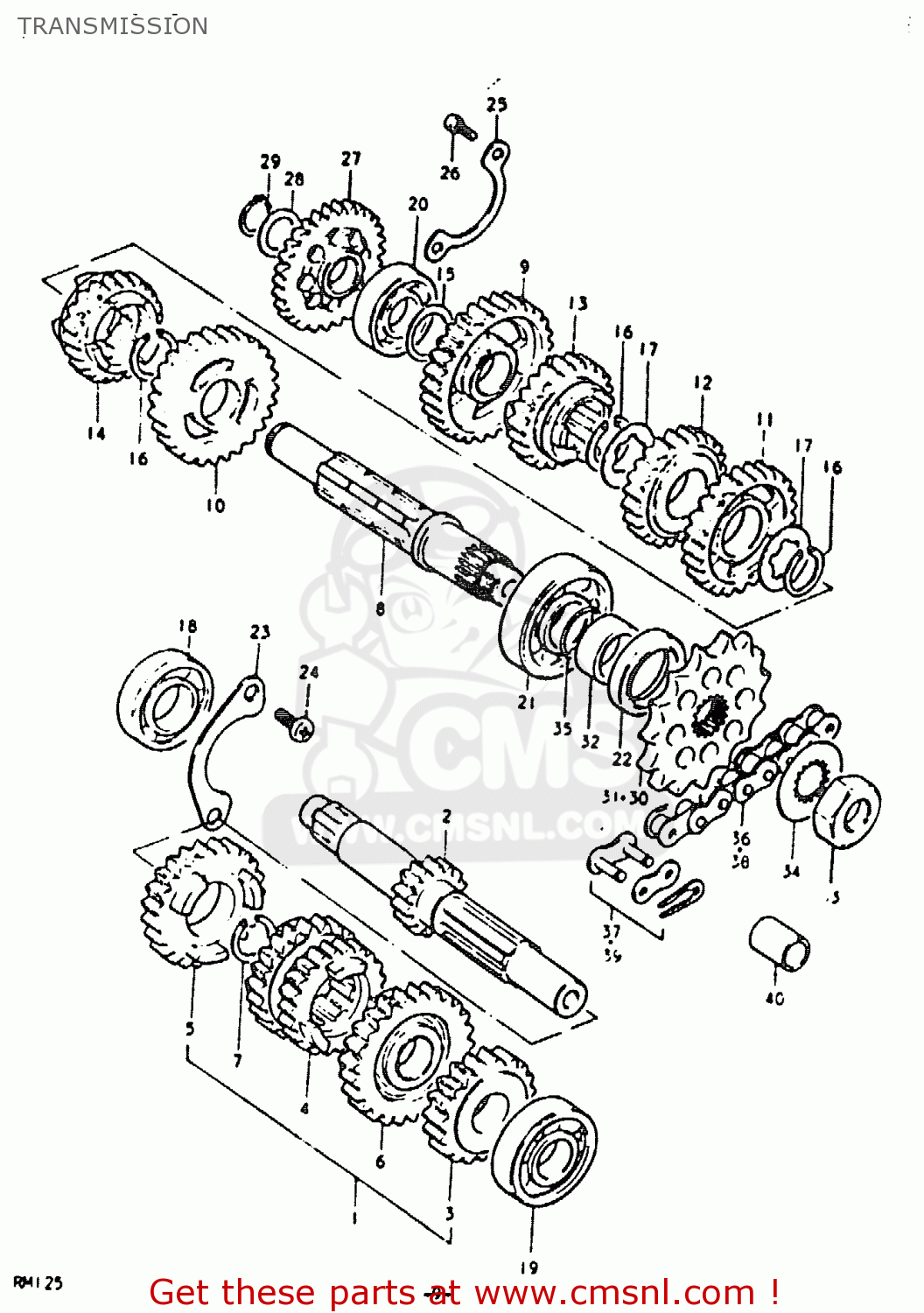

TRANSMISSION

ref

part #

description

quantity

1

2412040200
ref: 1

SHAFT,COUNTER

€ 134.50

2

2412140200
ref: 2

SHAFT,COUNTER

€ 55.00

3

2422141301
ref: 3

GEAR,SECOND DRIVE

€ 29.00

4

2423141300
ref: 4

GEAR,THIRD DRIVE

€ 146.00

5

2425141300
ref: 5

GEAR,FIFTH DRIVE

€ 103.50

6

2426041301
ref: 6

GEAR,SIXTH DRIVE

€ 55.50

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8

2413141302
ref: 8

SHAFT,DRIVE

€ 112.00

9

2431041300
ref: 9

GEAR,FIRST DRIVEN

€ 65.50

10

2432141300
ref: 10

GEAR,SECOND DRIVEN

€ 17.00

11

2433141301
ref: 11

GEAR,THIRD DRIVEN

€ 51.50

12

2434141303
ref: 12

GEAR,FOURTH DRIVEN

€ 66.00

13

2435141301
ref: 13

GEAR,FIFTH DRIVEN

€ 68.50

14

2436141300
ref: 14

GEAR,SIXTH DRIVEN

€ 39.50

15

0821115241
ref: 15

WASHER,THRUST

€ 4.00

16

0938020007
ref: 16

CIRCLIP

€ 3.00

17

0916720011
ref: 17

WASHER,LOCK

€ 2.50

18

0811362040
ref: 18

Bearing

€ 28.00

19

0811360020
ref: 19

BEARING

€ 14.00

20

0811362020
ref: 20

BEARING, RH

€ 14.50

21

0926220043
ref: 21

BEARING(20X47X14)

€ 27.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

2475140200
ref: 25

PLATE,DRIVESHAFT BEARING

€ 3.00

26

0211206108
ref: 26

SCREW

€ 1.50

27

2626040200
ref: 27

GEAR,KICK STARTER IDLE

€ 32.50

28

0821115241
ref: 28

WASHER,THRUST

€ 4.00

29

0833131159
ref: 29

CIRCLIP,15MM

€ 2.00

31-1

2751141500
ref: 31-1

SPROCKET,ENGINE

€ 19.00

31-2

2751140200
ref: 31-2
OPT

SPROCKET,ENGINE

€ 23.50

32

0918020039
ref: 32

SPACER(20X25X12.5)

€ 9.50

33

0914016013
ref: 33

NUT

€ 14.00

34

0916720012
ref: 34

WASHER,LOCK

€ 2.50

35

0928020001
ref: 35

O RING(D:1,ID:19.5)

€ 2.00

38

2760040211
ref: 38

CHAIN ASSEMBLY,DRIVE

€ 80.00

39

2762036110
ref: 39

JOINT ASSEMBLY,CHAIN

€ 8.50

40

0932013001
ref: 40

CUSHION

€ 6.00

all assemblies
