CRANKCASE COVER
RM125 1982 (Z) USA (E03)

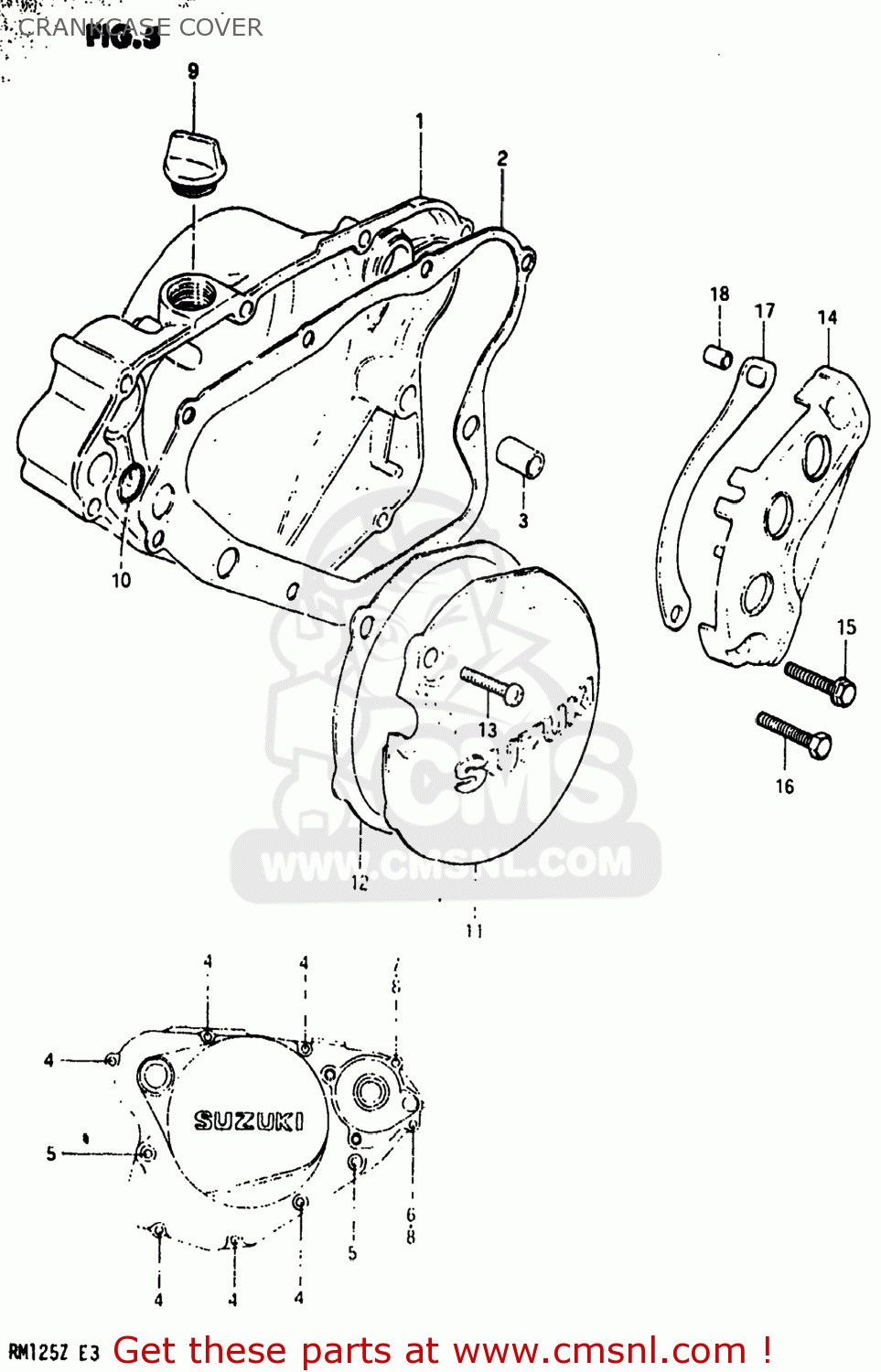

Crankcase cover diagram RM125 1982 (Z) USA (E03)
CRANKCASE COVER RM125 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134114100
ref: 1
COVER,CLUTCH
€ 189.00
2
1148214100
ref: 2
11482-14100-H17
GASKET,CLUTCH COVER (MCA)
€ 15.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0211206758
ref: 6
02112-06757
CROSS SCREW (6 X 75)
€ 3.00
7
0211206858
ref: 7
02112-06857
SCREW 6X85
€ 2.50
8
0211206708
ref: 8
02112-06707
SCREW 6X70
€ 3.00
9
0925920003
ref: 9
09200-20810
PLUG,OIL FILTER
€ 8.00
10
0928015002
ref: 10
O RING(D:1.9,ID:14.5)
€ 3.50
11-1
1135114100
ref: 11-1
COVER,MAGNETO
€ 88.00
11-2
1135114110
ref: 11-2
COVER,MAGNETO
€ 145.50
12-1
1148314100
ref: 12-1
11483-14101
GASKET,MAGNETO COVER (MCA)
€ 3.00
12-2
1148314110
ref: 12-2
11483-14111-H17
GASKET,MAGNETO COVER (NAS)
€ 9.00
13-1
0211206208
ref: 13-1
02112-06207
SCREW
€ 2.00
13-2
0211205168
ref: 13-2
02112-05167
SCREW
€ 2.50
14
1136014100
ref: 14
COVER,ENGINE SPROCKET
€ 56.50
15
0151706408
ref: 15
01550-06407
BOLT
€ 2.50
16
0110706408
ref: 16
01500-0640B
BOLT 6X40
€ 2.00
17-1
2764114100
ref: 17-1
27641-14102
PLATE,CHAIN FRONT GUIDE
€ 50.00
17-2
2764114101
ref: 17-2
27641-14102
PLATE,CHAIN FRONT GUIDE
€ 50.00
18
0918007004
ref: 18
SPACER(6.5X10.5X12)
€ 2.50
