CYLINDER (MODEL Z)
RM125 1982 (Z) USA (E03)

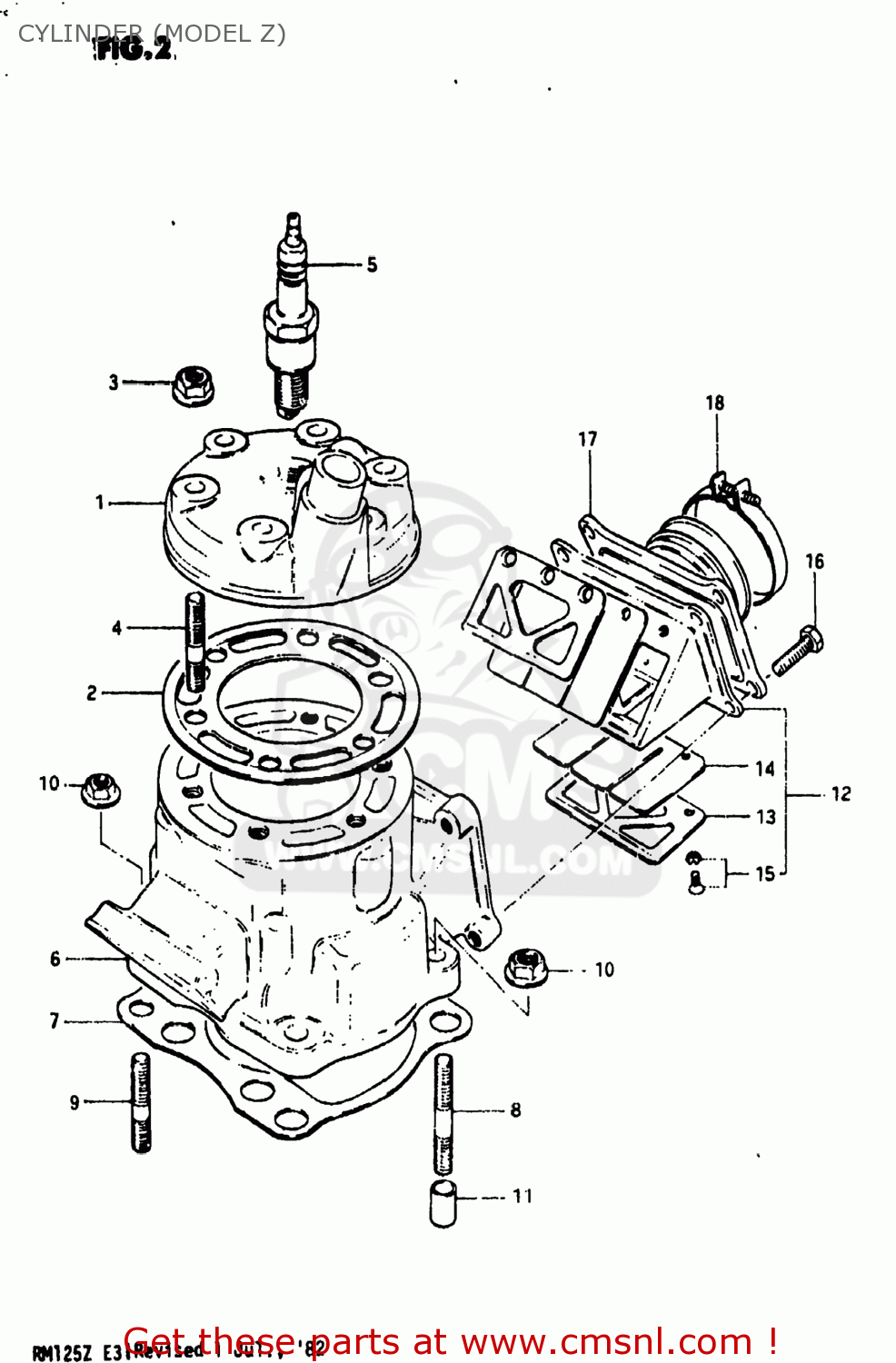

Cylinder (model z) diagram RM125 1982 (Z) USA (E03)
CYLINDER (MODEL Z) RM125 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111114110
ref: 1
HEAD,CYLINDER.
€ 93.00
2
1114114191
ref: 2
11141-14120-H17
GASKET,CYLINDER HEAD (MCA)
€ 26.00
3
0831616085
ref: 3
08316-1008B
NUT 8MM
€ 3.00
4
0910808101
ref: 4
09108-08143
STUD
€ 3.00
5-1
0948200209
ref: 5-1
PLUG,SPARK(NGK B-8EN)
€ 19.50
5-2
0948200099
ref: 5-2
09482-00396-111
SPARK PLUG
€ 3.00
6
1121014110
ref: 6
11210-14121
CYLINDER
€ 424.50
7
1124114110
ref: 7
11241-14110-H17
GASKET,CYLINDER (MCA)
€ 14.50
8
0910808094
ref: 8
09108-08199
STUD
€ 3.00
9
0910808095
ref: 9
09108-08228
STUD
€ 8.50
10
0831616085
ref: 10
08316-1008B
NUT 8MM
€ 3.00
11
0421111169
ref: 11
PIN
€ 2.00
12
1315014110
ref: 12
VALVE ASSEMBLY,REED
€ 109.50
13
1315214110
ref: 13
STOPPER,REED VALVE
€ 4.00
14
1315314110
ref: 14
VALVE,REED
€ 11.50
15
0212253088
ref: 15
SCREW
€ 3.50
16
0110706208
ref: 16
01500-06207
BOLT
€ 2.00
17
1311014100
ref: 17
PIPE,INTAKE
€ 33.00
18
0940250306
ref: 18
CLAMP
€ 6.00
