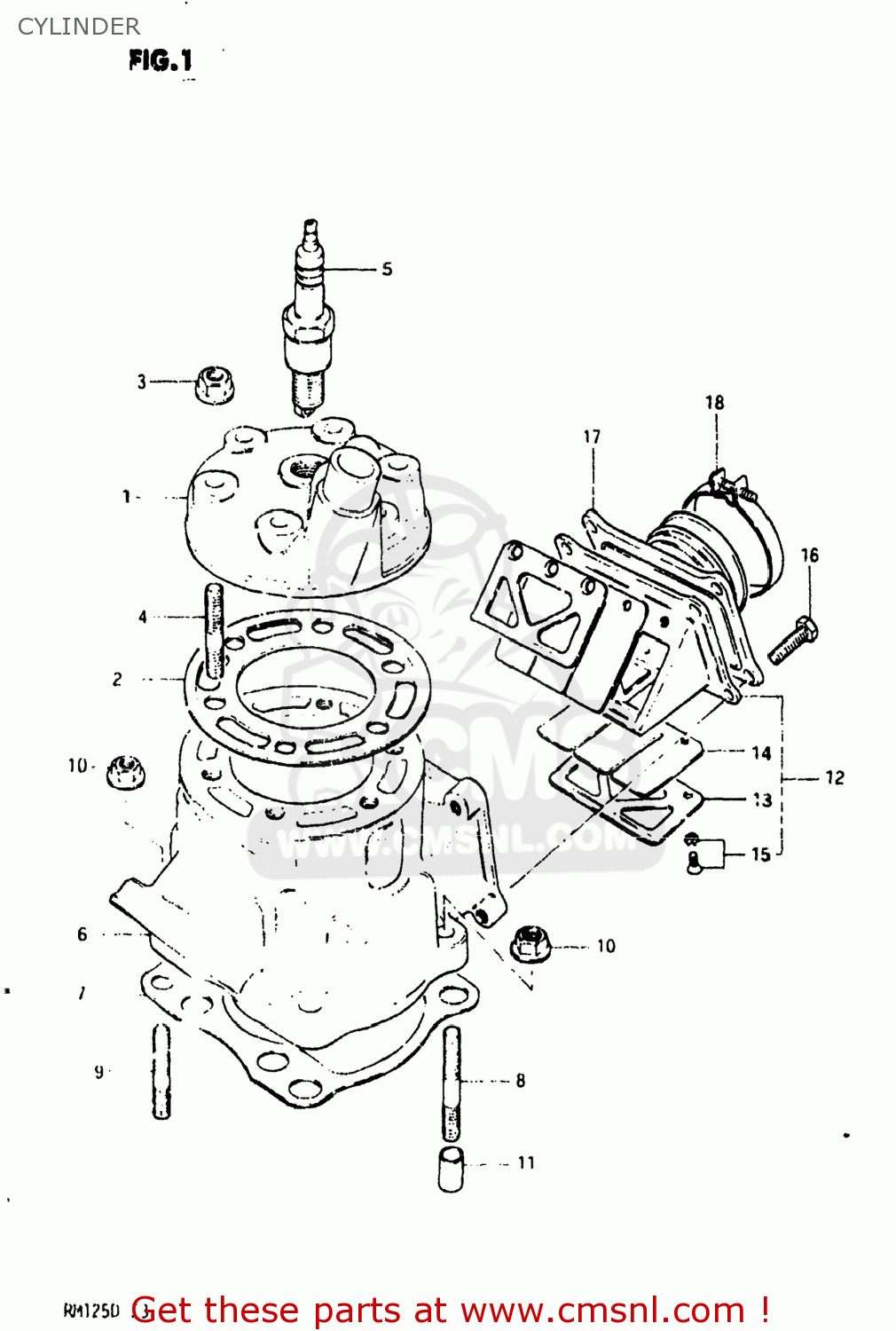

CYLINDER

ref

part #

description

quantity

1

1111114110
ref: 1

HEAD,CYLINDER.

€ 93.00

2

1114114120
ref: 2
11141-14120-H17

GASKET,CYLINDER HEAD (MCA)

€ 26.00

3

0831616085
ref: 3
08316-1008B

NUT 8MM

€ 3.00

4

0910808101
ref: 4
09108-08143

STUD

€ 3.00

5-1

0948200209
ref: 5-1

PLUG,SPARK(NGK B-8EN)

€ 19.50

5-2

0948200271111
ref: 5-2
09482-00396-111

SPARK PLUG

€ 3.00

6

1121014121
ref: 6

CYLINDER

€ 424.50

7

1124114110
ref: 7
11241-14110-H17

GASKET,CYLINDER (MCA)

€ 14.50

8

0910808094
ref: 8
09108-08199

STUD

€ 3.00

9

0910808095
ref: 9
09108-08228

STUD

€ 8.50

10

0831616085
ref: 10
08316-1008B

NUT 8MM

€ 3.00

11

0421111169
ref: 11

PIN

€ 2.00

12

1315014110
ref: 12

VALVE ASSEMBLY,REED

€ 109.50

13

1315214110
ref: 13

STOPPER,REED VALVE

€ 4.00

14

1315314110
ref: 14

VALVE,REED

€ 11.50

15

0212253088
ref: 15

SCREW

€ 3.50

16

0110706208
ref: 16
01500-06207

BOLT

€ 2.00

17

1311014100
ref: 17

PIPE,INTAKE

€ 33.00

18

0940250306
ref: 18

CLAMP

€ 6.00
