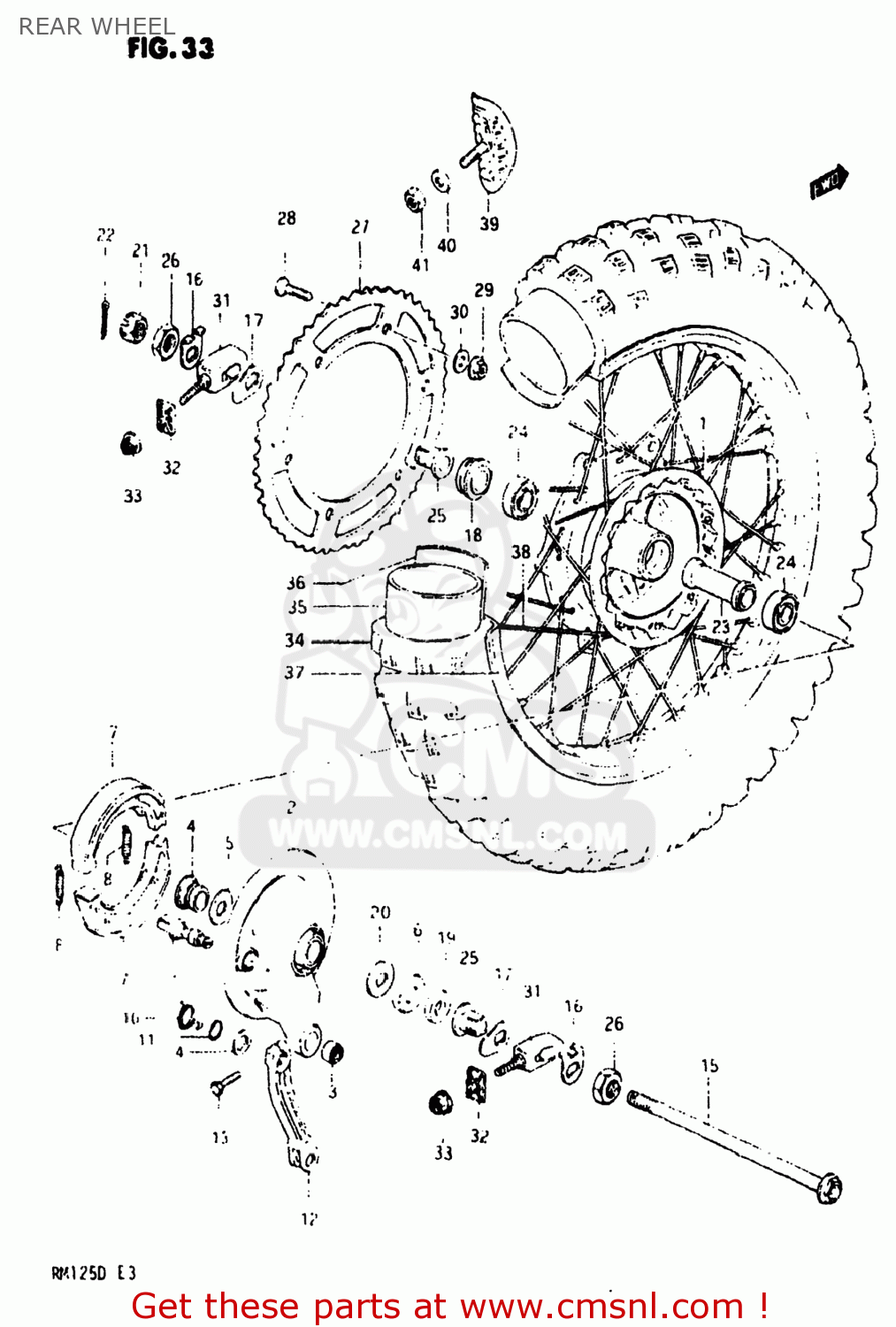

REAR WHEEL

ref

part #

description

quantity

1

6411014110
ref: 1
64110-01B02

DRUM,REAR HUB

€ 310.50

2

6420014840
ref: 2
64200-14841

PANEL SET,REAR HUB

€ 107.00

3

6435240401
ref: 3

SPHERICAL BRNG,TORQUE LINK

€ 69.50

4

6421314100
ref: 4

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

6484514100
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

7

6441014100
ref: 7
64400-14820

SHOE,BRAKE (MCA)

€ 41.50

8

0944307001
ref: 8
09443-07025

SPRING(L:34)

€ 2.50

9

5444114101
ref: 9

CAM,FR BRAKE

€ 16.00

10

0944830007
ref: 10
09448-30007-XC0

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114100
ref: 12

LEVER,RR BRAKE CAM

€ 62.50

13

0110706258
ref: 13
01500-06257

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114101
ref: 15
64711-14201

AXLE,REAR

€ 150.50

16

6471214301
ref: 16

WASHER,CHAIN ADJUSTER GUIDE

€ 7.50

17

6471214201
ref: 17

WASHER,CHAIN ADJUST GUIDE

€ 3.50

18

6475014200
ref: 18

SPACER,RR AXLE,L

€ 16.00

19

6474114210
ref: 19

SPACER,REAR AXLE,RIGHT

€ 14.50

20

0821115281
ref: 20
09181-15223

WASHER,THRUST

€ 2.50

21

0914114004
ref: 21

NUT

€ 5.00

22

0411130308
ref: 22
04111-3030A

COTTER PIN

€ 1.50

23

6473014101
ref: 23

SPACER

€ 31.50

24

0812362027
ref: 24

BEARING

€ 14.50

25

6478114201
ref: 25

SPACER,CHAIN ADJUSTER

€ 27.00

26

0914022006
ref: 26

NUT

€ 6.00

27-1

6451140261
ref: 27-1

SPROCKET,RR(NT:51 AL)

€ 87.50

27-2

6451140266
ref: 27-2

SPROCKET,REAR (NT:52)(AL)

€ 118.50

27-3

6451140271
ref: 27-3
64511-36E00

SPROCKET,REAR

€ 99.00

28

0912008004
ref: 28

SCREW(8X33.5)

€ 3.00

29

0831931088
ref: 29
08319-3108A

NUT

€ 2.50

30

0832211088
ref: 30
08322-01087

WASHER

€ 2.00

31

6141014121
ref: 31

ADJUSTER,CHAIN

€ 24.00

32

6142114210
ref: 32

PLATE,CHAIN ADJUSTER GUIDE,R

€ 139.50

33

0831931088
ref: 33
08319-3108A

NUT

€ 2.50

34-1

6510014105
ref: 34-1

TIRE

€ 50.00

34-2

6510014125
ref: 34-2

TIRE

€ 0.00

35-1

6520041310
ref: 35-1
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

35-2

6520041330
ref: 35-2
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

36-1

6526116510
ref: 36-1
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

36-2

6526133030
ref: 36-2

PROTECTOR,INNER TUBE

€ 5.50

37

6531114101
ref: 37
65311-14510

RIM,REAR WHEEL

€ 276.00

38

6532014111
ref: 38
65320-14112

SPOKE SET,REAR WHEEL

€ 50.00

39

6527046910
ref: 39
65270-43D00

STOPPER,BEAD

€ 30.50

40

0832211088
ref: 40
08322-01087

WASHER

€ 2.00

41

0831012088
ref: 41
08310-00087

NUT

€ 2.00

all assemblies
