CUSHION LEVER (MODEL P/R/S)

RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

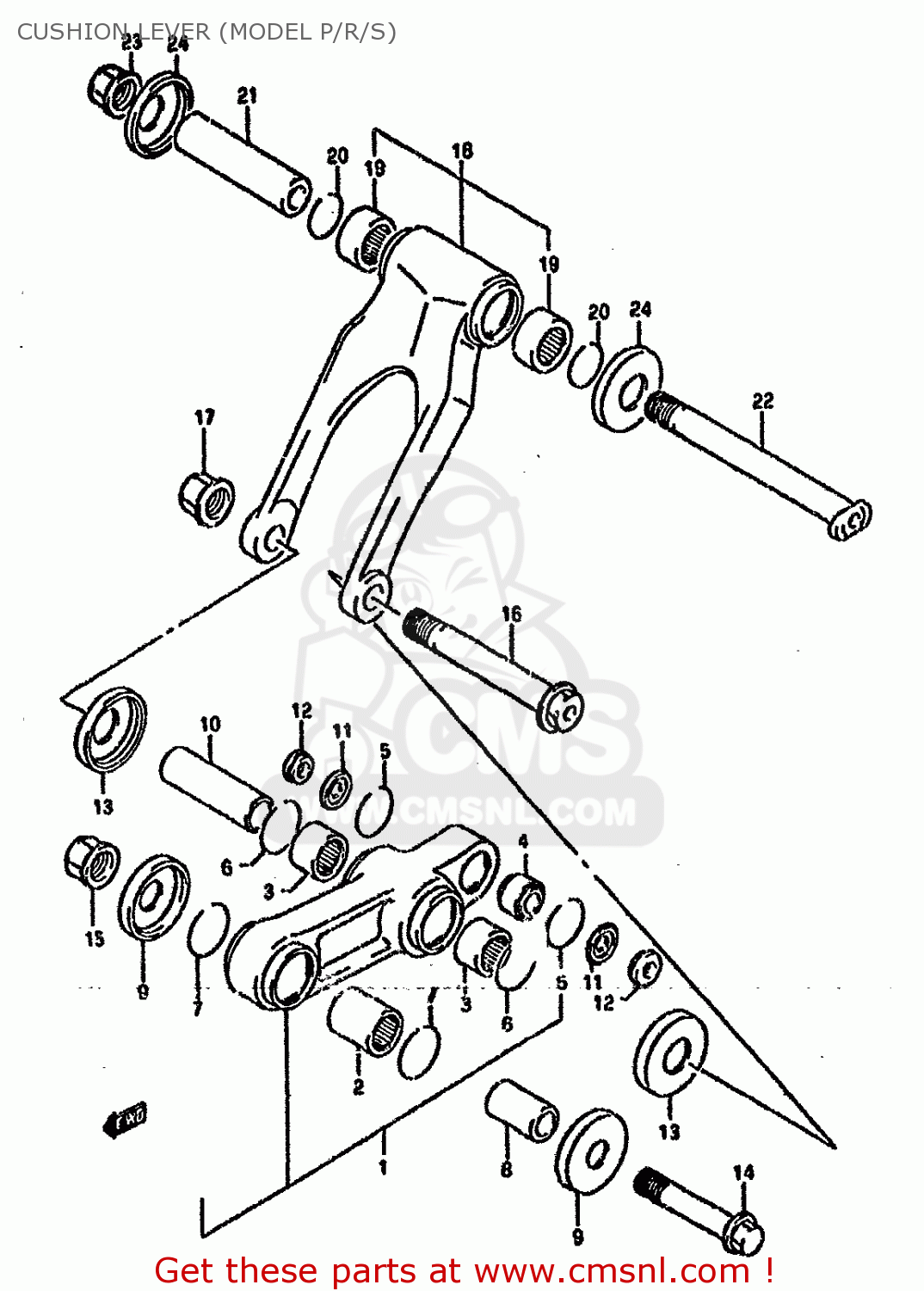

Cushion lever (model p/r/s) diagram RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CUSHION LEVER (MODEL P/R/S) RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CUSHION LEVER (MODEL P/R/S) RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CUSHION LEVER (MODEL P/R/S) RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6260028850
ref: 1-1
MODEL P
LEVER SET,REAR CUSHION
€ 248.00
1-2
6260028810
ref: 1-2
MODEL R
LEVER SET,RR CUSHION
€ 398.50
1-3
6260028870
ref: 1-3
MODEL S
LEVER SET,RR CUSHION
€ 398.50
2
0926320053
ref: 2
BEARING(20X27X25)
0926320053
€ 15.50
3
0926322062
ref: 3
BEARING(22X28X20)
0926322062
€ 22.50
4-1
6217543D00
ref: 4-1
MODEL P/R
BEARING,RR CUSHION LEVER RR
6217543D00
€ 54.00
4-2
6217528E00
ref: 4-2
MODEL S
BEARING,RR CUSHION LEVER RR
6217528E00
€ 49.50
5
6227727C20
ref: 5
RING,BEARING STOPPER
6227727C20
€ 2.50
6
0938126002
ref: 6
CIRCLIP
0938126002
€ 2.50
7
0938126002
ref: 7
CIRCLIP
0938126002
€ 2.50
8
6231727C10
ref: 8
SPACER,RR CUSHION LEVER FR
6231727C10
€ 9.00
9-1
6216228C01
ref: 9-1
MODEL P/R
SEAL,REAR CUSHION LEVER
€ 6.50
9-2
6216228E00
ref: 9-2
MODEL S
SEAL,RR CUSHION LEVER FR DUST
6216228E00
€ 6.50
10
6264628E00
ref: 10
SPACER,RR CUSHION LEVER CTR
6264628E00
€ 24.00
11
6222643D00
ref: 11
SEAL,RR CUSHION LEVER RR DUST
6222643D00
€ 5.50
12
6268428C10
ref: 12
SPACER,RR CUSHION LEVER RR
6268428C10
€ 11.00
13
6268228E00
ref: 13
SEAL,RR CUSHION LEVER CTR
6268228E00
€ 14.50
14
6265827C10
ref: 14
BOLT,RR CUSHION LEVER FR
6265827C10
€ 8.00
15
0831931128
ref: 15
NUT 12MM
0831931128
€ 4.00
16
6262128E00
ref: 16
BOLT,REAR CUSHION LEVER
6262128E00
€ 30.00
17
0831931148
ref: 17
NUT
0831931148
€ 9.00
18-1
6260028860
ref: 18-1
MODEL P
ROD SET,RR CUSHION LEVER
€ 266.50
18-2
6260028820
ref: 18-2
MODEL R/S
ROD SET,RR CUSHION LEVER
€ 248.50
19
0926322062
ref: 19
BEARING(22X28X20)
0926322062
€ 22.50
20
0938126002
ref: 20
CIRCLIP
0938126002
€ 2.50
21
6264528E00
ref: 21
SPACER,RR CUSHION ROD
6264528E00
€ 30.50
22
6262228E00
ref: 22
BOLT,RR CUSHION ROD
6262228E00
€ 34.00
23
0831931148
ref: 23
NUT
0831931148
€ 9.00
24
6268228E00
ref: 24
SEAL,RR CUSHION LEVER CTR
6268228E00
€ 14.50
