FRONT WHEEL

RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

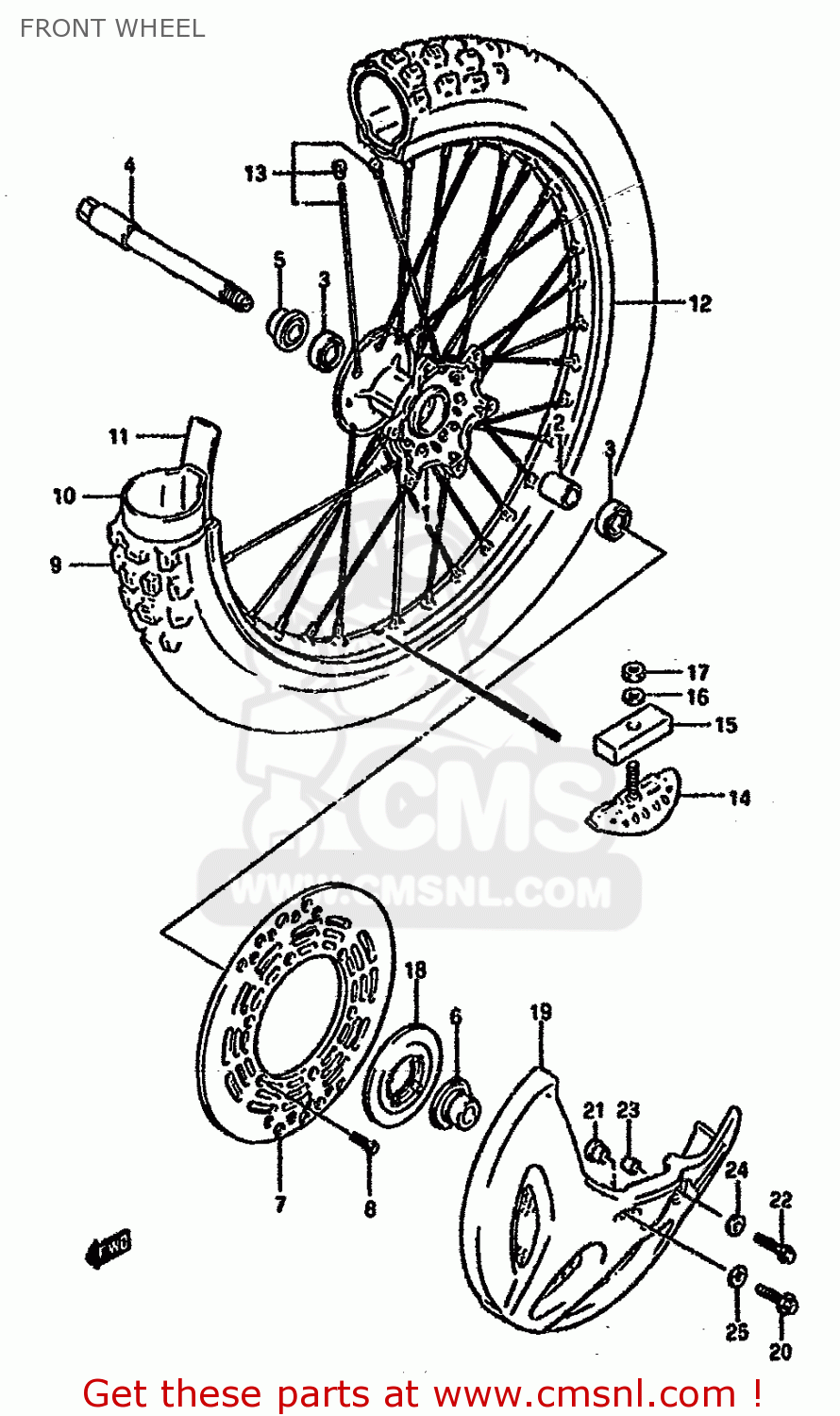

Front wheel diagram RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

FRONT WHEEL RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRONT WHEEL RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
FRONT WHEEL RM125 1992 (N) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
5411127C00
ref: 1
HUB,FRONT
5411127C00
€ 125.00
2
5473143D00
ref: 2
SPACER,FRONT HUB BEARING
5473143D00
€ 34.00
3
0813360037
ref: 3
BEARING
0813360037
€ 14.50
4
5471101B02
ref: 4
AXLE,FR
5471101B02
€ 58.00
5
5474001B01
ref: 5
SPACER,FR AXLE,R
5474001B01
€ 12.50
6
5475027C10
ref: 6
SPACER,FRONT AXLE,LEFT
5475027C10
€ 8.50
7
5922128C00
ref: 7
DISC,FR BRAKE
5922128C00
€ 193.00
8
5942129E00
ref: 8
SCREW,BRAKE DISC
5942129E00
€ 4.50
9-1
5511001B20
ref: 9-1
MODEL N
TIRE,FRONT (80/100-21) (DUNLOP)
€ 164.00
9-2
5511043D10
ref: 9-2
MODEL P/R/S
TIRE,FRONT 80/100-21
€ 164.00
10
5520016510
ref: 10
TUBE
5520016510
€ 32.50
11
5526114540
ref: 11
PROTECTOR,WHEEL INNER
5526114540
€ 5.00
12
5531128C00
ref: 12
RIM,FRONT WHEEL (1.60X2
€ 322.50
13-1
5532001B00
ref: 13-1
MODEL N
SPOKE SET,FRONT
€ 97.00
13-2
5532028E00
ref: 13-2
MODEL P/R/S
SPOKE SET,FR WHEEL
5532028E00
€ 97.00
14
6527014300
ref: 14
STOPPER,BEAD
6527014300
€ 26.00
15
6527127C00
ref: 15
CUSHION,BEAD STOPPER
6527127C00
€ 5.50
16-1
0832211088
ref: 16-1
MODEL N/P
WASHER
0832211088
€ 2.00
16-2
0832201083
ref: 16-2
MODEL R/S
WASHER
0832201083
€ 1.50
17-1
0831012088
ref: 17-1
MODEL N/P
NUT
0831012088
€ 2.00
17-2
0831000083
ref: 17-2
MODEL R/S
NUT
0831000083
€ 1.50
18
5413827C10
ref: 18
CAP,FR HUB,L
5413827C10
€ 12.00
19-1
5923128C0025Y
ref: 19-1
MODEL N 59231-28C01-
COVER,FRONT BRAKE DISC
5923128C0025Y
€ 41.00
19-2
5923128C0125Y
ref: 19-2
MODEL N/R/S
COVER,FR BRAKE DISC
5923128C0125Y
€ 41.00
19-3
5923128C0130H
ref: 19-3
MODEL P
COVER,FRONT BRAKE DISC
€ 38.00
20
0910308310
ref: 20
BOLT
0910308310
€ 3.00
21
0916908047
ref: 21
WASHER (8.5X16X1.6)
0916908047
€ 6.50
22-1
0154706257
ref: 22-1
MODEL N/P
BOLT
0154706257
€ 2.50
22-2
0154706253
ref: 22-2
MODEL R/S
SCREW
0154706253
€ 2.50
23
0918006116
ref: 23
SPACER(6.1X8X14.5)
0918006116
€ 2.00
24
0916006028
ref: 24
WASHER(6.5X18X1)
0916006028
€ 1.50
25
0916008043
ref: 25
WASHER(8.5X18X1)
0916008043
€ 1.50
