RM125 1996 (T) USA (E03)

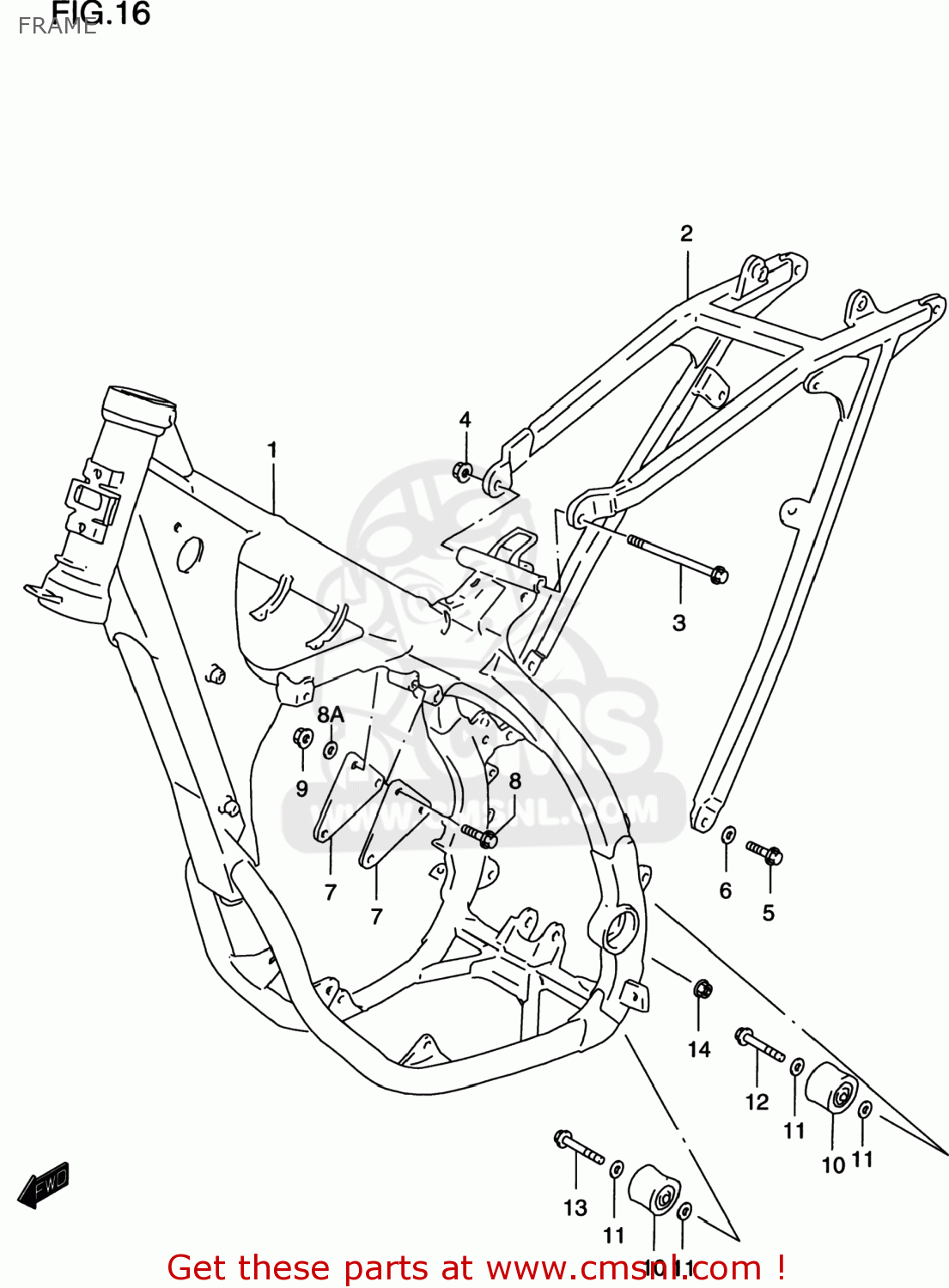

Frame diagram RM125 1996 (T) USA (E03)
FRAME RM125 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110036E0024K
ref: 1-1
FRAME COMP
€ 1,373.50
1-2
4110036E1024K
ref: 1-2
FRAME COMP
€ 1,298.50
1-3
4110036E2024K
ref: 1-3
FRAME COMP
€ 1,121.50
1-4
4110036E3024K
ref: 1-4
FRAME COMP
€ 1,231.00
1-5
4110036E4024K
ref: 1-5
FRAME(CHARCOAL)
€ 864.00
2
4120036E00
ref: 2
RAIL,SEAT
€ 580.50
3
0910308109
ref: 3
BOLT(8X120)
€ 3.50
4
0915908034
ref: 4
NUT
€ 2.00
5
0910408019
ref: 5
09104-08035
BOLT 8X16
€ 2.00
6-1
0832201087
ref: 6-1
WASHER
€ 2.00
6-2
0916008122
ref: 6-2
WASHER(8.5X18X3.20)
€ 2.00
7-1
4199343D02
ref: 7-1
PLATE,ENGINE MOUNT UPR
€ 26.50
7-2
4199336E10
ref: 7-2
PLATE,ENGINE MOUNTING,UPPER
€ 16.00
7-3
4199336E20
ref: 7-3
PLATE,ENG MTG UPR
€ 26.50
7-4
4199336E30
ref: 7-4
PLATE,ENG MTG UPR
€ 35.00
8A
0832201083
ref: 8A
08322-0108A
WASHER
€ 1.50
8-1
0910308083
ref: 8-1
BOLT(8X41)
€ 3.50
8-2
0910308043
ref: 8-2
BOLT(8X45)
€ 4.50
9
0915908067
ref: 9
NUT
€ 5.50
10
4391027C11
ref: 10
ROLLER,CHAIN
€ 36.50
11-1
0821108121
ref: 11-1
WASHER
€ 2.00
11-2
0918108111
ref: 11-2
SHIM(8X12X1)
€ 2.00
12
0910308083
ref: 12
BOLT(8X41)
€ 3.50
13
0910308043
ref: 13
BOLT(8X45)
€ 4.50
14
0831931087
ref: 14
NUT
€ 2.50
