FRONT DAMPER (MODEL V)
RM125 1996 (T) USA (E03)

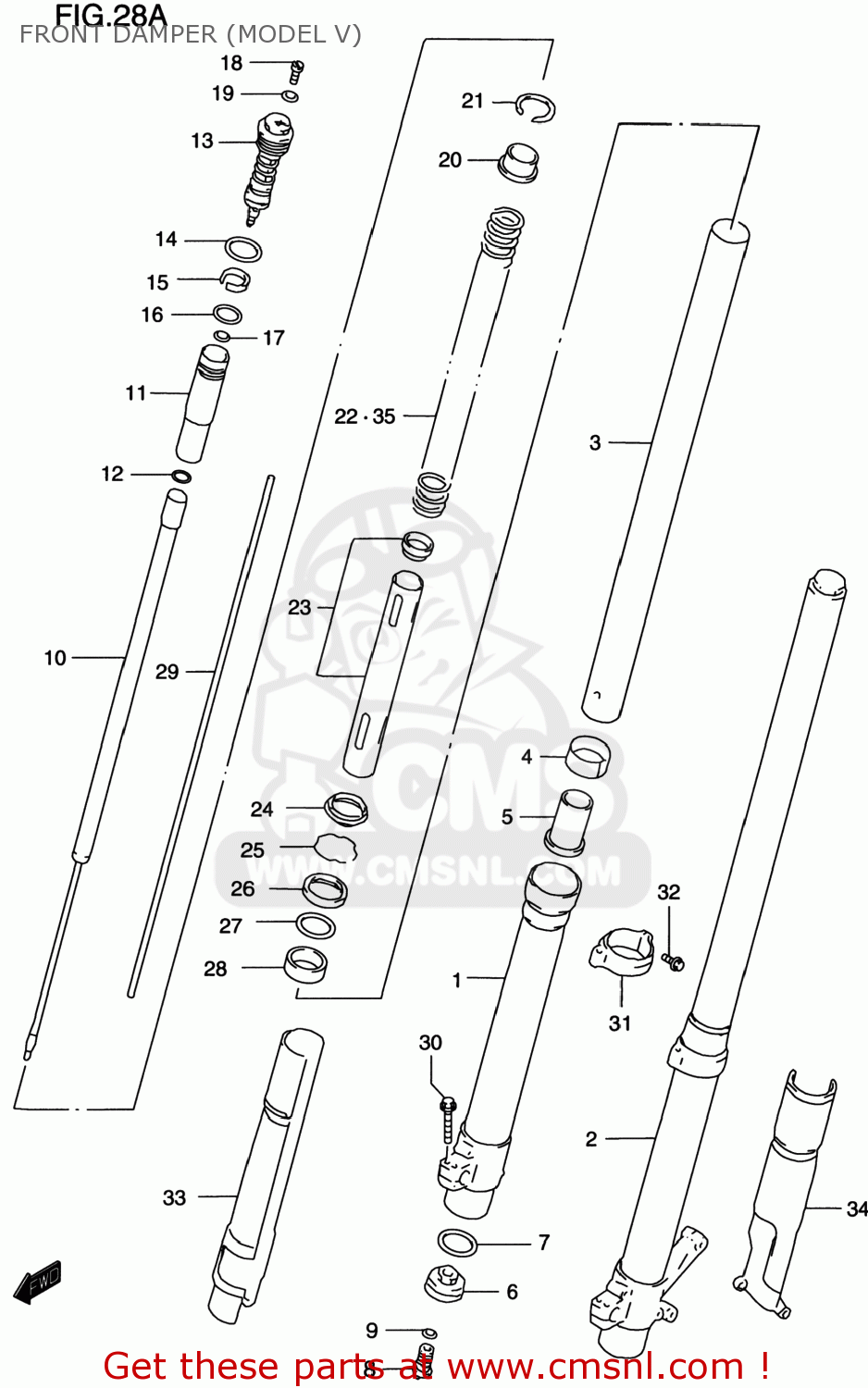

Front damper (model v) diagram RM125 1996 (T) USA (E03)
FRONT DAMPER (MODEL V) RM125 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110336E30
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 1,372.50
5110436E30
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 1,372.50
1
5113036E20
ref: 1
TUBE,OUTER,RIGHT
€ 610.00
2
5114036E20
ref: 2
TUBE,OUTER,LEFT
€ 476.00
3
5111036E20
ref: 3
TUBE,INNER
€ 451.50
4
5112136E00
ref: 4
BUSH,SLIDE
€ 17.50
5
5119536E30
ref: 5
PIECE,OIL LOCK
€ 50.00
6
5120536E20
ref: 6
PLATE,END
€ 35.50
7
5111727C40
ref: 7
O RING
€ 3.50
8
5117036E20
ref: 8
BOLT,CTR
€ 128.50
9
5117736E20
ref: 9
O RING
€ 2.50
10
5119036E30
ref: 10
ROD,FR DAMPER
€ 639.00
11
5119836E20
ref: 11
TANK,SUB
€ 107.00
12
5117436E30
ref: 12
51174-29F00
O-RING
€ 3.50
13
5135136E30
ref: 13
BOLT,FORK
€ 220.00
14
5111736E00
ref: 14
O RING
€ 3.50
15
5112328E30
ref: 15
BUSH,FORK BOLT SLIDE
€ 9.50
16
5117436E20
ref: 16
O RING
€ 3.00
17
5117536E20
ref: 17
O RING
€ 2.50
18
5135728E30
ref: 18
BOLT,PLUG
€ 8.00
19
5135828E30
ref: 19
O RING,PLUG
€ 2.50
20
5135536E20
ref: 20
SPRING,STOPPER
€ 15.00
21
5135436E20
ref: 21
RING,STOPPER
€ 2.50
22
5117137E30
ref: 22
SPRING,FR(K=0.40)
€ 70.50
23
5117636E20
ref: 23
COLLAR,SPRING
€ 112.00
24
5117336E00
ref: 24
SEAL,DUST
€ 19.50
25
5115636E00
ref: 25
RING,STOPPER
€ 4.50
26
5115336E00
ref: 26
SEAL,OIL
€ 19.00
27
5115836E00
ref: 27
SPACER,SEAL
€ 5.00
28
5116736E00
ref: 28
BUSH,GUIDE
€ 22.00
29
5119136E20
ref: 29
ROD,PUSH
€ 10.00
30
5132127C40
ref: 30
BOLT,HANDLE HOLDER(8X35)
€ 3.00
31-1
5121136E00
ref: 31-1
GUIDE,FR PROTECTOR,R
€ 33.50
31-2
5122136E00
ref: 31-2
GUIDE,FR PROTECTOR,L
€ 33.50
32
5862843D00
ref: 32
01547-06207
BOLT,PROTECTOR GUIDE,6
€ 2.50
33
5155136E1025Y
ref: 33
PROTECTOR,OUTER TUBE,R
€ 50.00
33
5155136E1025Y
ref: 33
PROTECTOR,OUTER TUBE,R
€ 50.00
34
5155236E1025Y
ref: 34
PROTECTOR,OUTER TUBE,L
€ 51.00
34
5155236E1025Y
ref: 34
PROTECTOR,OUTER TUBE,L
€ 51.00
35
5117137E20
ref: 35
SPRING,FRONT (K=0.42)
€ 47.50
