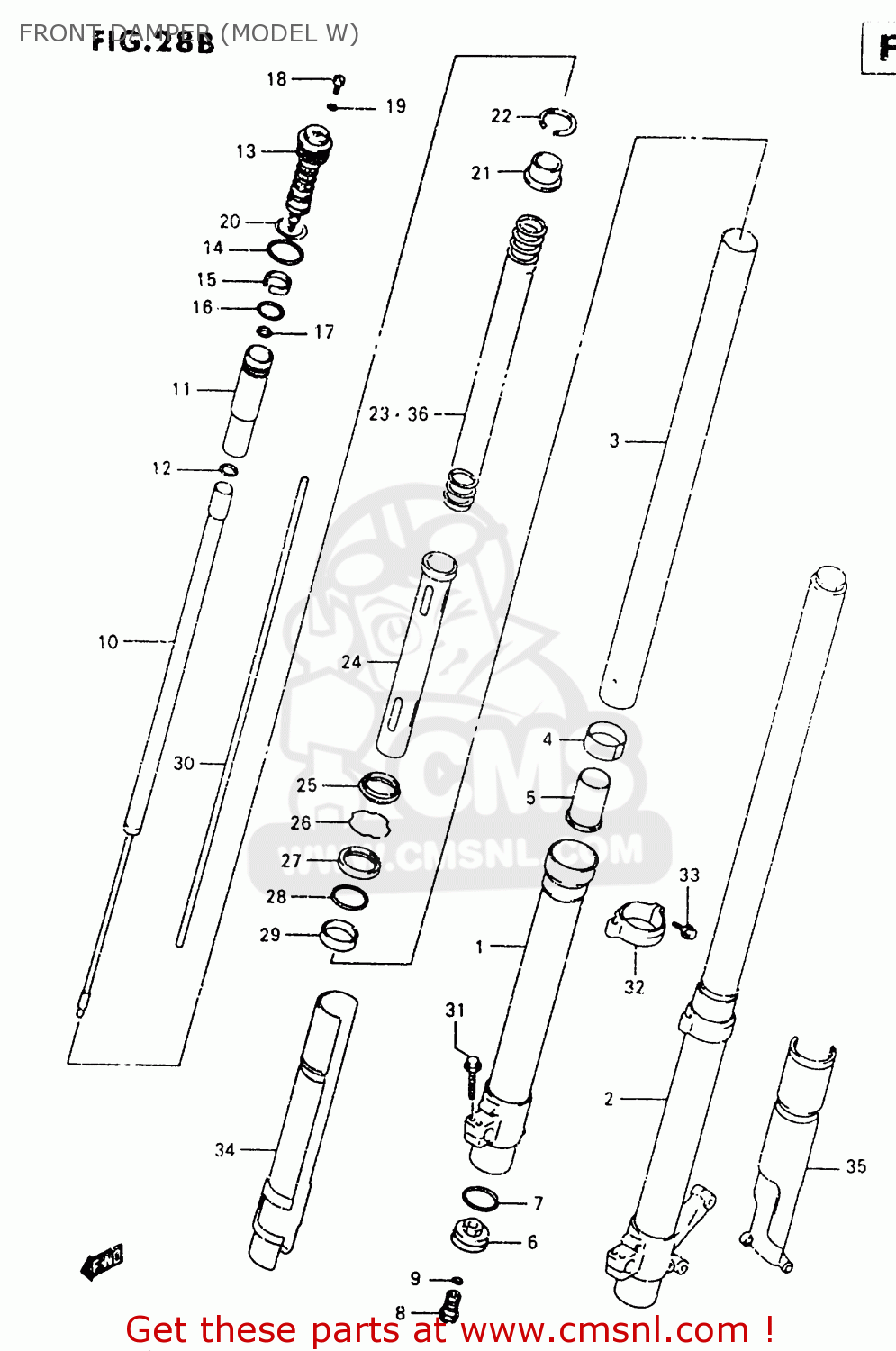

FRONT DAMPER (MODEL W)

ref

part #

description

quantity

0

5110336E50
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 1,395.00

0

5110436E50
ref: 0

DAMPER ASSY, FRONT FORK LH

€ 1,395.00

1

5113036E40
ref: 1

TUBE,OUTER,R

€ 594.50

2

5114036E40
ref: 2

TUBE,OUTER,LEFT

€ 463.50

3

5111036E40
ref: 3

TUBE,INNER

€ 363.00

4

5112136E40
ref: 4

BUSH,SLIDE

€ 19.00

5

5119536E50
ref: 5

PIECE,OIL LOCK

€ 40.00

6

5120536E00
ref: 6

PLATE,END

€ 41.00

7

5111727C40
ref: 7

O RING

€ 3.50

8

5117036E40
ref: 8

BOLT,CTR

€ 121.50

9

5117728E30
ref: 9

O RING,CTR BOLT

€ 2.50

10

5119036E50
ref: 10

ROD,FRONT DAMPER

€ 486.00

11

5119836E40
ref: 11

TANK,SUB

€ 125.50

12

5117436E30
ref: 12

O-RING

€ 3.50

13

5135136E50
ref: 13

BOLT,FORK

€ 249.50

14

5111736E00
ref: 14

O RING

€ 3.50

15

5112336E40
ref: 15

BUSHING,SLIDE

€ 9.50

16

5117436E40
ref: 16

O RING

€ 2.50

17

5117536E20
ref: 17

O RING

€ 2.50

18

5135728E30
ref: 18

BOLT,PLUG

€ 8.00

19

5135828E30
ref: 19

O RING,PLUG

€ 2.50

20

5111729EA0
ref: 20

O RING

€ 5.50

21

5135536E20
ref: 21

SPRING,STOPPER

€ 15.00

22

5135436E20
ref: 22

RING,STOPPER

€ 2.50

23

5117136E50
ref: 23

SPRING,FRONT (K=0.40)

€ 63.00

24

5117636E40
ref: 24

COLLAR,SPRING

€ 115.50

25

5117336E00
ref: 25

SEAL,DUST

€ 19.50

26

5115636E00
ref: 26

RING,STOPPER

€ 4.50

27

5115336E00
ref: 27

SEAL,OIL

€ 19.00

28

5115836E00
ref: 28

SPACER,SEAL

€ 5.00

29

5116736E40
ref: 29

BUSH,GUIDE

€ 19.50

30

5119136E20
ref: 30

ROD,PUSH

€ 10.00

31

5132127C40
ref: 31

BOLT,HANDLE HOLDER(8X35)

€ 3.00

32-1

5121136E00
ref: 32-1

GUIDE,FR PROTECTOR,R

€ 33.50

32-2

5122136E00
ref: 32-2

GUIDE,FR PROTECTOR,L

€ 33.50

33

0154706207
ref: 33

BOLT

€ 2.50

34

5155136E101KY
ref: 34
OPT

PROTECTOR,OUTER TUBE,R

€ 41.50

35

5155236E101KY
ref: 35
OPT

PROTECTOR,OUTER TUBE,L

€ 45.50

36-1

5117136E40
ref: 36-1
OPT

SPRING,FRONT (K=0.38)

€ 190.00

36-2

5117136E60
ref: 36-2
OPT

SPRING,FRONT (K=0.42)

€ 167.00
