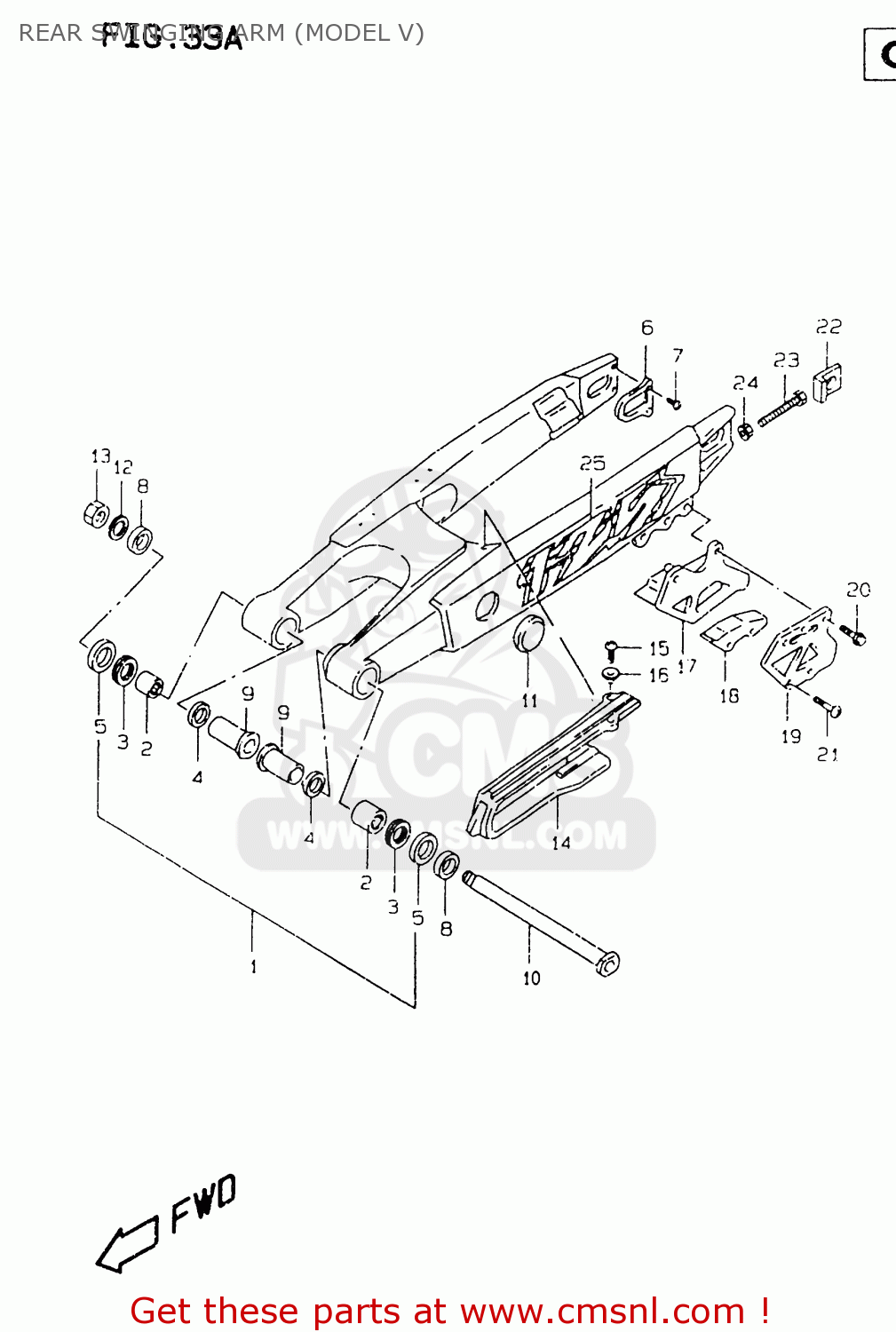

REAR SWINGING ARM (MODEL V)

ref

part #

description

quantity

1

6100036E10
ref: 1

SWING ARM ASSEMBLY,REAR

€ 855.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926322064
ref: 3

BEARING(22X35X2)

€ 19.00

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

6

6112828E00
ref: 6

PLATE,SWING ARM,REAR

€ 14.50

7

0912605009
ref: 7

SCREW(5X8)

€ 2.50

8

6125136E01
ref: 8

SPACER,RR SWGARM PIVOT OUTER

€ 6.00

9

6125236E00
ref: 9

SPACER,SWGARM PIVOT INNER

€ 20.00

10

6121128C00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 46.50

11

0925035003
ref: 11

CAP(OD:45)

€ 3.00

12

0832201163
ref: 12

WASHER, FIXED DRIVE FACE

€ 2.00

13

0915916007
ref: 13

NUT

€ 10.50

14

6127336E10
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 39.50

15

0211205123
ref: 15

SCREW

€ 1.50

16

0916905022
ref: 16

WASHER

€ 3.50

17

6134127C20
ref: 17

GUIDE,CHAIN

€ 30.50

18

6134827C20
ref: 18

DEFENSE,CHAIN GUIDE

€ 26.50

19

6134228E00
ref: 19

PLATE,CHAIN GUIDE OUTER

€ 39.00

20

0154706203
ref: 20

SCREW

€ 2.50

21

0912606013
ref: 21

SCREW(6X40)

€ 5.00

22

6144528E10
ref: 22

WASHER,CHAIN ADJUSTER

€ 23.00

23

0910008287
ref: 23

BOLT(8X50)

€ 3.00

24

0915908034
ref: 24

NUT

€ 2.00

25

6838136E10G7E
ref: 25

EMBLEM,SWING ARM

€ 19.50
