CRANKSHAFT
RM125 2000 (Y) USA (E03)

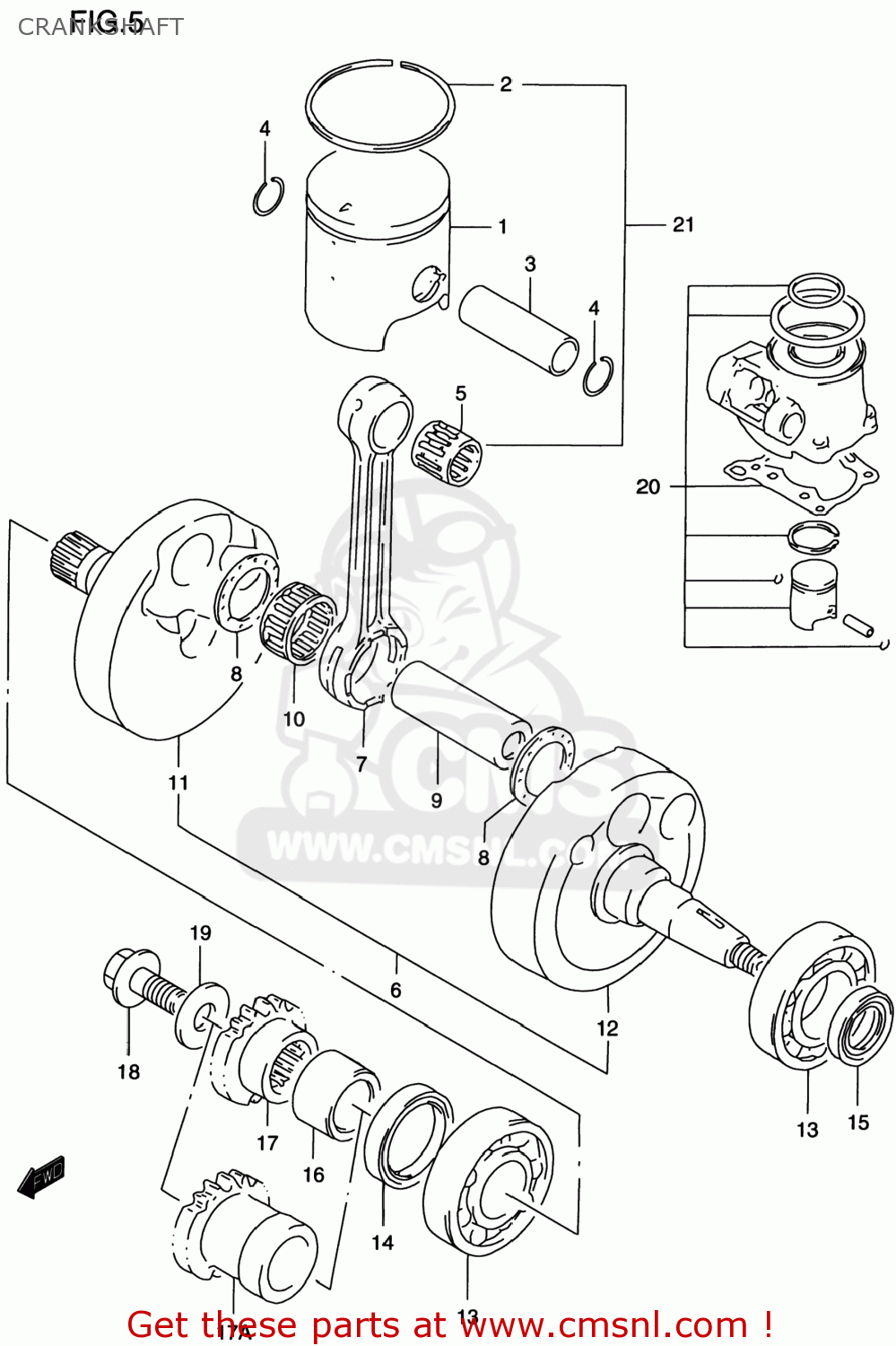

Crankshaft diagram RM125 2000 (Y) USA (E03)
CRANKSHAFT RM125 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211036E010F0
ref: 1-1
12110-36E20-0F0
PISTON
€ 92.50
1-2
1211036E200F0
ref: 1-2
PISTON
€ 92.50
1-3
1211036E300F0
ref: 1-3
12110-36E31-0F0
PISTON COMP
€ 63.50
2
1214136E01
ref: 2
RING,PISTON
€ 27.00
3
1215101B41
ref: 3
PIN,PISTON
€ 16.00
4
0938115001
ref: 4
CIRCLIP
€ 1.50
5
0926315040
ref: 5
BEARING(15X19X20)
€ 20.00
6-1
1220043D10
ref: 6-1
CRANKSHAFT ASSY
€ 696.50
6-2
1220036E00
ref: 6-2
CRANKSHAFT ASSY
€ 587.00
6-3
1220036E10
ref: 6-3
CRANKSHAFT ASSEMBLY
€ 556.50
6-4
1220036E20
ref: 6-4
CRANKSHAFT ASSY
€ 577.00
6-5
1220036E30
ref: 6-5
CRANKSHAFT ASSY
€ 595.00
7-1
1216143D00
ref: 7-1
ROD,CONNECTING
€ 66.00
7-2
1216136E00
ref: 7-2
CONNECTING ROD
€ 57.50
7-3
1216136E10
ref: 7-3
12161-36E12
CONNECTING ROD
€ 71.50
8
0916022077
ref: 8
WASHER(22X36X1.5)
€ 20.00
9
1221127C00
ref: 9
PIN,CRANK
€ 30.50
10
0926322060
ref: 10
BEARING(22X28X16)
€ 64.00
11-1
1222043D10
ref: 11-1
CRANKSHAFT,R
€ 220.00
11-2
1222036E10
ref: 11-2
12220-36E20
CRANKSHAFT COMP,RIGHT
€ 214.50
11-3
1222036E20
ref: 11-3
CRANKSHAFT,R
€ 214.50
11-4
1222036E30
ref: 11-4
CRANKSHAFT,R
€ 213.00
12-1
1226043D10
ref: 12-1
CRANKSHAFT,L
€ 255.50
12-2
1226036E10
ref: 12-2
12260-36E20
CRANKSHAFT COMP,LEFT
€ 205.50
12-3
1226036E20
ref: 12-3
CRANKSHAFT,L
€ 205.50
12-4
1226036E30
ref: 12-4
CRANKSHAFT,L
€ 216.50
13
0926222025
ref: 13
BEARING(22X56X16)
€ 63.50
14
0928330061
ref: 14
SEAL,OIL(30X40X7)
€ 17.00
15-1
0928318006
ref: 15-1
SEAL,OIL(18X30X6)
€ 13.50
15-2
0928318007
ref: 15-2
SEAL,OIL(18X30X7)
€ 6.50
16
1235927C30
ref: 16
SPACER,PRIMARY DRIVE GEAR
€ 9.50
17
2111143D00
ref: 17
GEAR,PRIMARY DRIVE (NT:
€ 49.00
17A
2111136E10
ref: 17A
21111-36E11
GEAR,PRIMARY DRIVE
€ 58.50
18
2114127C11
ref: 18
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
19
0916411004
ref: 19
WASHER
€ 6.00
20-1
1210043842
ref: 20-1
12100-43861
TOP END KIT,ENGINE
€ 160.50
20-1
1210043842
ref: 20-1
12100-43861
TOP END KIT,ENGINE
€ 160.50
20-2
1210043861
ref: 20-2
TOP END KIT,ENGINE
€ 160.50
20-2
1210043861
ref: 20-2
TOP END KIT,ENGINE
€ 160.50
20-3
1210036840
ref: 20-3
TOP END KIT,ENGINE
€ 0.00
20-3
1210036840
ref: 20-3
TOP END KIT,ENGINE
€ 0.00
21-1
1210043852
ref: 21-1
12100-43871
PISTON KIT
€ 127.00
21-1
1210043852
ref: 21-1
12100-43871
PISTON KIT
€ 127.00
21-2
1210043871
ref: 21-2
PISTON KIT
€ 127.00
21-2
1210043871
ref: 21-2
PISTON KIT
€ 127.00
21-3
1210036830
ref: 21-3
12100-36840
PISTON KIT
€ 107.00
21-3
1210036830
ref: 21-3
12100-36840
PISTON KIT
€ 107.00
