REAR WHEEL (MODEL T/V/W/X)
RM125 2000 (Y) USA (E03)

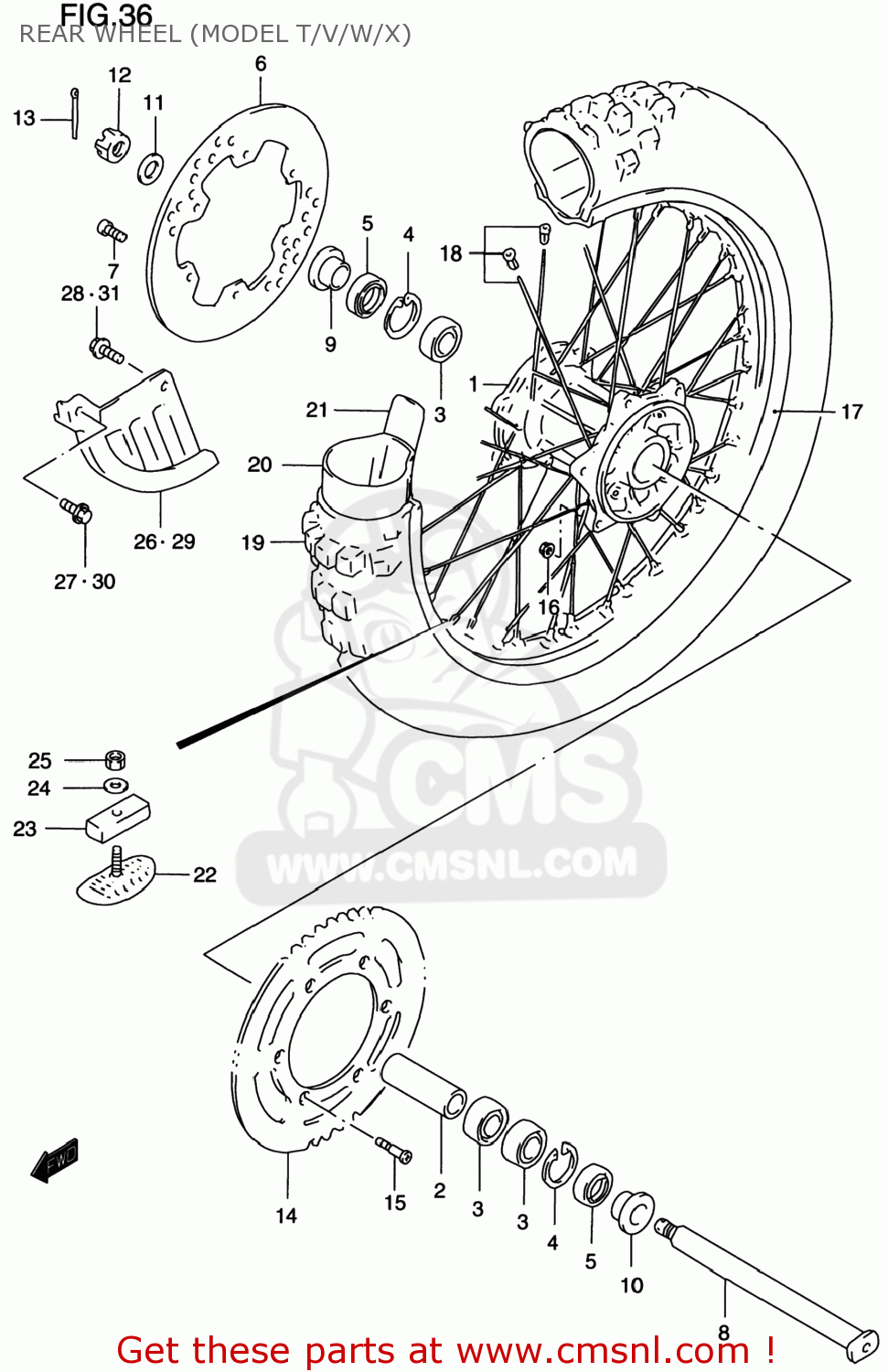

Rear wheel (model t/v/w/x) diagram RM125 2000 (Y) USA (E03)
REAR WHEEL (MODEL T/V/W/X) RM125 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411143D00
ref: 1
HUB,RR WHEEL
€ 285.00
2
6473143D00
ref: 2
SPACER,RR HUB BEARING
€ 47.50
3
0813360047
ref: 3
BEARING
€ 21.00
4
0833141426
ref: 4
08331-4142A
CIRCLIP
€ 1.50
5
6484128E00
ref: 5
SEAL(29X42X6)
€ 8.50
6-1
6921143D00
ref: 6-1
DISC,RR BRAKE
€ 160.00
6-2
6921136E00
ref: 6-2
DISC,RR BRAKE
€ 153.50
7
0912006011
ref: 7
09120-06014
SCREW
€ 2.50
8
6471128E00
ref: 8
AXLE,RR
€ 62.50
9
6475128E20
ref: 9
SPACER,RR AXLE
€ 13.00
10
6475128E20
ref: 10
SPACER,RR AXLE
€ 13.00
11
0916019022
ref: 11
WASHER(19X32X3.2)
€ 5.00
12
0831440183
ref: 12
08314-4018A
NUT
€ 4.50
13
0411140308
ref: 13
04111-4030A
PIN,COTTER
€ 1.50
14-1
6451128E00
ref: 14-1
SPROCKET,RR(NT:49)
€ 99.00
14-2
6451136E00
ref: 14-2
SPROCKET,RR(NT:50)
€ 99.00
14-3
6451114D60
ref: 14-3
SPROCKET,RR(NT:48)
€ 195.00
14-4
6451140261
ref: 14-4
SPROCKET,RR(NT:51 AL)
€ 87.50
15
0912008010
ref: 15
BOLT(8X30.5)
€ 2.50
16
0915908067
ref: 16
NUT
€ 5.50
17
6531127C10
ref: 17
65311-36E00
RIM,REAR WHEEL (1.85X19)(A
€ 357.00
18
6532028C10
ref: 18
SPOKE SET,RR WHEEL
€ 97.00
19-1
6511043D40
ref: 19-1
65110-36E10
TIRE,REAR 100/90-19
€ 84.00
19-2
6511036E10
ref: 19-2
TIRE,REAR 100/90-19
€ 84.00
20
5520044610
ref: 20
TUBE
€ 41.00
21
6526101B30
ref: 21
PROTECTOR,WHL INR TUBE
€ 3.50
22
6527043D00
ref: 22
STOPPER,BEAD(1.85)
€ 30.50
23
6527127C00
ref: 23
CUSHION,BEAD STOPPER
€ 5.50
24
0832201083
ref: 24
08322-0108A
WASHER
€ 1.50
25
0831000083
ref: 25
08310-0008A
NUT
€ 1.50
26
6920028C00
ref: 26
COVER SET,RR BRAKE DISC
€ 29.50
27
0155006203
ref: 27
01550-0620A
BOLT
€ 2.50
28
0155006123
ref: 28
01550-0612A
BOLT
€ 2.50
29
6923136E00
ref: 29
69231-37F01
COVER,REAR DISC
€ 35.50
30
0155006203
ref: 30
01550-0620A
BOLT
€ 2.50
31
0155006123
ref: 31
01550-0612A
BOLT
€ 2.50
