FRAME

RM125 2007 (K7) USA (E03)

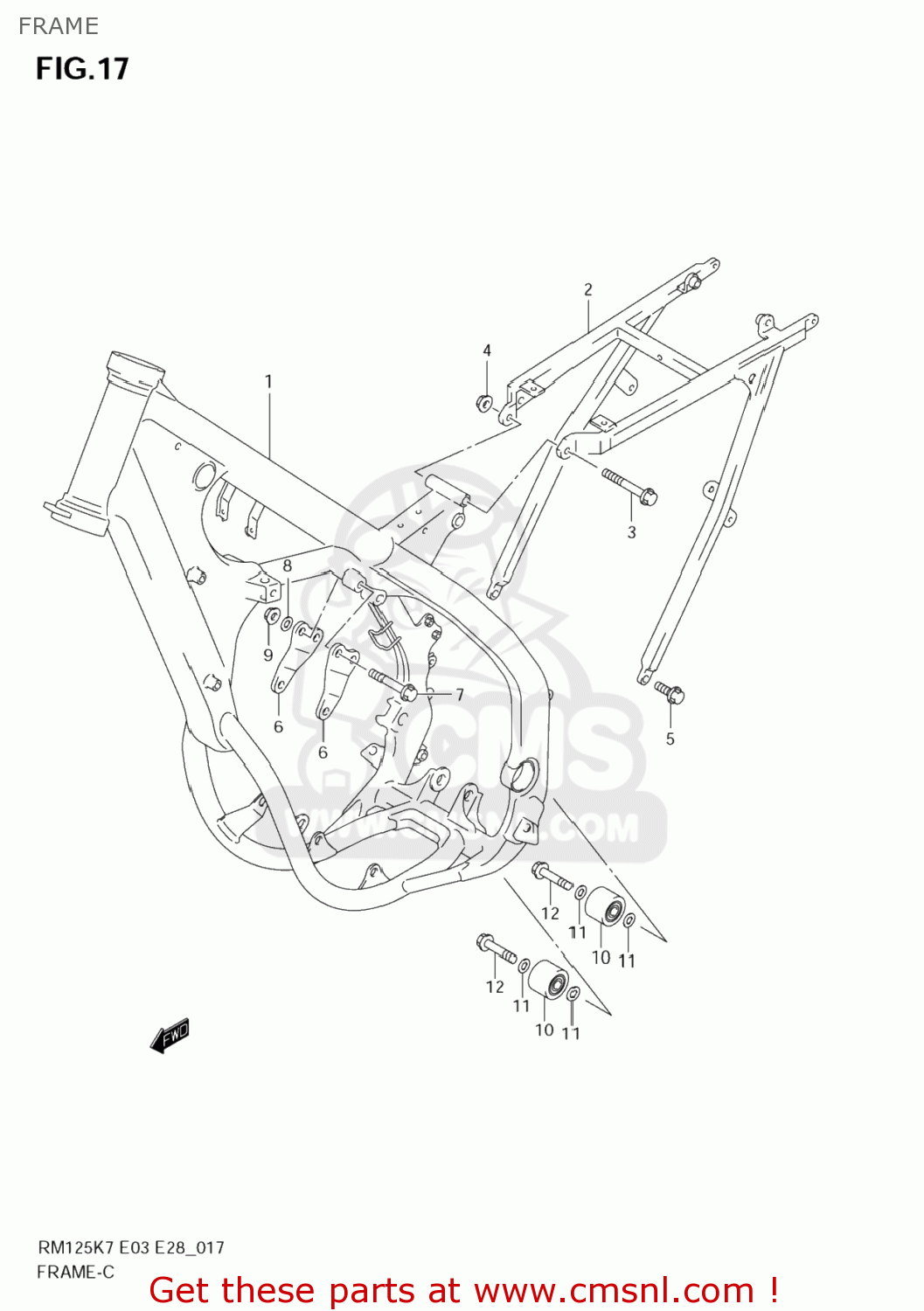

Frame diagram RM125 2007 (K7) USA (E03)

FRAME RM125 2007 (K7) USA (E03)

FRAME RM125 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110036F40YU8
ref: 1

FRAME(GRAY)

€ 888.00

2

4120037F21
ref: 2

RAIL,SEAT

€ 584.50

3

0910308070
ref: 3

BOLT(8X100)

€ 5.00

4

083193108A
ref: 4

NUT

€ 2.50

5

0910408036
ref: 5

BOLT(8X16)

€ 4.00

6

4199336F20
ref: 6

PLATE,ENG MTG UPR

€ 17.50

7

0910308043
ref: 7

BOLT(8X45)

€ 4.50

8

083220108B
ref: 8

WASHER

€ 1.50

9

0915908067
ref: 9

NUT

€ 5.50

10

4391037F00
ref: 10

ROLLER,CHAIN

€ 31.50

11

0918108111
ref: 11

SHIM(8X12X1)

€ 2.00

12

0910308083
ref: 12

BOLT(8X41)

€ 3.50
