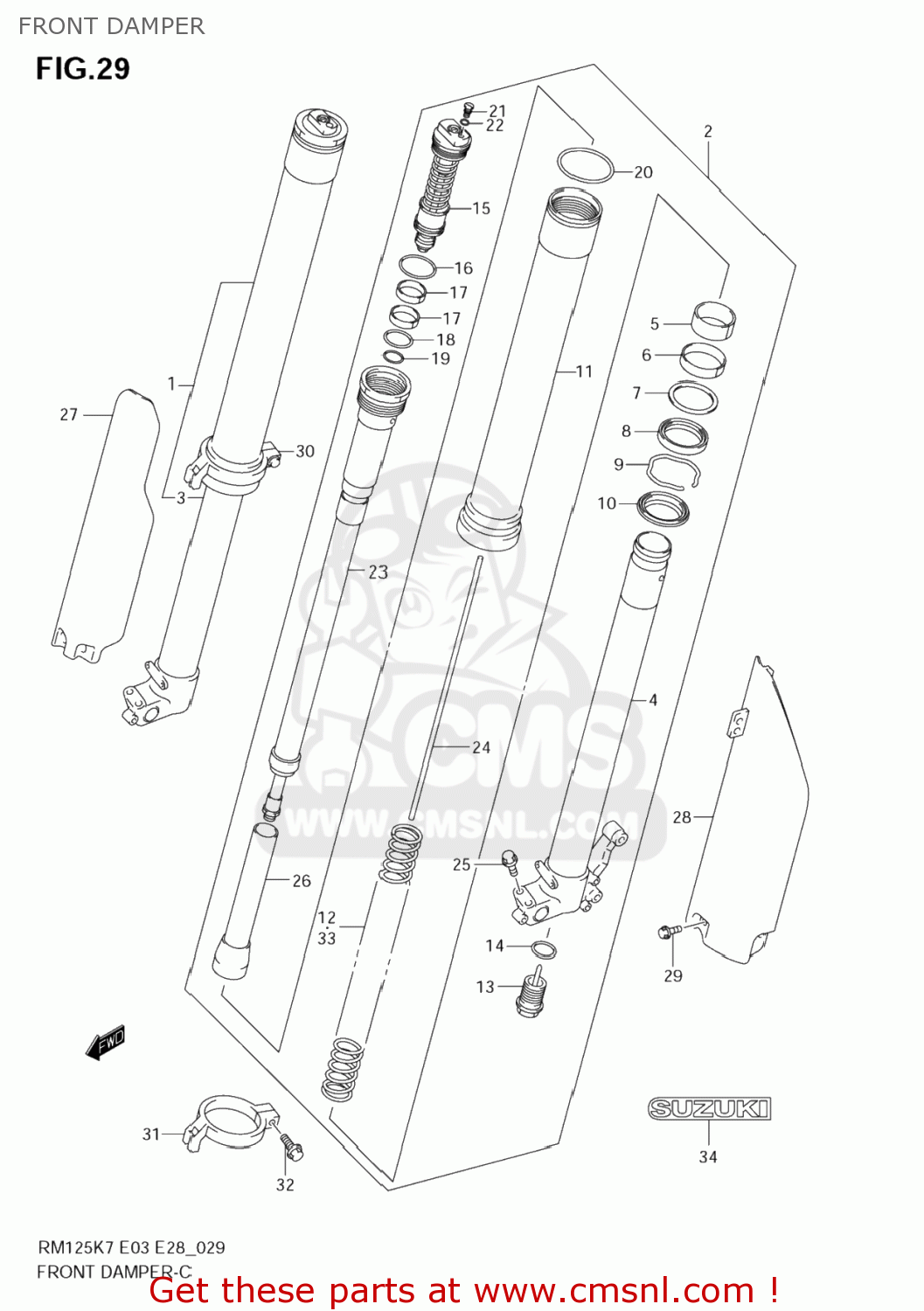

FRONT DAMPER

ref

part #

description

quantity

1

5110336FD0
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,274.00

2

5110436FD0
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,477.50

3

5111037FB0
ref: 3

TUBE,INNER,R

€ 434.50

4

5112037FB0
ref: 4

TUBE,INNER,L

€ 440.50

5

5112136F00
ref: 5

BUSH,SLIDE

€ 11.50

6

5116736F00
ref: 6

BUSH,GUIDE

€ 13.00

7

5115836F00
ref: 7

SPACER,SEAL

€ 5.00

8

5115337F80
ref: 8

SEAL,OIL

€ 13.50

9

5115627C40
ref: 9

RING,OIL SEAL STOPPER

€ 3.50

10

5117337F80
ref: 10

SEAL,DUST

€ 16.50

11

5113037F70
ref: 11

TUBE,OUTER

€ 520.00

12

5117137FD0
ref: 12

SPRING,FR(SOFT,K=0.42)

€ 115.50

13

5117037F80
ref: 13

BOLT,CTR

€ 156.50

14

5117736E20
ref: 14

O RING

€ 2.50

15

5135136FD0
ref: 15

BOLT,FORK

€ 192.50

16

5111737F80
ref: 16

O RING

€ 3.50

17

5112328E30
ref: 17

BUSH,FORK BOLT SLIDE

€ 9.50

18

5117436E40
ref: 18

O RING

€ 2.50

19

5117537F80
ref: 19

O RING

€ 3.50

20

5111837F80
ref: 20

O RING

€ 4.00

21

5135736F20
ref: 21

BOLT,PLUG

€ 8.00

22

5135828E30
ref: 22

O RING,PLUG

€ 2.50

23

5119037F80
ref: 23

ROD,DAMPER

€ 591.00

24

5119136F40
ref: 24

ROD,PUSH

€ 15.00

25

5132837F80
ref: 25

BOLT

€ 5.00

26

5119837F80
ref: 26

COLLAR,SPRING

€ 53.00

27

5150137F61
ref: 27

PROTECTOR,FR FORK,R

€ 92.50

28

5151137F61
ref: 28

PROTECTOR,FR FORK,L

€ 92.50

29

0910306256
ref: 29

BOLT(6X10)

€ 2.00

30

5122036E61
ref: 30

GUIDE,PROTECTOR,R

€ 29.00

31

5121036E61
ref: 31

GUIDE,PROTECTOR,L

€ 29.00

32

0154706207
ref: 32

BOLT

€ 2.50

33-1

5117137FC0
ref: 33-1

SPRING,FR(K=0.44)

€ 115.50

33-2

5117136F60
ref: 33-2

SPRING,FR(SOFT K=0.40)

€ 137.00

34

6866129F00DPZ
ref: 34

EMBLEM,SUZUKI

€ 25.00
