ELECTRICAL

RM250 1979 (N) USA (E03)

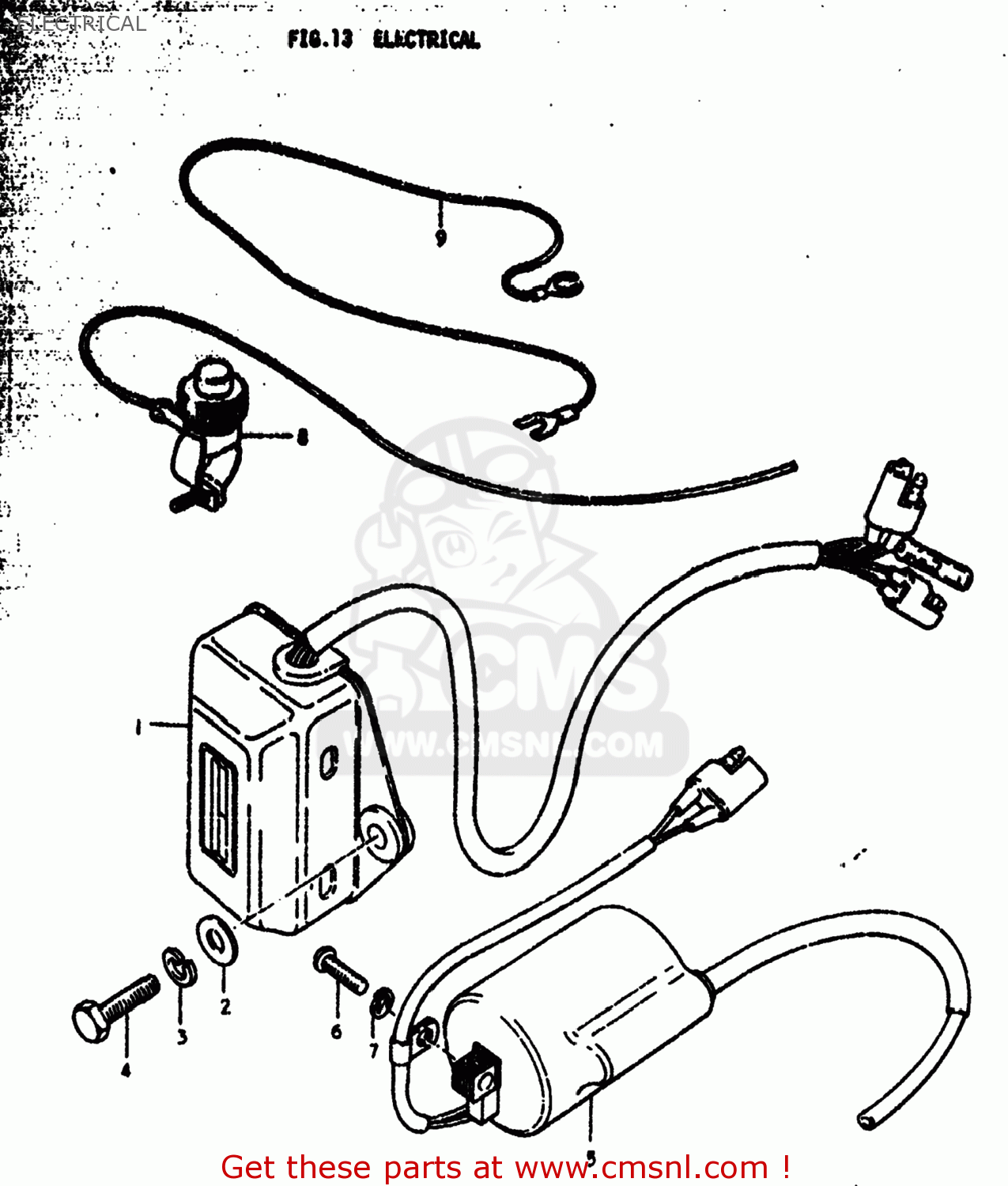

Electrical diagram RM250 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

3290041111
ref: 1

CDI UNIT ASSEMBLY

€ 196.00

0916006019
ref: 2

WASHER(6.5X16X1.2)

€ 1.50

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

0110706208
ref: 4
01500-06207

BOLT

€ 2.00

3341028600
ref: 5

COIL ASSY,IGNITION

€ 82.50

0211205208
ref: 6
02112-05207

SCREW 5X20

€ 3.00

0832121056
ref: 7
08321-0105A

LOCK WASHER

€ 3.00

3782004430
ref: 8
37820-14X50

SWITCH ASSEMBLY

€ 24.50

3685141200
ref: 9

WIRE,ENGINE STOP EARTH

€ 6.00
