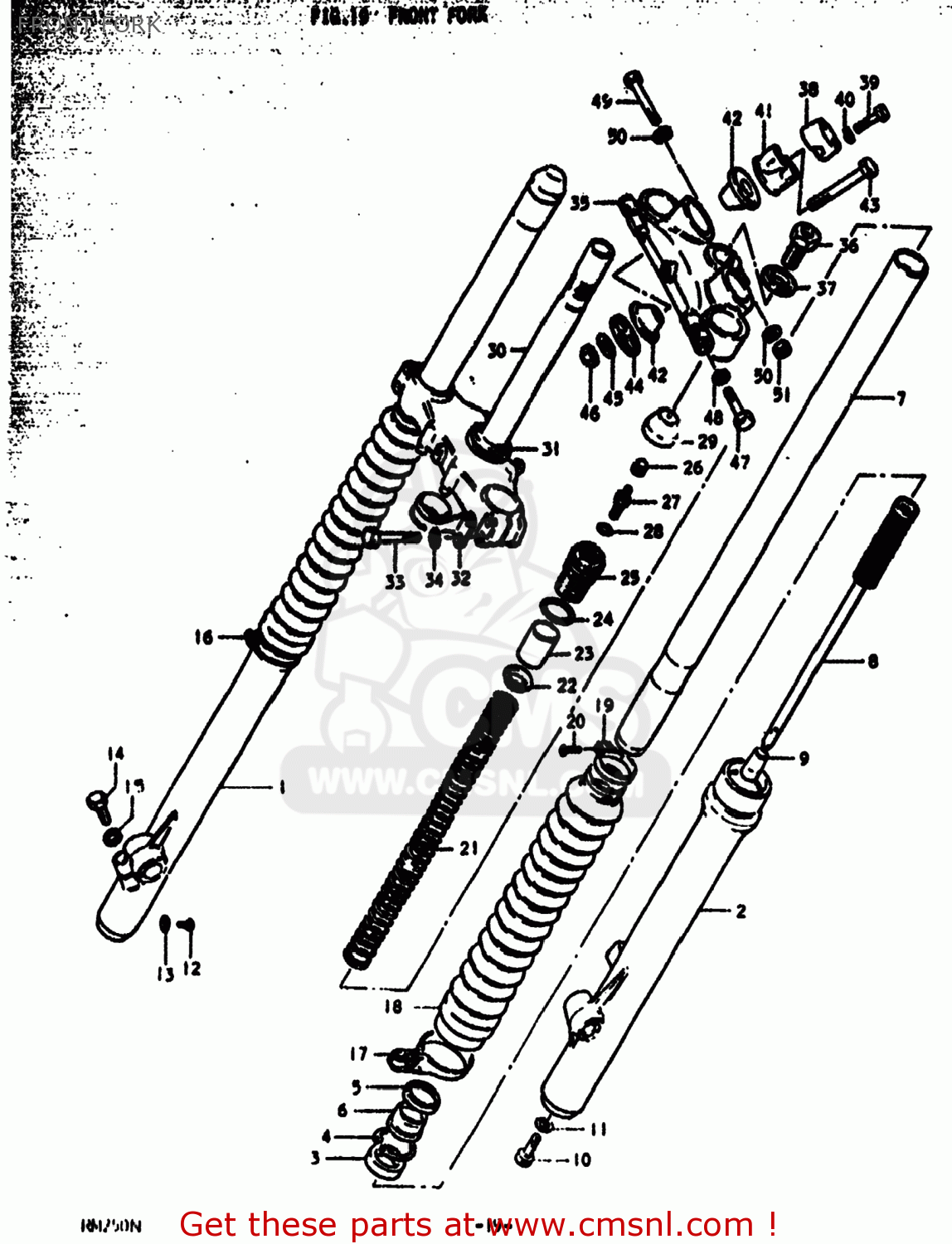

FRONT FORK

ref

part #

description

quantity

0

511004030008C
ref: 0

DAMPER SET

€ 321.00

1

5113040300
ref: 1

TUBE,OUTER,RIGHT

€ 89.00

2

5114040300
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115340300
ref: 3

SEAL,OIL

€ 11.50

4

5115640300
ref: 4

CIRCLIP,FORK OIL SEAL

€ 4.00

5

5114940300
ref: 5

CASE,DUST SEAL FRONT FORK

€ 0.00

6

5117340300
ref: 6
51173-40301

DUST SEAL,FRONT FORK

€ 12.50

7

5111040300
ref: 7

TUBE,FORK,INNER

€ 0.00

8

5114640200
ref: 8

CYLINDER,FRONT FORK

€ 31.00

9

5119540300
ref: 9

PIECE,OIL LOCK

€ 0.00

10

5114740300
ref: 10

BOLT,CYLINDER

€ 5.50

11

5114840300
ref: 11

GASKET,CYLINDER (NAS)

€ 2.50

12

0211104087
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

0110708308
ref: 14
01500-08307

BOLT (8X30)

€ 2.50

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

5157340300
ref: 16

BAND,FRONT FORK COVER BOOT

€ 5.00

17

5157240300
ref: 17

BAND,FRONT FORK COVER BOOT

€ 9.00

18

5157140300
ref: 18

BOOT

€ 31.50

19

5157540300
ref: 19
51575-44B00

BAND,BOOT

€ 9.00

20

0211204168
ref: 20
02112-0416A

SCREW

€ 1.00

21

5117140300
ref: 21

SPRING

€ 16.00

22

5117240300
ref: 22

GUIDE

€ 5.00

23

5117640300
ref: 23

COLLAR,SPRING

€ 0.00

24

5111740300
ref: 24

O RING

€ 2.50

25

5135140300
ref: 25

CAP,FORK INNER TUBE

€ 37.00

26

5129449000
ref: 26

CAP,VALVE

€ 22.50

27

5129349001
ref: 27

VALVE

€ 18.00

28

5111741211
ref: 28

O RING

€ 6.50

29

5118941220
ref: 29

CAP

€ 6.00

30

514104030008C
ref: 30

STEM,STEERING

€ 0.00

31

5162140030
ref: 31
51621-40X00

RACE,STEERING,OUTER,UPPER

€ 9.00

32

5862140300
ref: 32
58621-40301

GUIDE,CABLE

€ 14.50

33

0110708458
ref: 33
01500-08453

BOLT 8X45

€ 2.50

34

0832121088
ref: 34
08321-01087

LOCK WASHER

€ 2.00

35

513114040008C
ref: 35

HEAD,STEERING STEM

€ 0.00

36

5135141320
ref: 36

BOLT

€ 8.50

37

5135641310
ref: 37

WASHER

€ 6.00

38

562114030008C
ref: 38

HOLDER,HANDLEBAR

€ 7.00

39

0110708358
ref: 39
01500-0835B

BOLT

€ 3.50

40

0832121088
ref: 40
08321-01087

LOCK WASHER

€ 2.00

41

562214040008C
ref: 41

HOLDER,HANDLEBAR,LOWER

€ 40.00

42

5624140400
ref: 42

CUSHION,HANDLE HOLDER

€ 4.00

43

5132140400
ref: 43

BOLT,HANDLE HOLDER

€ 4.00

44

5172140400
ref: 44

COVER,HANDLEBAR HOLDER

€ 4.50

45

5135640400
ref: 45
09160-10035

WASHER,HANDLEBAR HOLDER

€ 2.00

46

0831921108
ref: 46
09159-10027

NUT

€ 3.00

47

0110710458
ref: 47
01500-1045A

BOLT

€ 2.00

48

0832121108
ref: 48
08321-01107

LOCK WASHER

€ 2.00

49

0110708508
ref: 49
01500-08507

BOLT 8X50

€ 3.00

50

0832221088
ref: 50
08322-01087

WASHER

€ 2.00

51

0831012088
ref: 51
08310-00087

NUT

€ 2.00
