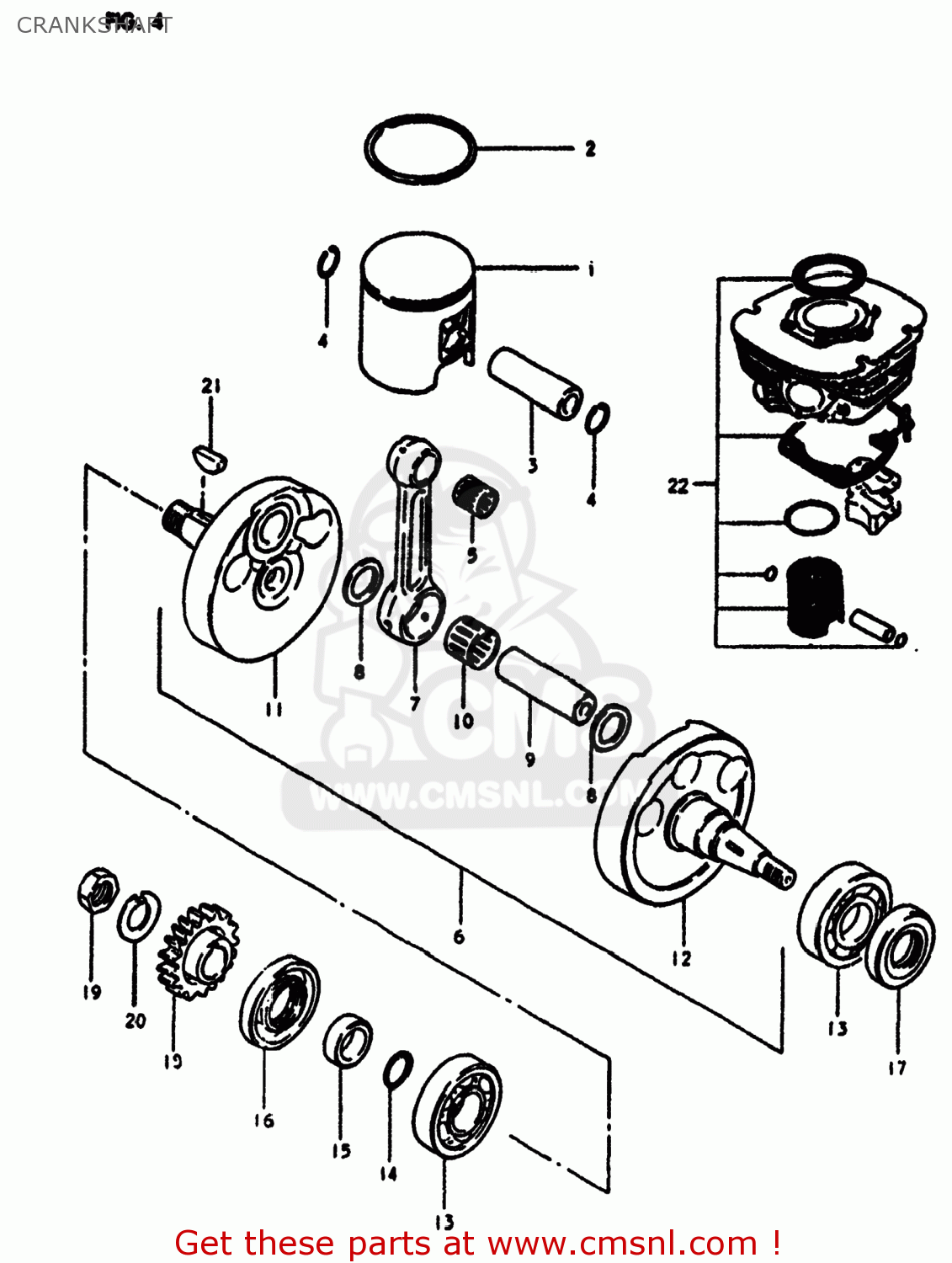

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040991
ref: 1-1
12110-40312

PISTON

€ 71.00

1-2

1211040991025
ref: 1-2
12110-40312-025

PISTON

€ 68.00

1-3

1211040991050
ref: 1-3
12110-40312-050

PISTON

€ 111.50

2-1

1214141600
ref: 2-1
12141-41620

RING,PISTON

€ 22.50

2-2

1214141600025
ref: 2-2

RING,PISTON

€ 26.00

2-3

1214141600050
ref: 2-3

RING,PISTON

€ 22.50

3

1215192201
ref: 3
12151-45501

PIN,PISTON (18MM)

€ 14.00

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318011
ref: 5
09263-18016

BEARING(18X23X22)

€ 14.00

6

1220040300
ref: 6

CRANKSHAFT ASSEMBLY

€ 349.50

7

1216140300
ref: 7

ROD,CONNECTING

€ 113.00

8

0916024014
ref: 8

WASHER(24X29X2)

€ 4.00

9

1221140300
ref: 9
12211-05D00

PIN,CRANK

€ 33.00

10

0926324011
ref: 10
09263-24027

ROLLER BEARING (24X30X1

€ 56.00

11

1222140300
ref: 11

CRANKSHAFT

€ 72.00

12

1226140300
ref: 12

CRANKSHAFT,LEFT

€ 86.00

13

0926225047
ref: 13
09262-25084

BEARING

€ 29.00

14

0928020004
ref: 14

O RING(D:2.4,ID:19.8)

€ 3.00

15

0918020065
ref: 15

SPACER

€ 0.00

16

0928932002
ref: 16

SEAL,OIL(32X52X8.4)

€ 27.00

17

0928324001
ref: 17

SEAL,OIL(24X50X9)

€ 19.00

18

2111140301
ref: 18
21111-40302

GEAR,PRIMARY DRIVE

€ 41.00

19

0914014017
ref: 19

NUT

€ 4.00

20

0916614010
ref: 20

WASHER

€ 2.00

21

0834131059
ref: 21

KEY

€ 3.00

22-1

1210040830
ref: 22-1
12100-40832

PISTON SET

€ 0.00

22-2

1210040830025
ref: 22-2

PISTON SET (OS:0.25)

€ 0.00
