prices are in EUR
ref
part #
description
quantity
1

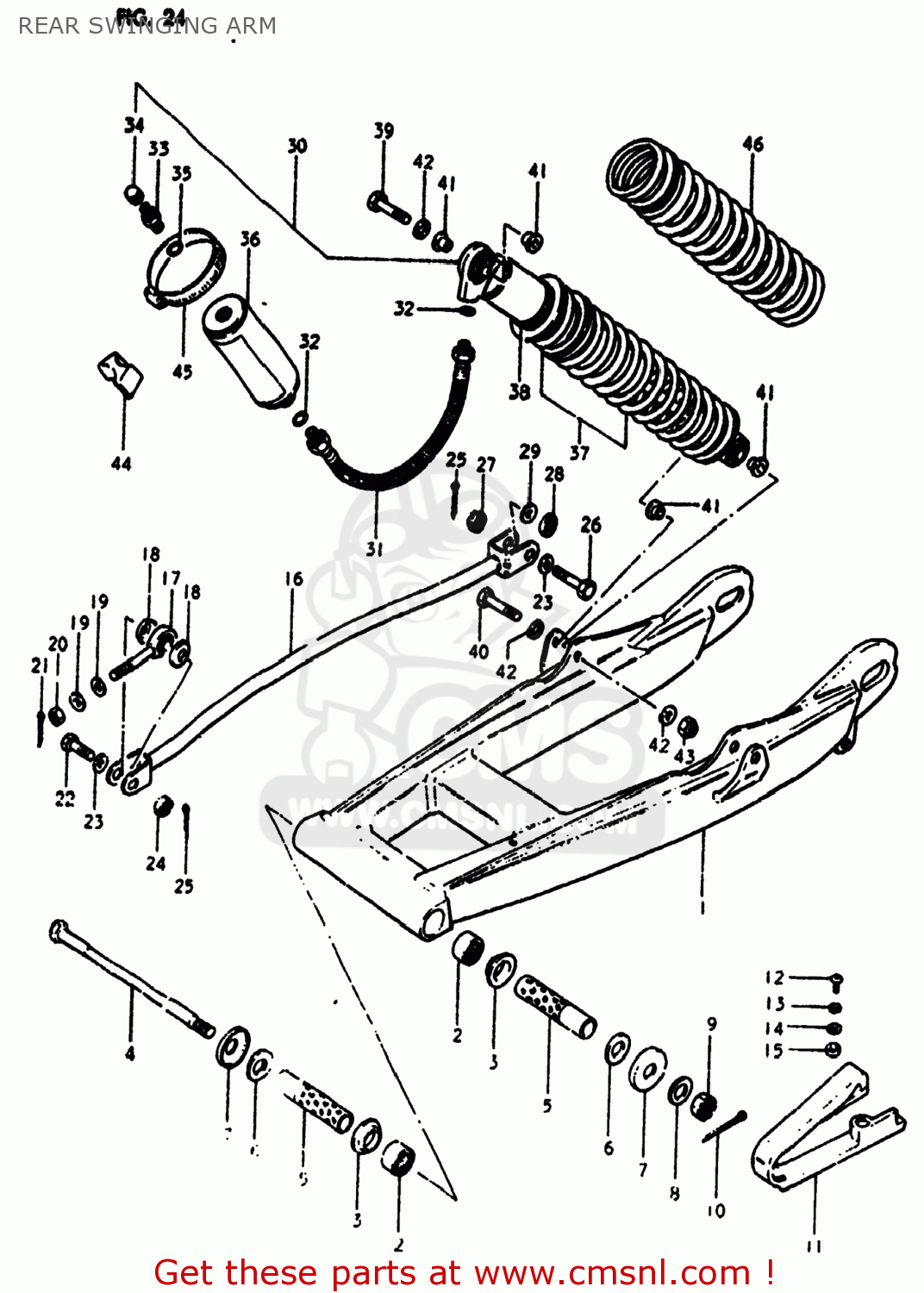

SWING ARM ASSEMBLY,REAR
2
BEARING
3
BUSHING,REAR SWING ARM PIVOT
4
SHAFT,REAR SWING ARM
6
WASHER
7
COVER,RR SWGARM DUST SEAL
8
WASHER
9
NUT 14MM
10
COTTER PIN
11
BUFFER,CHAIN TOUCH DEFENSE
12
SCREW
13
LOCK WASHER
15
SPACER (5.5X8X4)
16
LINK,REAR TORQUE
18
DUST SEAL,TORQUE LINK FR BRG
19
WASHER
20
NUT
21
PIN
22
BOLT 8X28
23
WASHER
24
NUT 8MM
25
PIN 20X20
26
BOLT 8X35
27
NUT 8MM
28
6433940400
ref: 28
64339-40401
6433940400
29
WASHER (8.5X16X2.6)
30
ABSORBER ASSEMBLY,REAR SHOCK
31
HOSE,REAR SHOCK ABSORBER
32
O-RING,RESERVE TANK
33
VALVE
34
CAP,VALVE AIR
35
O RING
36
RESERVE TANK,REAR SHOCK
37
NO PRODUCT DESCRIPTION AVAILABLE
39
BOLT
40
BOLT(8X46)
41
SPACER,RR SHK ABS INNER
42
WASHER
43
NUT
44
CUSHION,RR SHOCK ABSORBER
45
CLAMP
46-1
NO PRODUCT DESCRIPTION AVAILABLE
46-2
NO PRODUCT DESCRIPTION AVAILABLE
