CLUTCH (MODEL N)

RM250 1990 (L) USA (E03)

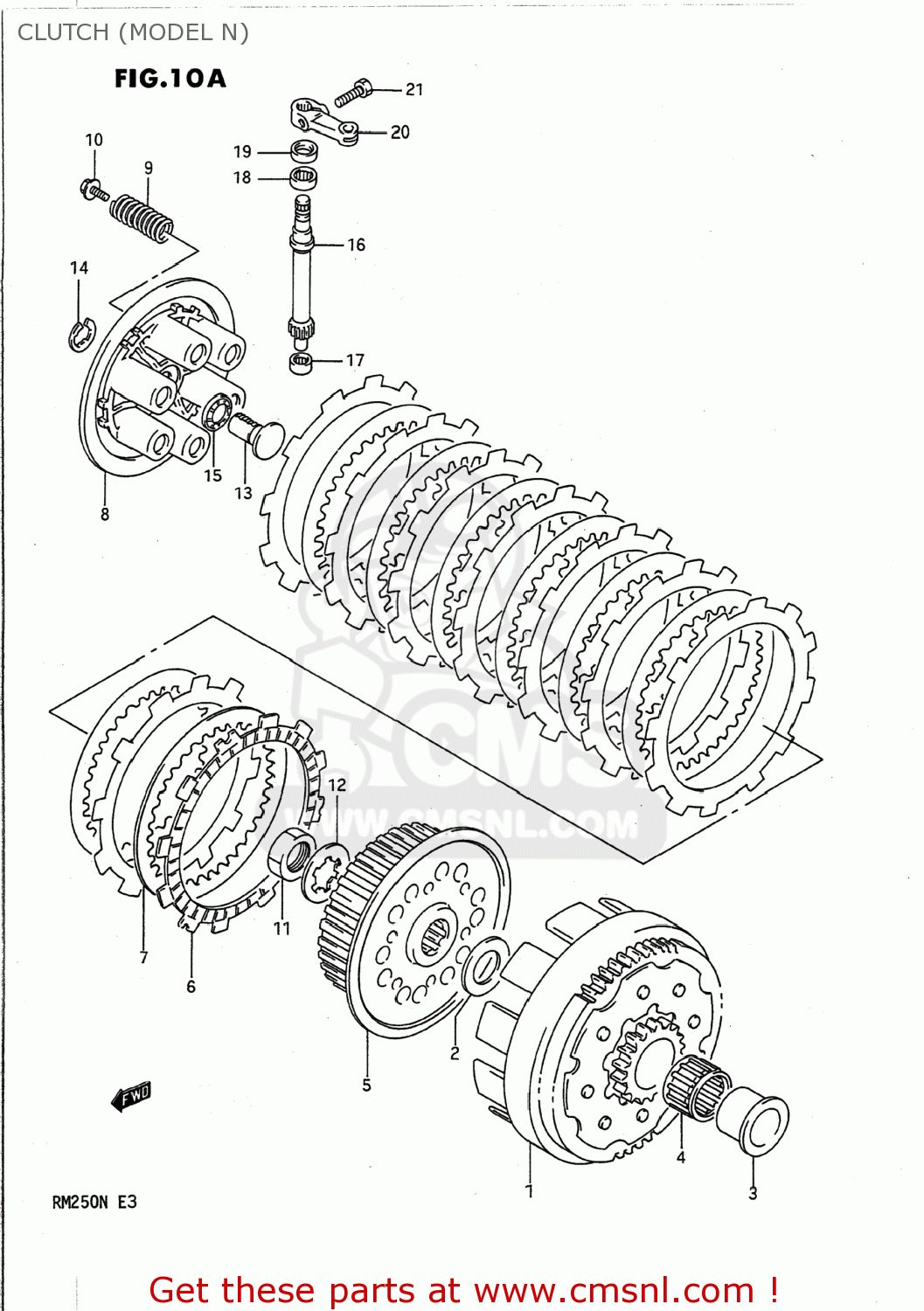

Clutch (model n) diagram RM250 1990 (L) USA (E03)

CLUTCH (MODEL N) RM250 1990 (L) USA (E03)

CLUTCH (MODEL N) RM250 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120028C30
ref: 1
21200-28E12

GEAR ASSEMBLY,PRIMARY DRIVE

€ 54.50

2

0916022067
ref: 2

WASHER(22X38X2)

€ 10.50

3

2125128C01
ref: 3

SPACER,PRIMARY DRIVEN GEAR

€ 23.50

4

0926329007
ref: 4
09263-29006

BEARING

€ 27.00

5

2141028C32
ref: 5
21411-28E10

HUB,CLUTCH SLEEVE

€ 93.00

6

2144107A01
ref: 6
21441-12D01

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

7

2145128C30
ref: 7
21451-28C31

PLATE,CLUTCH DRIVEN T: (NAS)

€ 10.50

8

2146228C32
ref: 8
21462-28C33

DISC,CLUTCH PRESSURE

€ 35.50

9

0944018025
ref: 9

SPRING

€ 9.00

10

0911605019
ref: 10

BOLT(5X25)

€ 3.00

11

0914020016
ref: 11

NUT

€ 6.00

12

0916722021
ref: 12

WASHER,LOCK

€ 2.00

13

2316528300
ref: 13
23165-46000

RACK,CLUTCH RELEASE

€ 20.00

14

0833211088
ref: 14
08332-1108A

E RING 8MM

€ 2.00

15

0926310002
ref: 15

BEARING(10X22X2.8)

€ 8.50

16

2326100B20
ref: 16

PINION,CLUTCH RELEASE(NT:12)

€ 46.50

17

0926309001
ref: 17

BEARING(9X13X10)

€ 11.00

18

0926312024
ref: 18

BEARING(12X16X10)

€ 11.00

19

0928510004
ref: 19

SEAL,OIL(10X17X5)

€ 3.50

20

2327120900
ref: 20
23271-20902

ARM,CLUTCH RELEASE

€ 20.50

21

0110706167
ref: 21
01500-06167

BOLT

€ 3.00
