MUFFLER
RM250 1990 (L) USA (E03)

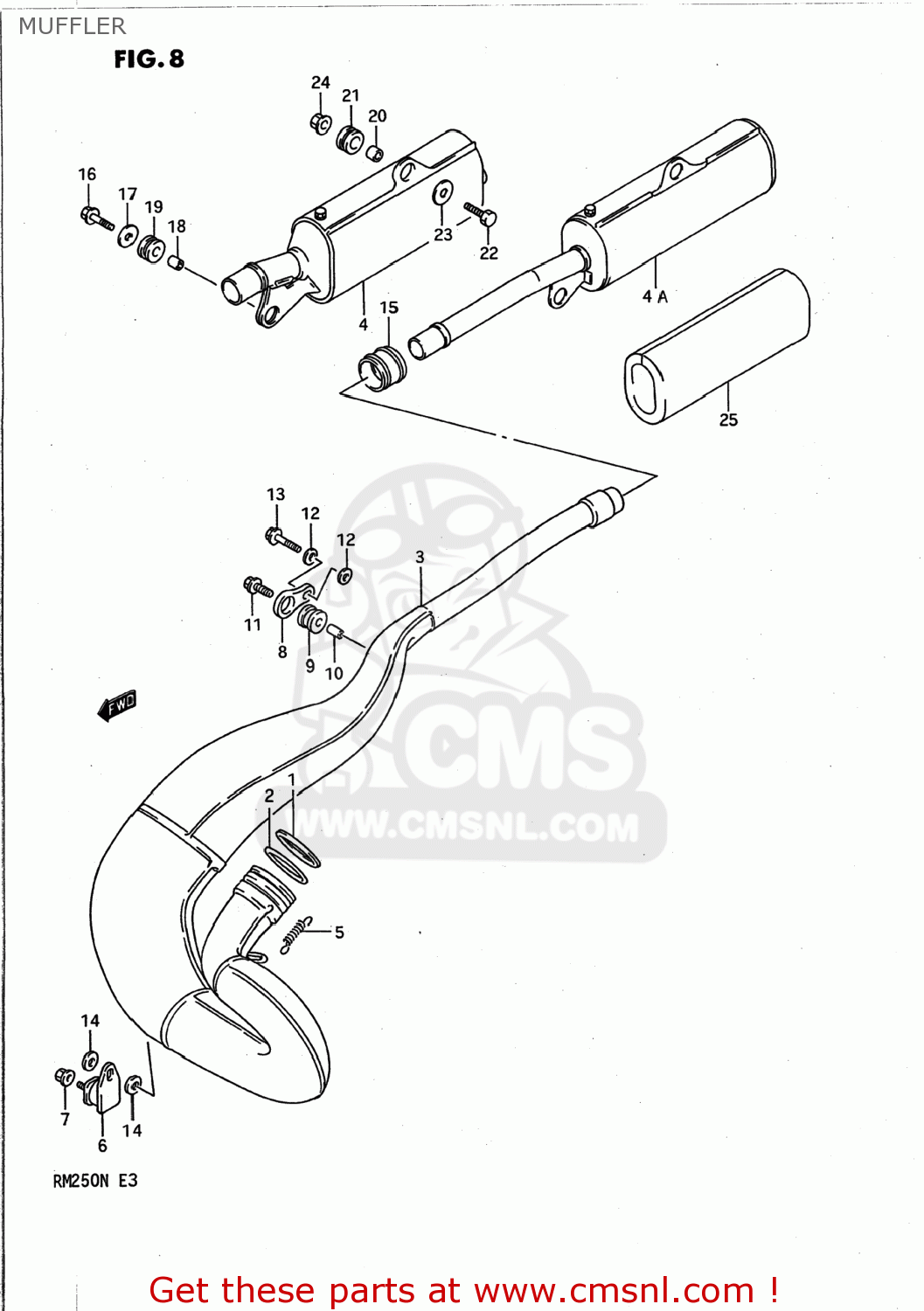

Muffler diagram RM250 1990 (L) USA (E03)
MUFFLER RM250 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1417228C00
ref: 1-1
WASHER,EXHAUST PIPE
€ 2.00
1-2
1417228C30
ref: 1-2
WASHER,EXHAUST PIPE
€ 2.00
2-1
1417128C01
ref: 2-1
O RING,EX PIPE
€ 20.50
2-2
1417128C30
ref: 2-2
O RING,EXHAUST PIPE
€ 19.00
3-1
1431028C01H01
ref: 3-1
BODY,MUFFLER,FIRST
€ 385.00
3-2
1431028C10H01
ref: 3-2
BODY,MUFFLER,FIRST
€ 370.00
3-3
1431028C20H01
ref: 3-3
14310-28C21
BODY,MUFFLER
€ 370.00
3-4
1431028C30H01
ref: 3-4
BODY,MUFFLER,FIRST
€ 443.50
4
1433028C02H01
ref: 4
14330-28C03
BODY,MUFFLER
€ 127.00
4A
1433028C20H01
ref: 4A
14330-28C20
BODY,MUFFLER
€ 123.50
5-1
0944311024
ref: 5-1
09443-11024-XC0
SPRING
€ 20.50
5-2
0944312042
ref: 5-2
09443-12042-XC0
SPRING
€ 10.50
6
1477041101
ref: 6
DAMPER,MUFFLER SUPPORT
€ 13.50
7
0831931087
ref: 7
NUT
€ 2.50
8-1
1476101B00
ref: 8-1
PLATE,MUFFLER MTG
€ 10.50
8-2
1476127C00
ref: 8-2
PLATE,MUFFLER MTG
€ 7.00
9
1476201B01
ref: 9
CUSHION,MUFFLER
€ 3.00
10-1
0918006136
ref: 10-1
SPACER(6.4X9X16)
€ 4.00
10-2
0918006062
ref: 10-2
09180-06268
SPACER (6.4X9X13.5)
€ 2.00
11
0154706167
ref: 11
BOLT
€ 2.00
12-1
0916006027
ref: 12-1
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
12-2
0916006027
ref: 12-2
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
13-1
0913906057
ref: 13-1
SCREW(6X25)
€ 2.50
13-2
0154706257
ref: 13-2
BOLT
€ 2.50
14-1
0916008065
ref: 14-1
09160-08126
WASHER
€ 1.50
14-2
0916008053
ref: 14-2
09160-08039
WASHER (8.5X19X2.3)
€ 2.00
15
1477128C01
ref: 15
14771-28C02
CONNECTOR,MUFFLER
€ 52.50
16
0154706207
ref: 16
BOLT
€ 2.50
17
0916006030
ref: 17
09160-06136
WASHER (6.5X29X1.6)
€ 2.50
18
0918006210
ref: 18
09180-06285
SPACER (6.8X10X9)
€ 2.50
19
0932010041
ref: 19
CUSHION
€ 4.50
20
0918008155
ref: 20
09180-08170
SPACER (8.1X11.5X13)
€ 5.00
21
0932011016
ref: 21
CUSHION
€ 5.50
22
0110708307
ref: 22
01500-08307
BOLT
€ 2.50
23
0916008002
ref: 23
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
24
0831931087
ref: 24
NUT
€ 2.50
25
1435128C20
ref: 25
SILENCER,MUFFLER
€ 101.00
