CRANKSHAFT (MODEL N)

RM250 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

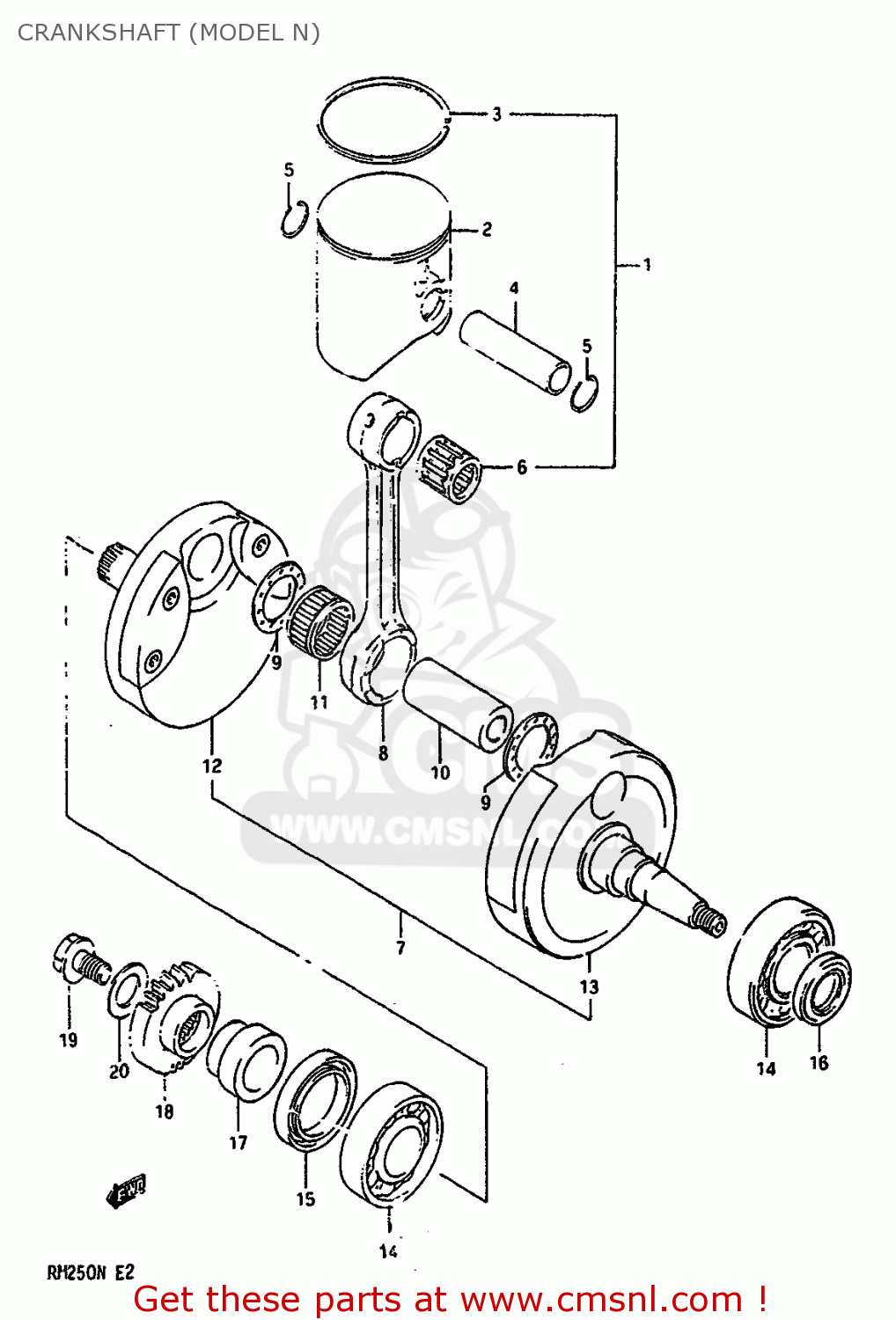

Crankshaft (model n) diagram RM250 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1210028862
ref: 1
OPT

PISTON KIT

€ 206.00

1211028C400F0
ref: 2

PISTON

€ 71.50

1214128C10
ref: 3

RING,PISTON

€ 27.50

1215128C00
ref: 4

PIN,PISTON

€ 13.00

0938118002A
ref: 5

CIRCLIP,PISTON PIN

€ 1.50

0926318016
ref: 6

BEARING(18X23X22)

€ 14.00

1220028C30
ref: 7

CRANKSHAFT ASSEMBLY

€ 836.00

1216128C30
ref: 8

ROD,CONNECTING

€ 92.00

0916024027
ref: 9

WASHER(24X38.5X1.5)

€ 19.50

1221128C10
ref: 10

PIN,CRANK

€ 33.00

0926324026
ref: 11

BEARING(24X30X20)

€ 62.50

1222028C30
ref: 12

CRANKSHAFT

€ 297.00

1226028C30
ref: 13

CRANKSHAFT,LEFT

€ 307.00

0926225108
ref: 14

BEARING(25X62X17)

€ 34.50

0928336007
ref: 15

SEAL,OIL(36X52X7)

€ 13.50

0928320051
ref: 16

SEAL,OIL(20X37X6)

€ 14.50

1235928C20
ref: 17

SPACER,PRIMARY DRIVE GEAR

€ 16.00

2111114310
ref: 18

GEAR,PRIMARY DRIVE

€ 46.50

2114127C11
ref: 19

BOLT,PRIMARY DRIVE GEAR

€ 11.50

0916411004
ref: 20

WASHER

€ 6.00

0916411004
ref: 21

WASHER

€ 6.00

CRANKSHAFT (MODEL N)

all assemblies
