FRAME COVER (MODEL N)

RM250 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

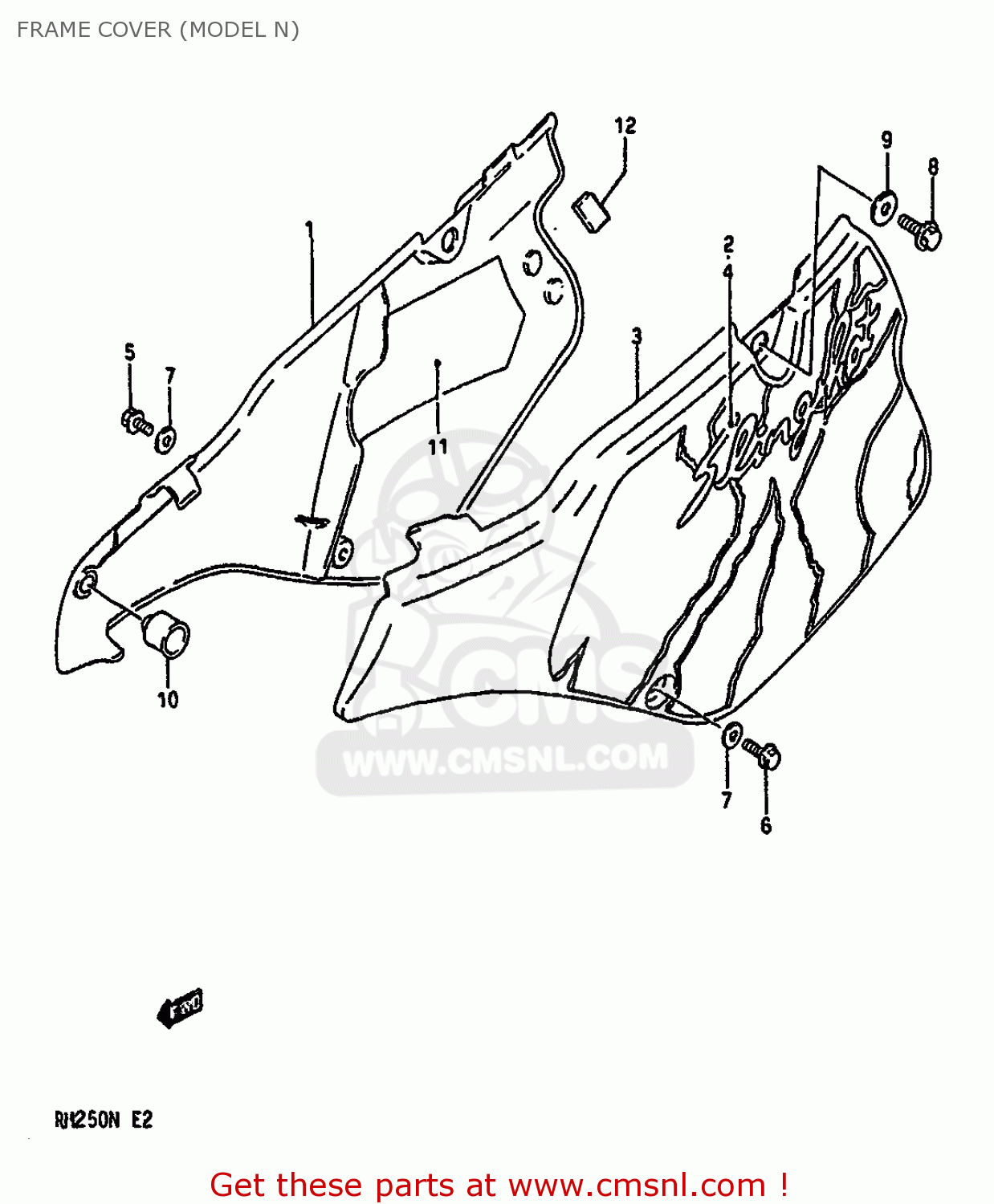

Frame cover (model n) diagram RM250 1991 (M) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

4711128C0025Y
ref: 1

COVER,FRAME,R(YELLOW)

€ 45.50

6813228C401ME
ref: 2

TAPE SET,RH

€ 49.50

4721127C0025Y
ref: 3

COVER,FRAME,L(YELLOW)

€ 44.00

68142430001ME
ref: 4

TAPE SET,LH

€ 0.00

0154706127
ref: 5

BOLT

€ 2.00

0154706167
ref: 6

BOLT

€ 2.00

0916806027
ref: 7

GASKET(6.5X20X1.5) (NAS)

€ 3.50

0151708207
ref: 8

BOLT

€ 3.00

0916908045
ref: 9

WASHER

€ 2.00

0932110024
ref: 10

CUSHION

€ 8.50

4716628C03
ref: 11

SHIELD,FRAME COVER,RIGHT

€ 12.50

4716128C00
ref: 12

CUSHION,FRAME COVER,REAR

€ 3.50

0151708207
ref: 13

BOLT

€ 3.00

0916908045
ref: 14

WASHER

€ 2.00

15-1

0932110018
ref: 15-1
MODEL K

CUSHION

€ 5.00

15-2

0932110024
ref: 15-2
MODEL L/M

CUSHION

€ 8.50

16-1

4716628C00
ref: 16-1
MODEL K

SHIELD,FRAME COVER,RIGHT

€ 12.50

16-2

4716628C02
ref: 16-2
MODEL L

SHIELD,FRAME COVER,RIGHT

€ 12.50

16-3

4716628C03
ref: 16-3
MODEL M

SHIELD,FRAME COVER,RIGHT

€ 12.50

4716128C00
ref: 17
MODEL M

CUSHION,FRAME COVER,REAR

€ 3.50
