FRONT DAMPER (MODEL M)
RM250 1991 (M) USA (E03)

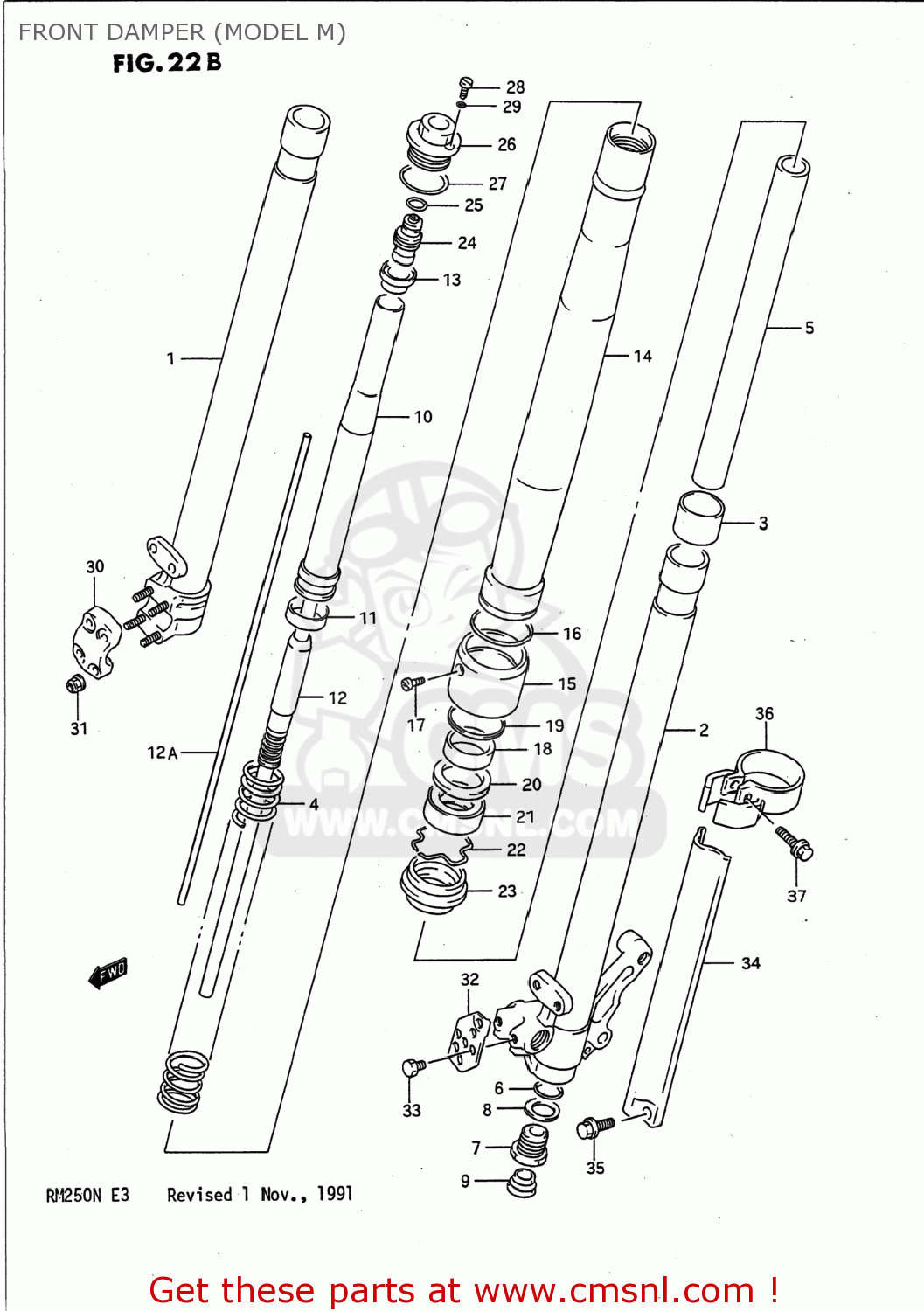

Front damper (model m) diagram RM250 1991 (M) USA (E03)
FRONT DAMPER (MODEL M) RM250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110328C71
ref:
DAMPER ASSEMBLY,RIGHT
€ 1,573.00
5110428C71
ref:
DAMPER ASSEMBLY,LEFT
€ 1,736.00
1
5111027C40
ref: 1
TUBE,INNER,RIGHT
€ 312.50
2
5112027C40
ref: 2
51120-27C41
TUBE,INNER,LEFT
€ 327.50
3
5112127C40
ref: 3
BUSH,SLIDE
€ 13.50
4
5117128C70
ref: 4
SPRING,MAIN
€ 92.00
5
5114627C40
ref: 5
CYLINDER
€ 203.50
6
5117427C40
ref: 6
51175-03B30
O-RING
€ 3.00
7
5117028C70
ref: 7
BOLT,CTR
€ 120.50
8
5114827C40
ref: 8
GASKET (NAS)
€ 3.00
9
5118908D00
ref: 9
CAP
€ 7.50
10
5117527C40
ref: 10
SPACER,SPRING
€ 132.50
11
5117627C40
ref: 11
RING,PISTON
€ 9.00
12
5112828C70
ref: 12
51190-28C61
ROD ASSEMBLY,PISTON
€ 157.50
12A
5119127C40
ref: 12A
ROD,PUSH
€ 43.50
13
5135527C40
ref: 13
51355-27C41
SEAT,SPRING STOPPER
€ 25.00
14
5113027C40
ref: 14
TUBE,OUTER
€ 498.50
15
5113527C40
ref: 15
CASE,OIL SEAL
€ 50.50
16
5113127C40
ref: 16
O RING,CASE
€ 4.50
17
5113427C40
ref: 17
SCREW
€ 2.50
18
5116727C40
ref: 18
BUSH,GUIDE
€ 18.50
19
5113327C40
ref: 19
RING,STOPPER,UPPER
€ 3.00
20
5115827C40
ref: 20
SPACER,SEAL
€ 6.00
21
5115327C40
ref: 21
51153-28E30
OIL SEAL,FRONT FORK
€ 19.00
22
5115627C40
ref: 22
RING,OIL SEAL STOPPER
€ 3.50
23
5117327C40
ref: 23
51173-28E40
SEAL,DUST
€ 22.00
24
5118027C40
ref: 24
ADJUSTER,SPRING
€ 63.00
25
5112927C40
ref: 25
09280-12012
NUT
€ 5.00
26
5135127C40
ref: 26
BOLT,FORK
€ 75.00
27
5111727C40
ref: 27
O RING
€ 3.50
28
5135727C40
ref: 28
BOLT,PLUG
€ 5.50
29
5135827C40
ref: 29
51117-19C10
O RING, PLUG
€ 2.00
30
5113227C40
ref: 30
HOLDER,AXLE,R
€ 34.00
31
0831931067
ref: 31
NUT
€ 2.50
31
0831931067
ref: 31
NUT
€ 2.50
31
0831931067
ref: 31
NUT
€ 2.50
32
5924827C40
ref: 32
GUIDE,HOSE,L
€ 14.00
33
5924927C40
ref: 33
01500-05087
BOLT, HOSE GUIDE
€ 2.00
34-1
5150127C40
ref: 34-1
51501-05D60
PROTECTOR,FORK,RIGHT
€ 62.50
34-2
5151127C40
ref: 34-2
PROTECTOR,FORK,L
€ 48.50
35
5862727C40
ref: 35
BOLT,PROTECTOR(6X10)
€ 2.50
36-1
5120127C40
ref: 36-1
GUIDE,FORK PROTECTOR,R
€ 46.00
36-2
5121127C40
ref: 36-2
GUIDE,FORK PROTECTOR,LEFT
€ 46.00
37
5862827C40
ref: 37
BOLT,PROTECTOR GUIDE
€ 5.00
37
5862827C40
ref: 37
BOLT,PROTECTOR GUIDE
€ 5.00
