RM250 1991 (M) USA (E03)

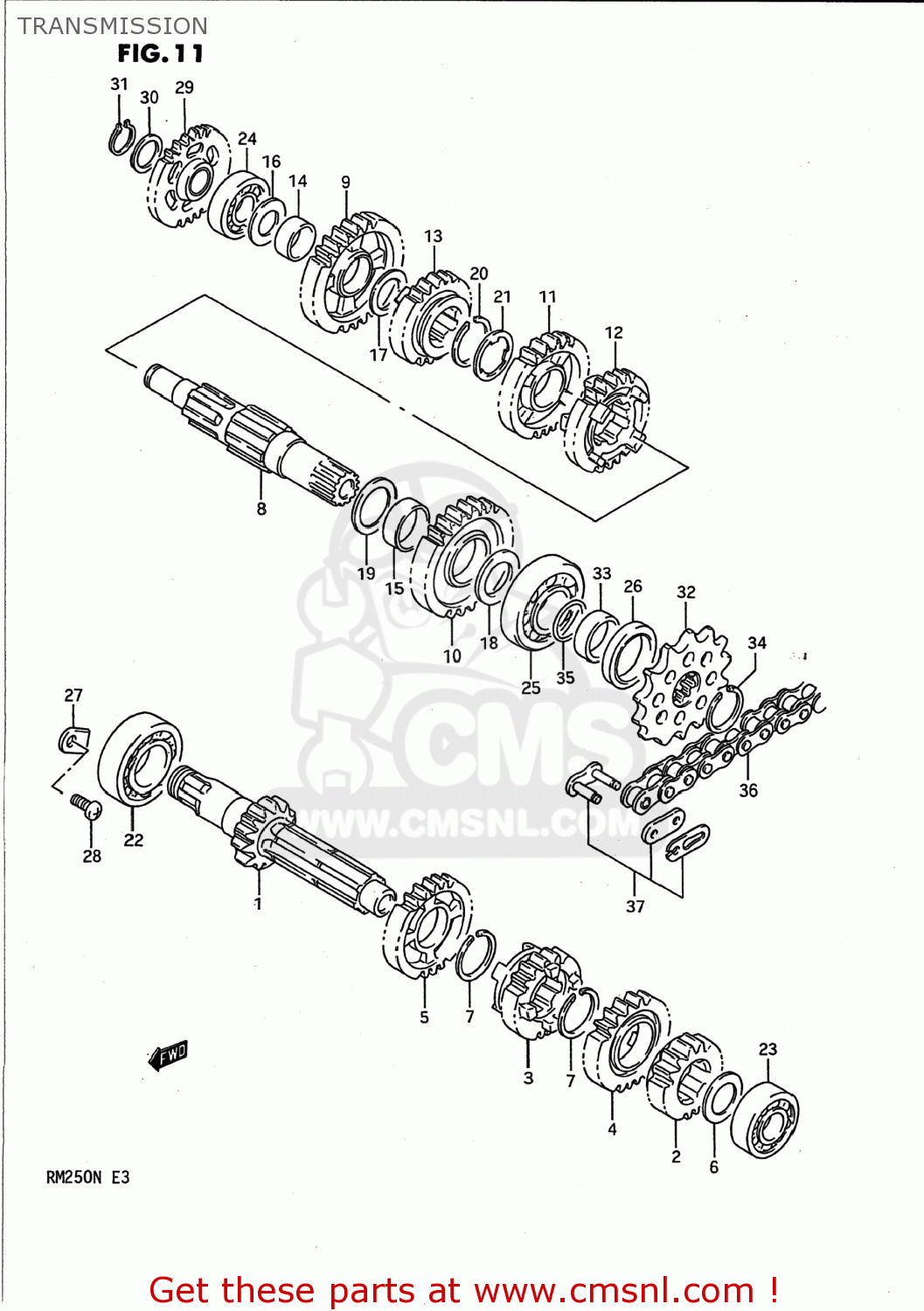

Transmission diagram RM250 1991 (M) USA (E03)
TRANSMISSION RM250 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412128C01
ref: 1
24121-28C04
SHAFT,COUNTER
€ 123.00
2-1
2422128C00
ref: 2-1
GEAR,2ND DRIVE(NT:15)
€ 62.00
2-2
2422128C10
ref: 2-2
GEAR,SECOND DRIVE (NT:17)
€ 75.00
3-1
2423128C01
ref: 3-1
24231-28C21
GEAR,THIRD DRIVE (NT:17)
€ 78.50
3-2
2423128C10
ref: 3-2
24231-28C21
GEAR,THIRD DRIVE
€ 78.50
3-3
2423128C20
ref: 3-3
24231-28C21
GEAR,THIRD DRIVE
€ 78.50
4-1
2424128C00
ref: 4-1
24241-28C20
GEAR,FOURTH DRIVE
€ 146.00
4-2
2424128C20
ref: 4-2
GEAR,4TH DRIVE(NT:19)
€ 146.00
5
2425128C00
ref: 5
24251-28C01
GEAR,FIFTH DRIVE
€ 88.50
6
0821117301
ref: 6
09181-17223
WASHER,THRUST
€ 3.00
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8
2413128C01
ref: 8
24131-28C03
SHAFT,DRIVE
€ 189.00
9
2431128C01
ref: 9
24311-28C02
GEAR,FIRST DRIVEN
€ 131.50
10-1
2432128C02
ref: 10-1
GEAR,2ND DRIVEN(NT:26)
€ 65.00
10-2
2432128C10
ref: 10-2
GEAR,2ND DRIVEN(NT:29)
€ 128.50
11-1
2433128C01
ref: 11-1
24331-28C03
GEAR,THIRD DRIVEN
€ 85.00
11-2
2433128C02
ref: 11-2
24331-28C03
GEAR,THIRD DRIVEN
€ 85.00
12-1
2434128C01
ref: 12-1
24341-28C20
GEAR,FOURTH DRIVEN
€ 146.00
12-2
2434128C10
ref: 12-2
24341-28C20
GEAR,FOURTH DRIVEN
€ 146.00
12-3
2434128C20
ref: 12-3
GEAR,4TH DRIVEN(NT:22)
€ 146.00
13-1
2435128C01
ref: 13-1
24351-28C20
GEAR,FIFTH DRIVEN
€ 82.50
13-2
2435128C20
ref: 13-2
GEAR,5TH DRIVEN(NT:23)
€ 82.50
14
0930020037
ref: 14
BUSH(20X24X10)
€ 12.50
15
0930025031
ref: 15
BUSH(25X28X10)
€ 16.00
16
0821117301
ref: 16
09181-17223
WASHER,THRUST
€ 3.00
17
0821120301
ref: 17
WASHER
€ 3.00
18
0821122342
ref: 18
09181-22240
WASHER
€ 4.50
19
0821125341
ref: 19
09181-25167
WASHER
€ 3.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
0916725012
ref: 21
WASHER,LOCK
€ 3.50
22
0926225003
ref: 22
BEARING(25X52X15)
€ 20.50
23
0926217023
ref: 23
BEARING(17X40X12)
€ 14.00
24
0926217023
ref: 24
BEARING(17X40X12)
€ 14.00
25
0926222023
ref: 25
BEARING(22X56X15)
€ 40.50
26
0928328020
ref: 26
SEAL,OIL(28X38X6)
€ 11.50
27
2474120A10
ref: 27
24741-21A00
RETAINER,SHIFT CAM,R BEARING
€ 2.00
28
0211206128
ref: 28
02112-06127
SCREW 6X12
€ 2.00
29
2626028C01
ref: 29
26260-05D00
GEAR,KICK STARTER IDLE
€ 47.00
30
0822117245
ref: 30
09181-17130
SHIM
€ 3.00
31
0938017001
ref: 31
CIRCLIP
€ 2.00
32-1
2751114310
ref: 32-1
27511-37F00
SPROCKET,ENGINE
€ 23.50
32-2
2751114300
ref: 32-2
27511-47D00
SPROCKET,ENGINE
€ 23.00
32-3
2751114320
ref: 32-3
SPROCKET(NT:15)
€ 20.00
33
2753128C00
ref: 33
SPACER,ENGINE SPROCKET
€ 10.50
34
0938022006
ref: 34
CIRCLIP
€ 3.00
35
0928021010
ref: 35
O RING(D:1.9,ID:21.8)
€ 2.50
36-1
2760028C00116
ref: 36-1
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
36-2
2760028C00116
ref: 36-2
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
37-1
2762028C00
ref: 37-1
27620-28C01
JOINT ASSEMBLY,CHAIN
€ 8.50
37-2
2762014262
ref: 37-2
JOINT ASSEMBLY,CHAIN
€ 0.00
