CRANKSHAFT (MODEL P)
RM250 1993 (P) USA (E03)

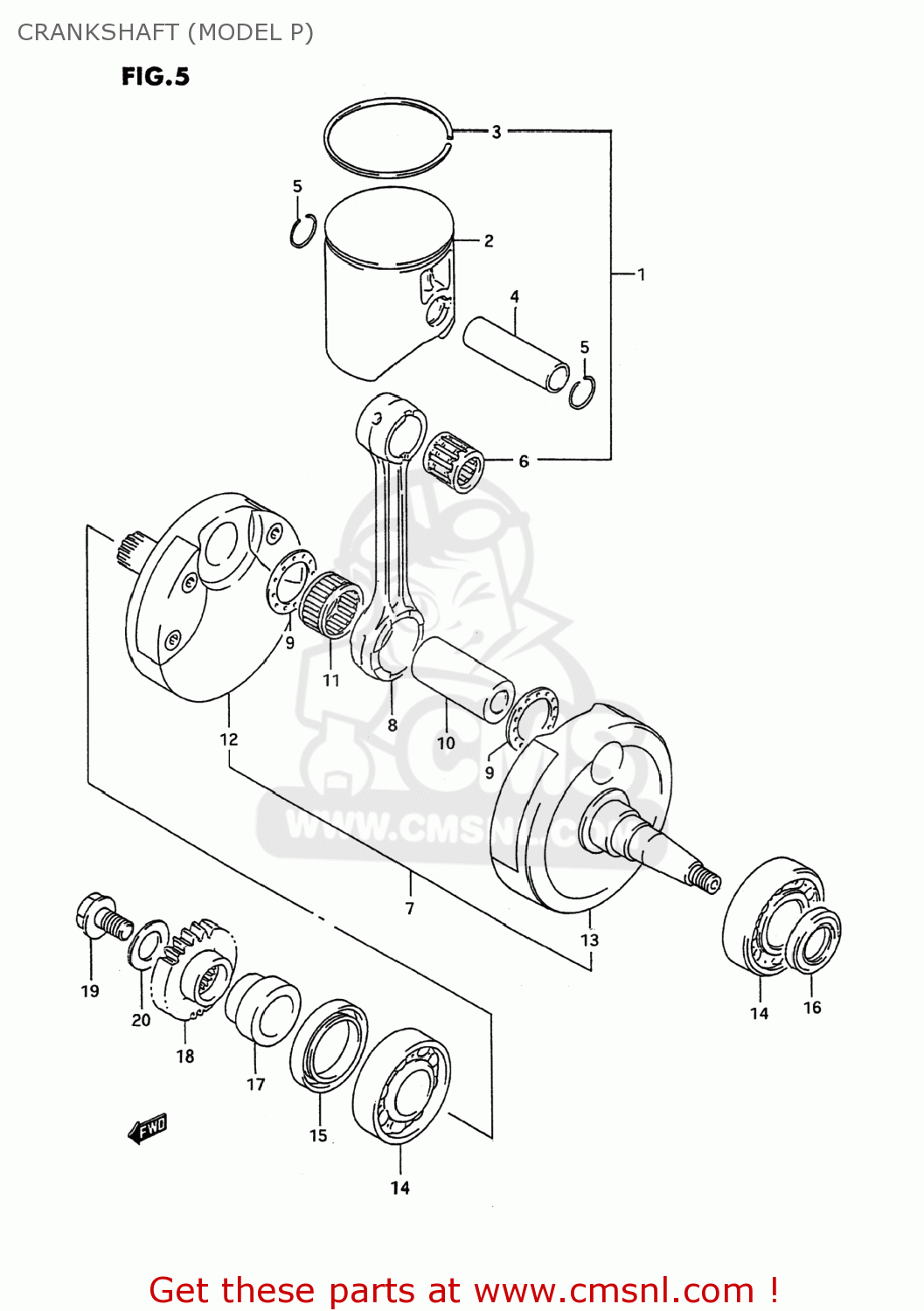

Crankshaft (model p) diagram RM250 1993 (P) USA (E03)
CRANKSHAFT (MODEL P) RM250 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
1211028E000F0
ref: 2
12110-29E20-0F0
PISTON
€ 71.50
2
1211028E000F0
ref: 2
12110-29E20-0F0
PISTON
€ 71.50
3
1214128E00
ref: 3
RING,PISTON
€ 24.50
4
1215128C00
ref: 4
12151-37F00
PIN,PISTON
€ 13.00
5
0938118002
ref: 5
CIRCLIP
€ 1.50
6
0926318016
ref: 6
BEARING(18X23X22)
€ 14.00
7
1220028E00
ref: 7
CRANKSHAFT ASSY
€ 836.00
8
1216128C30
ref: 8
ROD,CONNECTING
€ 92.00
9
0916024027
ref: 9
WASHER(24X38.5X1.5)
€ 19.50
10
1221128C10
ref: 10
12211-05D00
PIN,CRANK
€ 33.00
11
0926324026
ref: 11
BEARING(24X30X20)
€ 62.50
12
1222028E00
ref: 12
CRANKSHAFT,R
€ 297.00
13
1226028E00
ref: 13
CRANKSHAFT,L
€ 307.00
14
0926225108
ref: 14
BEARING(25X62X17)
€ 34.50
15
0928336007
ref: 15
SEAL,OIL(36X52X7)
€ 13.50
16
0928320051
ref: 16
SEAL,OIL(20X37X6)
€ 14.50
17
1235928C20
ref: 17
12359-00B20
SPACER,PRIMARY DRIVE GEAR
€ 16.00
18
2111114320
ref: 18
21111-14321
GEAR,PRIMARY DRIVE (NT:
€ 46.50
19
2114127C11
ref: 19
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
20
0916411004
ref: 20
WASHER
€ 6.00
21
1210128810
ref: 21
12101-28812
TOP END KIT,ENGINE
€ 237.00
