RADIATOR (MODEL R/S)
RM250 1993 (P) USA (E03)

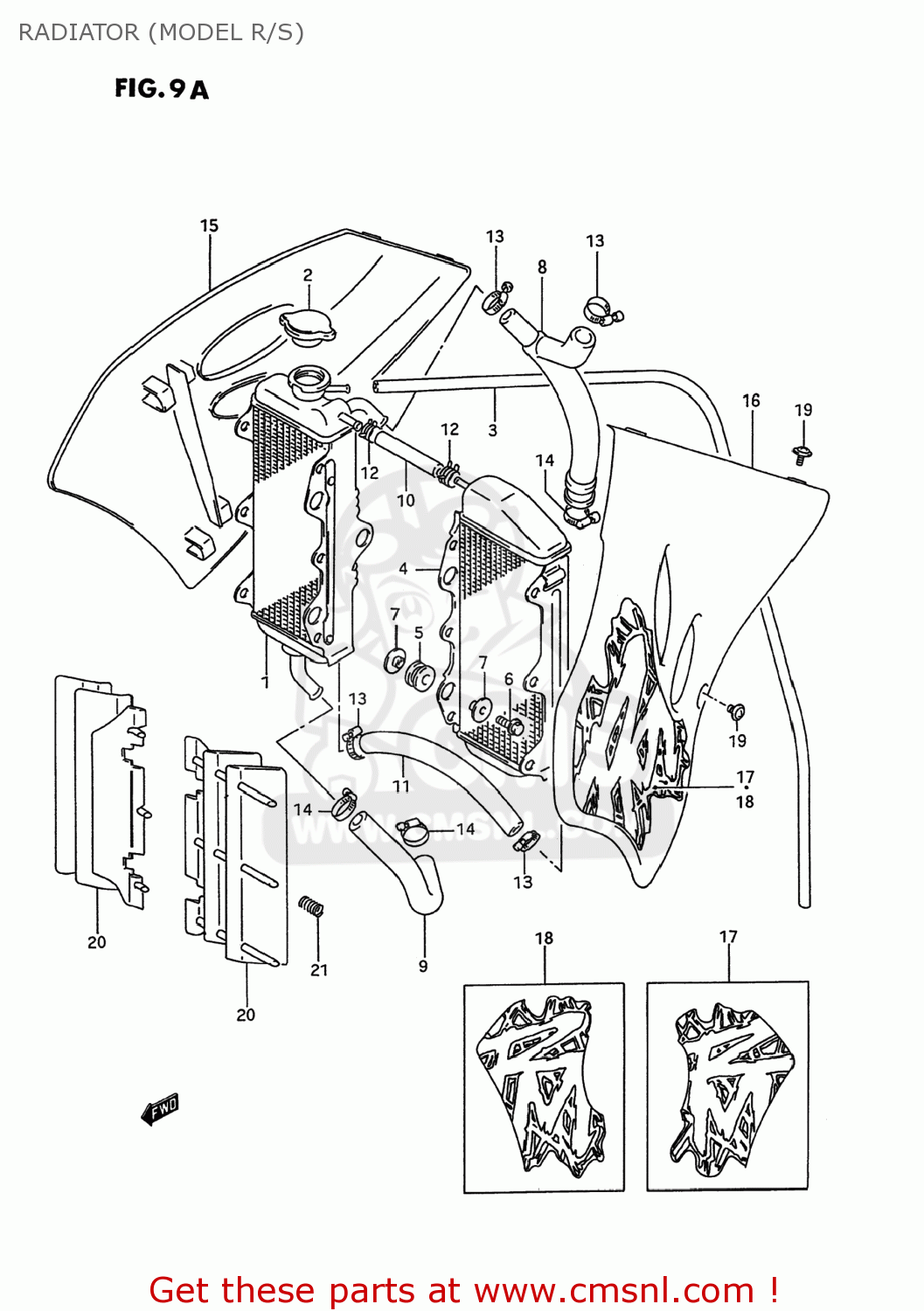

Radiator (model r/s) diagram RM250 1993 (P) USA (E03)
RADIATOR (MODEL R/S) RM250 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771028E01
ref: 1
RADIATOR,WATER,R
€ 478.50
2
1773012C01
ref: 2
17730-08J00
CAP,RADIATOR
€ 40.00
3
093515080300B
ref: 3
HOSE(5X8X2000)
€ 10.00
4
1772028E02
ref: 4
RADIATOR,WATER,L
€ 450.50
5
1778719A00
ref: 5
CUSHION,RADIATOR LWR
€ 3.50
6
0154706253
ref: 6
01547-0625B
SCREW
€ 2.50
7
1778126C00
ref: 7
WASHER,RDTR SPRT
€ 2.50
8
1785128E10
ref: 8
HOSE,RADIATOR INLET
€ 67.50
9
1785228C10
ref: 9
HOSE,RADIATOR OUTLET
€ 14.50
10
1785528E00
ref: 10
17854-13810
HOSE,WATER
€ 5.50
11
1785428C20
ref: 11
HOSE,RADIATOR JOINT NO.2
€ 19.00
12-1
0940113406
ref: 12-1
09401-13404
CLIP
€ 2.50
12-2
0940113414
ref: 12-2
CLIP
€ 2.50
13-1
0940222502
ref: 13-1
09402-22511
CLAMP
€ 6.00
13-2
0940222511
ref: 13-2
CLAMP
€ 6.00
14-1
0940225502
ref: 14-1
09402-28511
CLAMP
€ 8.50
14-2
0940228511
ref: 14-2
CLAMP
€ 8.50
15
1776128E0125Y
ref: 15
COVER,RADIATOR,R
€ 55.50
16
1776228E0125Y
ref: 16
COVER,RADIATOR,L
€ 51.50
17-1
6866128E10C2M
ref: 17-1
EMBLEM,RADIATOR COVER
€ 39.50
17-2
6866128E10D0J
ref: 17-2
EMBLEM,RADIATOR COVER
€ 89.00
18-1
6867128E10C2M
ref: 18-1
EMBLEM,RADIATOR COVER
€ 59.00
18-2
6867128E10D0J
ref: 18-2
EMBLEM,RADIATOR COVER
€ 48.50
19
0913606002
ref: 19
SCREW(6X12)
€ 2.50
20
1783126C00
ref: 20
LOUVER,RADIATOR
€ 17.00
21
0944011024
ref: 21
09440-11024-XC0
SPRING
€ 5.00
