CRANKSHAFT
RM250 1997 (V) USA (E03)

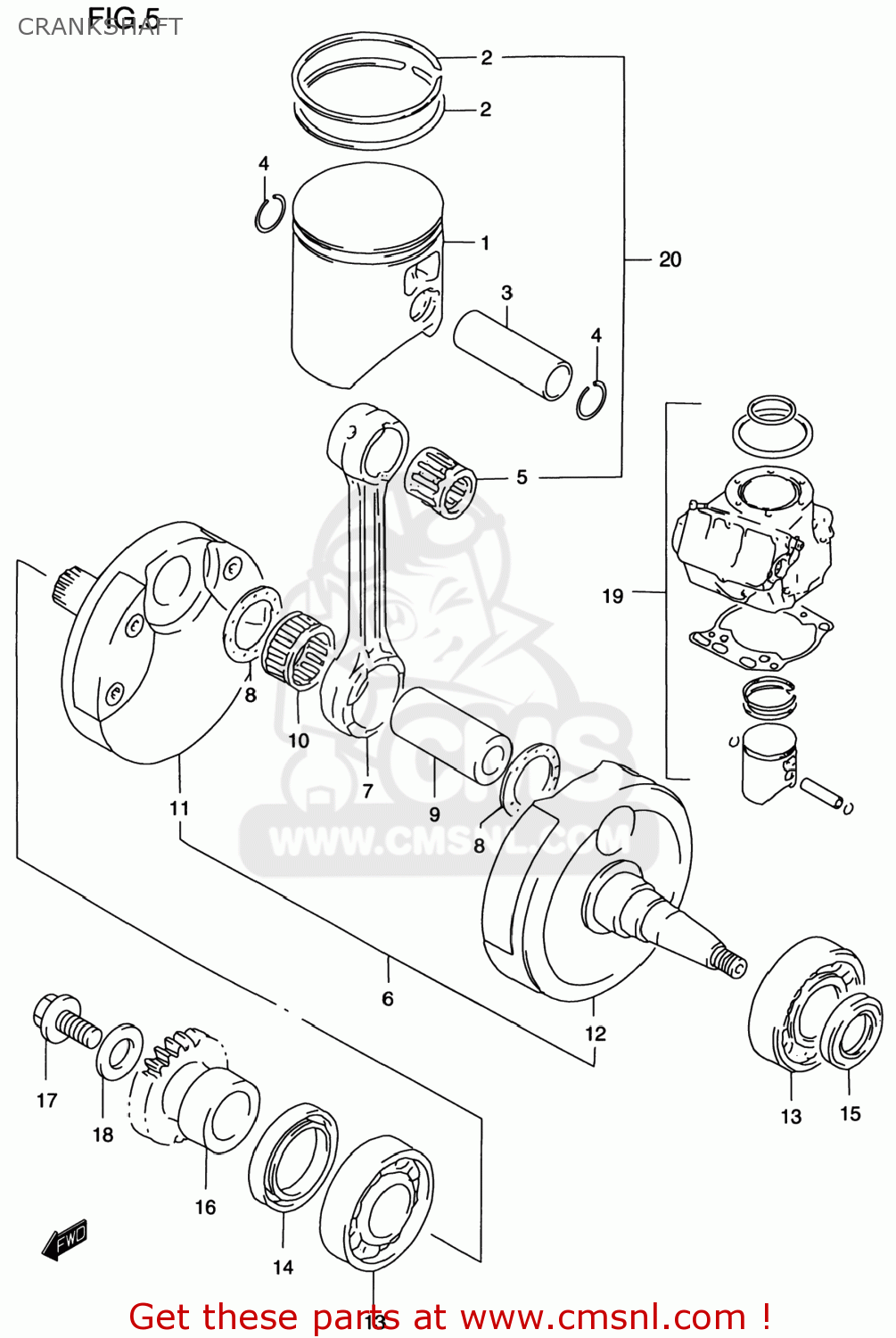

Crankshaft diagram RM250 1997 (V) USA (E03)
CRANKSHAFT RM250 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211037E000F0
ref: 1-1
12110-37E30-0F0
PISTON COMP
€ 101.00
1-2
1211037E020F0
ref: 1-2
12110-37E30-0F0
PISTON
€ 101.00
1-3
1211037E200F0
ref: 1-3
PISTON
€ 75.50
1-4
1211037E300F0
ref: 1-4
PISTON
€ 101.00
1-5
1211037E400F0
ref: 1-5
12110-37E42-0F0
PISTON COMP
€ 75.50
2-1
1214137E00
ref: 2-1
12141-37E02
RING,PISTON
€ 33.00
2-2
1214137E01
ref: 2-2
12141-37E02
RING,PISTON
€ 33.00
3
1215128C00
ref: 3
12151-37F00
PIN,PISTON
€ 13.00
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318016
ref: 5
BEARING(18X23X22)
€ 14.00
6-1
1220037E01
ref: 6-1
12200-37E40
CRANKSHAFT ASSEMBLY
€ 674.50
6-2
1220037E10
ref: 6-2
CRANKSHAFT ASSEMBLY
€ 466.50
6-3
1220037E30
ref: 6-3
12200-37E31
CRANKSHAFT ASSEMBLY
€ 667.00
6-4
1220037E40
ref: 6-4
CRANKSHAFT ASSY
€ 674.50
7
1216137E00
ref: 7
CONNECTING ROD
€ 97.50
8
0916024027
ref: 8
WASHER(24X38.5X1.5)
€ 19.50
9
1221105D00
ref: 9
PIN,CRANK
€ 33.00
10
0926324026
ref: 10
BEARING(24X30X20)
€ 62.50
11-1
1222037E01
ref: 11-1
12220-37E40
CRANKSHAFT,RIGHT
€ 281.00
11-2
1222037E10
ref: 11-2
CRANKSHAFT,R
€ 220.50
11-3
1222037E30
ref: 11-3
12220-37E31
CRANKSHAFT,RIGHT
€ 248.50
11-4
1222037E40
ref: 11-4
CRANKSHAFT COMP,RIGHT
€ 281.00
12-1
1226037E01
ref: 12-1
12260-37E40
CRANKSHAFT,LEFT
€ 239.00
12-2
1226037E10
ref: 12-2
CRANKSHAFT,L
€ 285.50
12-3
1226037E30
ref: 12-3
12260-37E31
CRANKSHAFT,LEFT
€ 306.00
12-4
1226037E40
ref: 12-4
CRANKSHAFT,L
€ 239.00
13
0926228027
ref: 13
BEARING(28X68X18)
€ 71.00
14
0928338021
ref: 14
SEAL,OIL(38X52X8)
€ 20.00
15
0928325099
ref: 15
SEAL,OIL(25X37X7)
€ 15.00
16-1
2111137E01
ref: 16-1
21111-37F00
GEAR,PRIMARY DRIVE (NT:
€ 90.00
16-2
2111137E02
ref: 16-2
21111-37F00
GEAR,PRIMARY DRIVE (NT:
€ 90.00
17
2114127C11
ref: 17
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
18
0916411004
ref: 18
WASHER
€ 6.00
19-1
1210137820
ref: 19-1
12101-37825
TOP END KIT,ENGINE
€ 124.50
19-2
1210137823
ref: 19-2
12101-37825
TOP END KIT,ENGINE
€ 124.50
19-3
1210137840
ref: 19-3
12101-37841
TOP END KIT,ENGINE
€ 142.00
19-4
1210137850
ref: 19-4
12101-37852
TOP END KIT,ENGINE
€ 107.00
19-5
1210137870
ref: 19-5
12101-37872
TOP END KIT,ENGINE
€ 193.50
20-1
1210137810
ref: 20-1
PISTON KIT
€ 125.50
20-2
1210137813
ref: 20-2
PISTONKIT
€ 125.50
20-3
1210137830
ref: 20-3
PISTON KIT
€ 136.00
20-4
1210137860
ref: 20-4
12101-37852
PISTON KIT
€ 125.50
20-5
1210137880
ref: 20-5
12101-37893
PISTONKIT 250Y
€ 136.00
