SEAT

RM250 1997 (V) USA (E03)

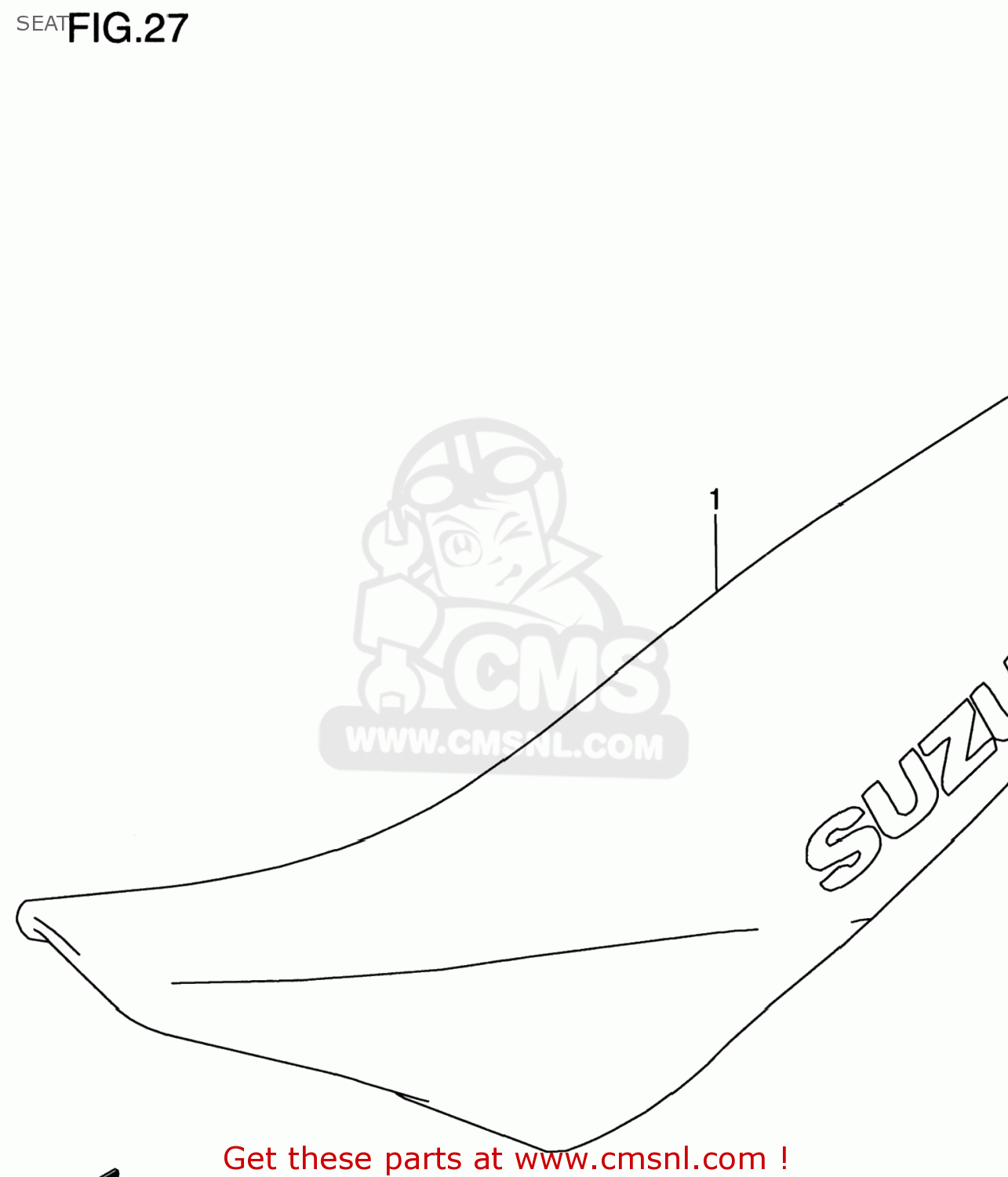

Seat diagram RM250 1997 (V) USA (E03)

SEAT RM250 1997 (V) USA (E03)

SEAT RM250 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510037E01F4A
ref: 1-1

SEAT SET

€ 317.00

1-2

4510037E10J4W
ref: 1-2

SEAT SET

€ 258.00

1-3

4510037E20L3S
ref: 1-3

SEAT SET

€ 203.00

1-4

4510037E30N6M
ref: 1-4

SEAT SET

€ 300.00

1-5

4510036E01F4A
ref: 1-5

SEAT SET

€ 300.00

1-6

4510036E10J4W
ref: 1-6

SEAT SET(10MM UP)

€ 300.00

1-7

4510036E20L3S
ref: 1-7

SEAT SET(10MM UP)

€ 297.50

1-8

4510036E30N6M
ref: 1-8

SEAT SET(10MM UP)

€ 296.00
