CLUTCH (MODEL K1/K2)
RM250 2002 (K2) USA (E03)

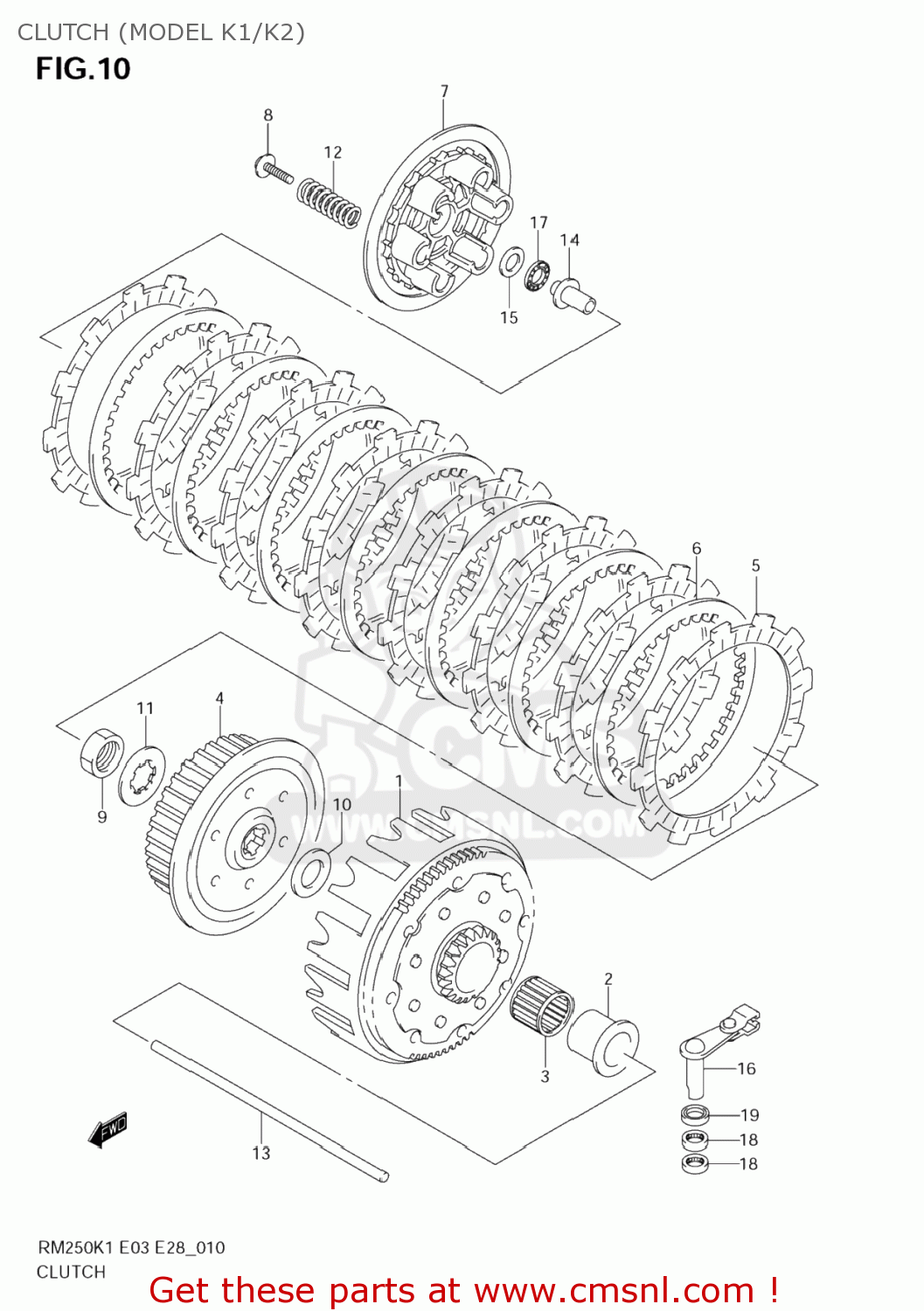

Clutch (model k1/k2) diagram RM250 2002 (K2) USA (E03)
CLUTCH (MODEL K1/K2) RM250 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120037E02
ref: 1
21200-37F10
GEAR ASSEMBLY,PRIMARY DRIVE
€ 349.50
2
2125137E00
ref: 2
21251-37E01
SPACER,PRIMARY DRIVEN
€ 37.00
3
0926329009
ref: 3
BEARING(29X34X27)
€ 25.00
4
2141037E10
ref: 4
21410-37810
HUB,CLUTCH SLEEVE
€ 70.50
5
2144137E20
ref: 5
PLATE,CLUTCH DRIVE (NAS)
€ 11.00
6
2145137F00
ref: 6
PLATE,CLUTCH DRIVEN (NAS)
€ 7.00
7
2146237E02
ref: 7
21462-37E03
DISC,CLUTCH PRESSURE
€ 55.50
8
0911605019
ref: 8
BOLT(5X25)
€ 3.00
9
0914018013
ref: 9
NUT
€ 9.00
10
0916022067
ref: 10
WASHER(22X38X2)
€ 10.50
11
0916722021
ref: 11
WASHER,LOCK
€ 2.00
12-1
0944018030
ref: 12-1
SPRING
€ 7.50
12-2
0944018029
ref: 12-2
SPRING
€ 6.00
13
2311037F00
ref: 13
ROD,CLUTCH PUSH
€ 12.00
14
2312137F00
ref: 14
PIECE,CLUTCH PUSH
€ 13.00
15
0918110186
ref: 15
SHIM(10X20X0.5)
€ 2.00
16-1
2320037E01
ref: 16-1
23200-37E02
CAMSHAFT,CLUTCH RELEASE
€ 51.00
16-2
2320037E02
ref: 16-2
CAMSHAFT,CLUTCH RELEASE
€ 51.00
17
0926310002
ref: 17
BEARING(10X22X2.8)
€ 8.50
18
0926312024
ref: 18
BEARING(12X16X10)
€ 11.00
19
0928512004
ref: 19
SEAL,OIL(12X19X5)
€ 9.00
