REAR SHOCK ABSORBER (MODEL K5)

RM250 2002 (K2) USA (E03)

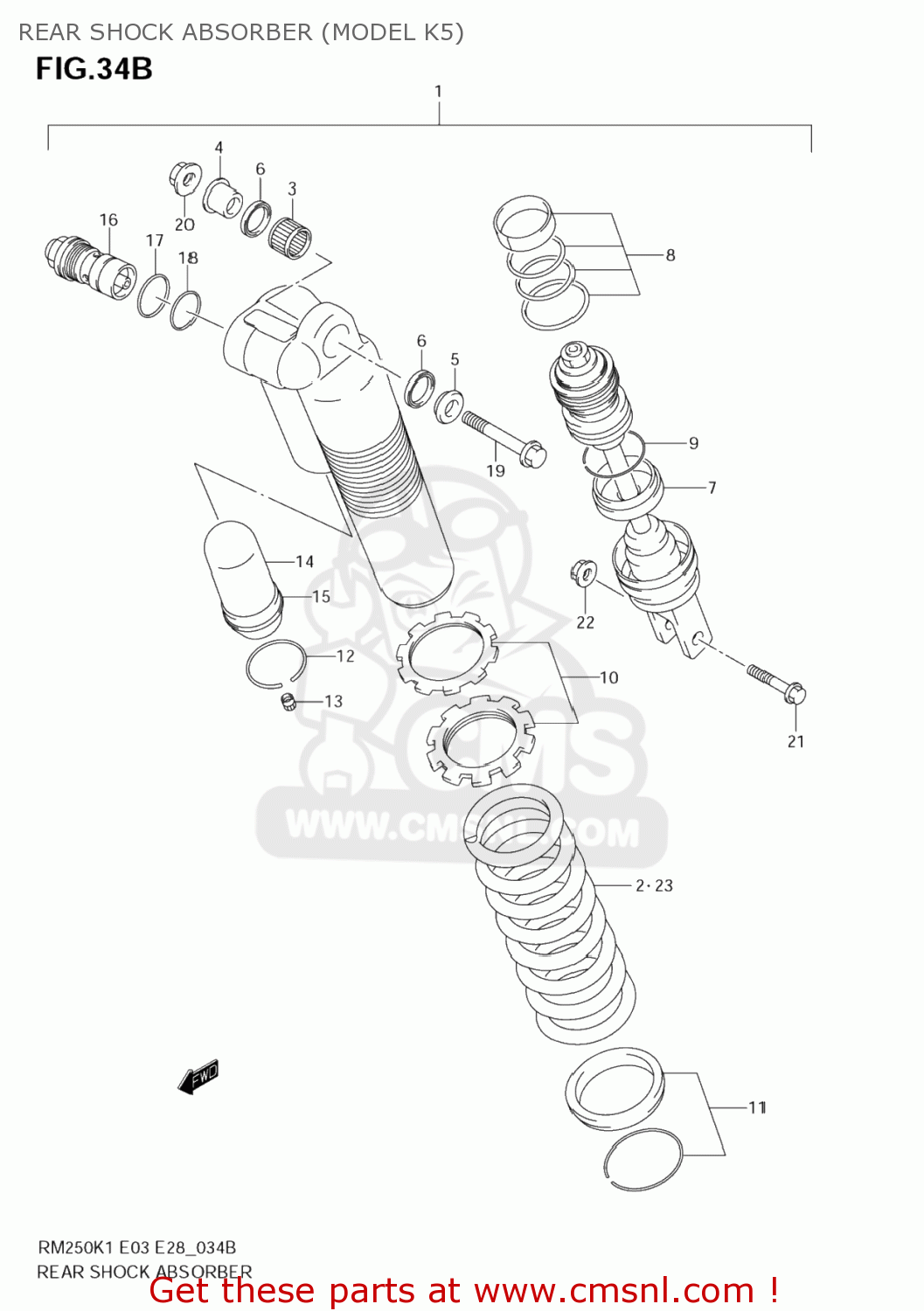

Rear shock absorber (model k5) diagram RM250 2002 (K2) USA (E03)

REAR SHOCK ABSORBER (MODEL K5) RM250 2002 (K2) USA (E03)

REAR SHOCK ABSORBER (MODEL K5) RM250 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6210037FE0163
ref: 1-1

ABSORBER ASSY,RR SHOCK(YELLOW)

€ 0.00

1-1

6210037FE0163
ref: 1-1

ABSORBER ASSY,RR SHOCK(YELLOW)

€ 0.00

1-2

6210037FD0163
ref: 1-2

ABSORBER ASSY,RR SHOCK(YELLOW)

€ 1,558.00

1-2

6210037FD0163
ref: 1-2

ABSORBER ASSY,RR SHOCK(YELLOW)

€ 1,558.00

2

6221137FF0
ref: 2

SPRING,RR(K=5.3)

€ 244.00

3

0926316033
ref: 3

BEARING(16X22X12)

€ 19.00

4

6268436F00
ref: 4

SPACER,UPPER BRG,R

€ 12.50

5

6268536F00
ref: 5

SPACER,UPPER BRG,L

€ 9.00

6

0928416005
ref: 6

SEAL,OIL(16X22X2.5)

€ 5.50

7

6212037FC0
ref: 7

ROD,PISTON

€ 630.00

8

6215036EB0
ref: 8

O RING SET

€ 46.50

9

6227936E80
ref: 9

RING,STOPPER

€ 5.50

10

6219036F00
ref: 10

ADJUSTER SET

€ 73.50

11

6222036F00
ref: 11

SPRING SEAT SET

€ 41.50

12

6227836E00
ref: 12

RING,STOPPER

€ 6.00

13

5129420400
ref: 13

CAP

€ 3.50

14

6227336F00
ref: 14

BLADDER

€ 48.00

15

6227536E00
ref: 15

CAP,CHAMBER

€ 30.00

16

6213037FC0
ref: 16

BOLT,PLUG

€ 117.50

17

6213128E00
ref: 17

O RING

€ 3.50

18

5117443D00
ref: 18

O RING,CTR BOLT UPR

€ 3.00

19

0910310360
ref: 19

BOLT(10X65)

€ 4.00

20

0915910058
ref: 20
09159-10115

NUT

€ 4.00

21

6222137F30
ref: 21

BOLT,RR SHOCK ABSORBER LWR

€ 4.00

22

0915910067
ref: 22

NUT

€ 4.00

23-1

6221137FA0
ref: 23-1

SPRING,RR(SOFT K=4.8)

€ 246.00

23-2

6221137FE0
ref: 23-2

SPRING,RR(K=5.1)

€ 244.00

23-3

6221137FG0
ref: 23-3

SPRING,RR(HARD K=5.5)

€ 246.00

23-4

6221137FD0
ref: 23-4

SPRING,RR(HARD K=5.6)

€ 246.00
