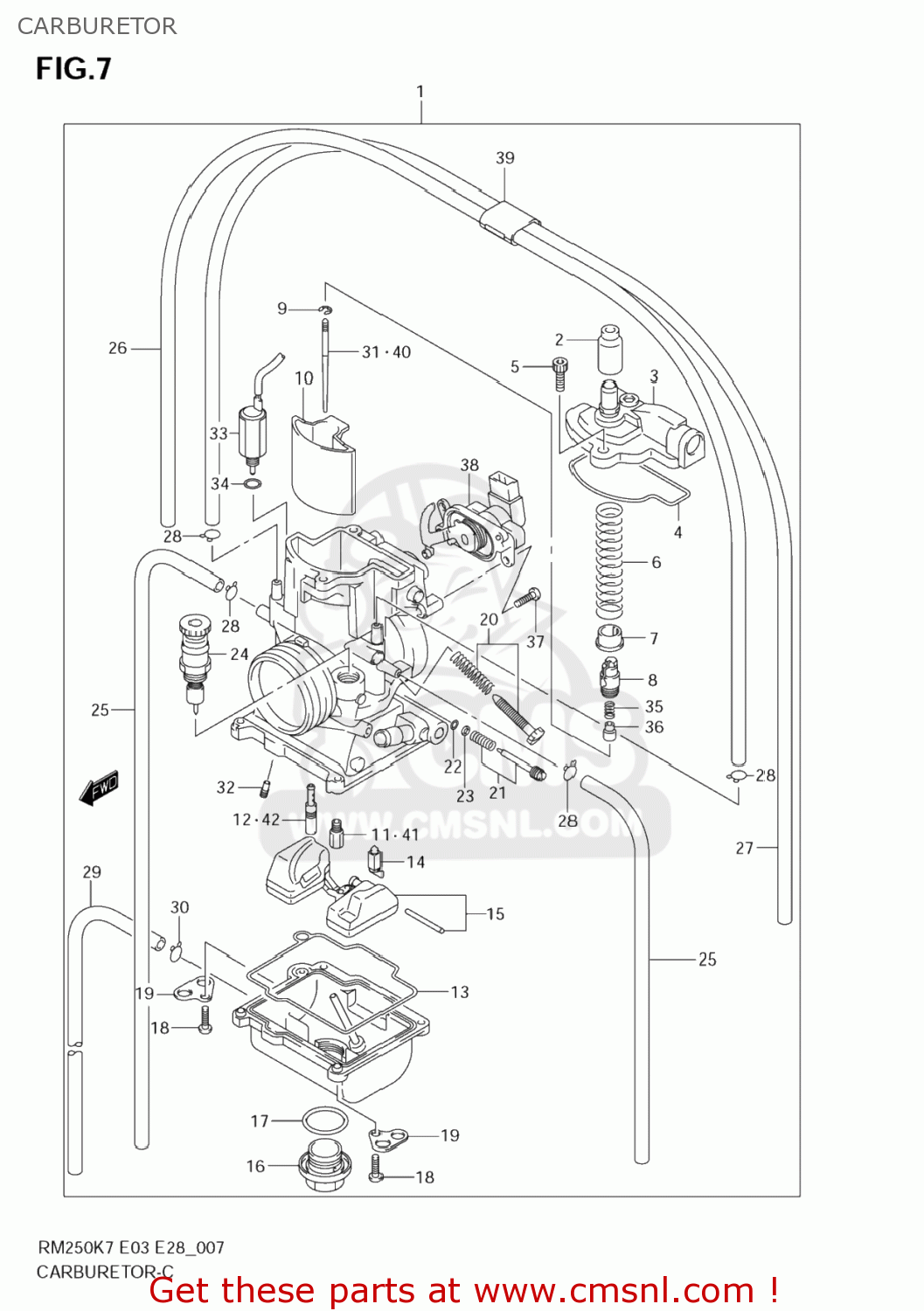

CARBURETOR

ref

part #

description

quantity

1-1

1320037FA0
ref: 1-1

CARBURETOR ASSY

€ 0.00

1-2

1320037FB0
ref: 1-2

CARBURETOR ASSY

€ 569.50

2

1368143D30
ref: 2

CAP,CARBURETOR

€ 7.50

3

1326137F80
ref: 3

TOP

€ 50.50

4

1326237F80
ref: 4

O RING

€ 6.50

5

1326237F00
ref: 5

SCREW

€ 5.50

6

1357337F00
ref: 6

SPRING,THROTTLE VALVE

€ 12.00

7

1342443D30
ref: 7

COLLAR,THROTTLE VALVE

€ 5.00

8

1358137F80
ref: 8

HOLDER,CABLE

€ 18.50

9

1339428E00
ref: 9

CLIP,NEEDLE

€ 3.50

10

1355137F80
ref: 10

VALVE,PISTON

€ 169.50

11-1

0949133010
ref: 11-1

JET,MAIN(168)

€ 12.50

11-2

0949134011
ref: 11-2

JET,MAIN(172)

€ 12.50

12-1

0949248013
ref: 12-1

JET,SLOW(48)

€ 9.50

12-2

0949250023
ref: 12-2

JET,SLOW(50)

€ 11.50

13

1369644E00
ref: 13

GASKET,FLOAT CAHMBER

€ 11.00

14

1337043D30
ref: 14

VALVE SET,FLOAT

€ 40.50

15

1324036E20
ref: 15

FLOAT SET

€ 52.00

16

1324728E00
ref: 16

BOLT,DRAIN

€ 15.00

17

1324628E00
ref: 17

O RING

€ 3.50

18

1360226E10
ref: 18

SCREW

€ 6.00

19

1369336E00
ref: 19

PLATE

€ 4.50

20

1327043D30
ref: 20

SCREW SET,STOP

€ 14.50

21

1328043D30
ref: 21

SCREW SET,AIR

€ 18.50

22

1329526E00
ref: 22

O RING

€ 4.50

23

1329126E00
ref: 23

WASHER

€ 3.00

24

1341043D30
ref: 24

STARTER VALVE

€ 64.50

25

1368636E00
ref: 25

HOSE(4X7X620)

€ 7.50

25

1368636E00
ref: 25

HOSE(4X7X620)

€ 7.50

26

1368636E00
ref: 26

HOSE(4X7X620)

€ 7.50

27

1368636E00
ref: 27

HOSE(4X7X620)

€ 7.50

28

0940106101
ref: 28

CLIP

€ 2.50

29

0935135653600
ref: 29

HOSE(3.5X6.5X600)

€ 5.50

30

0940105402
ref: 30
09401-05402-XC0

CLIP

€ 1.00

31-1

1338337FE0
ref: 31-1

NEEDLE,JET(NECJ)

€ 15.50

31-2

1338337FK0
ref: 31-2

NEEDLE,JET(NEDH)

€ 16.00

32-1

1334537F00
ref: 32-1

JET,POWER(45)

€ 12.50

32-2

0949255019
ref: 32-2

JET,POWER(55)

€ 13.00

33

1316037E01
ref: 33

SOLENOID ASSY

€ 105.50

34

1345337E00
ref: 34

O RING

€ 4.00

35

1358237F80
ref: 35

SPRING

€ 3.50

36

1358337F80
ref: 36

COLLAR

€ 4.50

37

1360237F00
ref: 37

SCREW

€ 2.50

38

1358037F80
ref: 38

SENSOR ASSY

€ 236.50

39

1345137F00
ref: 39

CLIP

€ 5.00

40-1

1338337FA0
ref: 40-1

NEEDLE,JET(NECF)

€ 15.00

40-10

1338337FK0
ref: 40-10

NEEDLE,JET(NEDH)

€ 16.00

40-11

1338337FL0
ref: 40-11

NEEDLE,JET(NEDW)

€ 15.50

40-12

1338337FM0
ref: 40-12

NEEDLE,JET(NEDJ)

€ 16.00

40-13

1338337FN0
ref: 40-13

NEEDLE,JET(NEDK)

€ 15.00

40-14

1338337FP0
ref: 40-14

NEEDLE,JET(NEDL)

€ 15.00

40-2

1338337FB0
ref: 40-2

NEEDLE,JET(NECG)

€ 16.00

40-3

1338337FC0
ref: 40-3

NEEDLE,JET(NECH)

€ 16.00

40-4

1338337FD0
ref: 40-4

NEEDLE,JET(NECW)

€ 15.50

40-5

1338337FE0
ref: 40-5

NEEDLE,JET(NECJ)

€ 15.50

40-6

1338337FF0
ref: 40-6

NEEDLE,JET(NECK)

€ 16.00

40-7

1338337FG0
ref: 40-7

NEEDLE,JET(NECL)

€ 15.00

40-8

1338337FH0
ref: 40-8

NEEDLE,JET(NEDF)

€ 15.00

40-9

1338337FJ0
ref: 40-9

NEEDLE,JET(NEDG)

€ 15.00

41-1

0949130018
ref: 41-1

JET,MAIN(150)

€ 13.00

41-10

0949134011
ref: 41-10

JET,MAIN(172)

€ 12.50

41-11

0949135009
ref: 41-11

JET,MAIN(175)

€ 15.50

41-12

0949135010
ref: 41-12

JET,MAIN(178)

€ 15.50

41-13

0949136008
ref: 41-13

JET,MAIN(180)

€ 15.50

41-14

0949137008
ref: 41-14

JET,MAIN(185)

€ 15.50

41-15

0949138011
ref: 41-15

JET,MAIN(190)

€ 15.50

41-16

0949139001
ref: 41-16

JET,MAIN(195)

€ 12.50

41-17

0949140013
ref: 41-17

JET,MAIN(200)

€ 12.50

41-18

0949141001
ref: 41-18

JET,MAIN(205)

€ 8.50

41-19

0949142006
ref: 41-19

JET,MAIN(210)

€ 8.50

41-2

0949130019
ref: 41-2

JET,MAIN(152)

€ 13.00

41-3

0949131012
ref: 41-3

JET,MAIN(155)

€ 13.00

41-4

0949131013
ref: 41-4

JET,MAIN(158)

€ 13.00

41-5

0949132010
ref: 41-5

JET,MAIN(160)

€ 13.00

41-6

0949132011
ref: 41-6

JET,MAIN(162)

€ 13.00

41-7

0949133009
ref: 41-7

JET,MAIN(165)

€ 9.00

41-8

0949133010
ref: 41-8

JET,MAIN(168)

€ 12.50

41-9

0949134010
ref: 41-9

JET,MAIN(170)

€ 12.50

42-1

0949235019
ref: 42-1

JET,SLOW(35)

€ 13.00

42-10

0949260016
ref: 42-10

JET,SLOW(60)

€ 12.50

42-2

0949240022
ref: 42-2

JET,SLOW(40)

€ 15.50

42-3

0949242019
ref: 42-3

JET,SLOW(42)

€ 12.50

42-4

0949245032
ref: 42-4

JET,PILOT(45)

€ 9.00

42-5

0949248013
ref: 42-5

JET,SLOW(48)

€ 9.50

42-6

0949250023
ref: 42-6

JET,SLOW(50)

€ 11.50

42-7

0949252011
ref: 42-7

JET,SLOW(52)

€ 11.50

42-8

0949255017
ref: 42-8

JET,SLOW(55)

€ 11.50

42-9

0949258001
ref: 42-9

JET,PILOT(58)

€ 9.50

all assemblies
