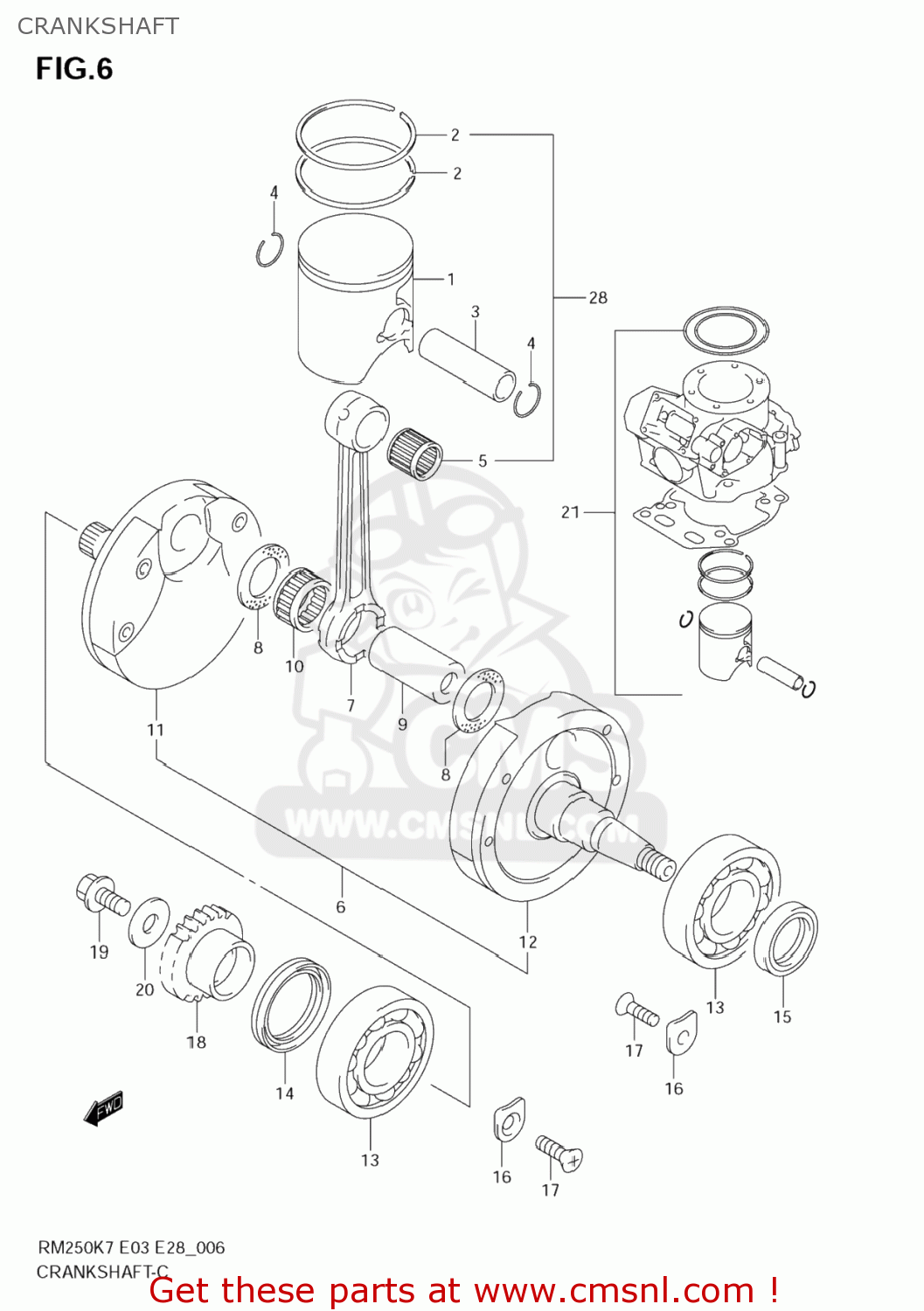

CRANKSHAFT

ref

part #

description

quantity

1

1211037F300F0
ref: 1

PISTON

€ 100.50

2

1214137F00
ref: 2

RING,PISTON

€ 34.50

3

1215128C00
ref: 3
12151-37F00

PIN,PISTON

€ 13.00

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318031
ref: 5

BEARING(18X23X22)

€ 21.00

6

1220037F40
ref: 6

CRANKSHAFT ASSY

€ 858.00

7

1216137F20
ref: 7

CONNECTING ROD

€ 106.00

8

0916024033
ref: 8

WASHER(24X39X1)

€ 14.50

9

1221037F20
ref: 9

PIN,CRANK

€ 34.00

10

0926324026
ref: 10

BEARING(24X30X20)

€ 62.50

11

1222037F40
ref: 11

CRANKSHAFT,R

€ 382.50

12

1226037F40
ref: 12

CRANKSHAFT,L

€ 250.50

13

0926228044
ref: 13

BEARING(28X68X18)

€ 73.00

14

0928328025
ref: 14

SEAL,OIL(28X38X19)

€ 16.50

15

0928325099
ref: 15

SEAL,OIL(25X37X7)

€ 15.00

16

2474137F00
ref: 16

RETAINER,CRANKSHAFT BEARING

€ 2.50

17

021220612B
ref: 17

SCREW

€ 3.00

18

2111137F20
ref: 18

GEAR,PRIMARY DRIVE

€ 58.00

19

0910310339
ref: 19

BOLT(10X20)

€ 11.50

20

0916411004
ref: 20

WASHER

€ 6.00

21

1210237840
ref: 21

TOP END KIT,ENGINE

€ 249.50

22

1114737F00
ref: 22

O RING,CYLINDER HEAD NO.1

€ 12.50

23

1114837F00
ref: 23

O RING,CYLINDER HEAD NO.2

€ 7.00

24

1124137F20
ref: 24

GASKET,CYLINDER (NAS)

€ 7.50

25

1211037F300F0
ref: 25

PISTON

€ 100.50

26

1214137F00
ref: 26

RING,PISTON

€ 34.50

27

0938118002
ref: 27

CIRCLIP

€ 1.50

28

1211037830
ref: 28

PISTON KIT

€ 176.00

29

1211037F300F0
ref: 29

PISTON

€ 100.50

30

1214137F00
ref: 30

RING,PISTON

€ 34.50

31

1215128C00
ref: 31
12151-37F00

PIN,PISTON

€ 13.00

32

0926318031
ref: 32

BEARING(18X23X22)

€ 21.00

33

0938118002
ref: 33

CIRCLIP

€ 1.50
